Wire To Wire Connector
- Electronic Parts > Lighting Connector > Wire To Wire Connector

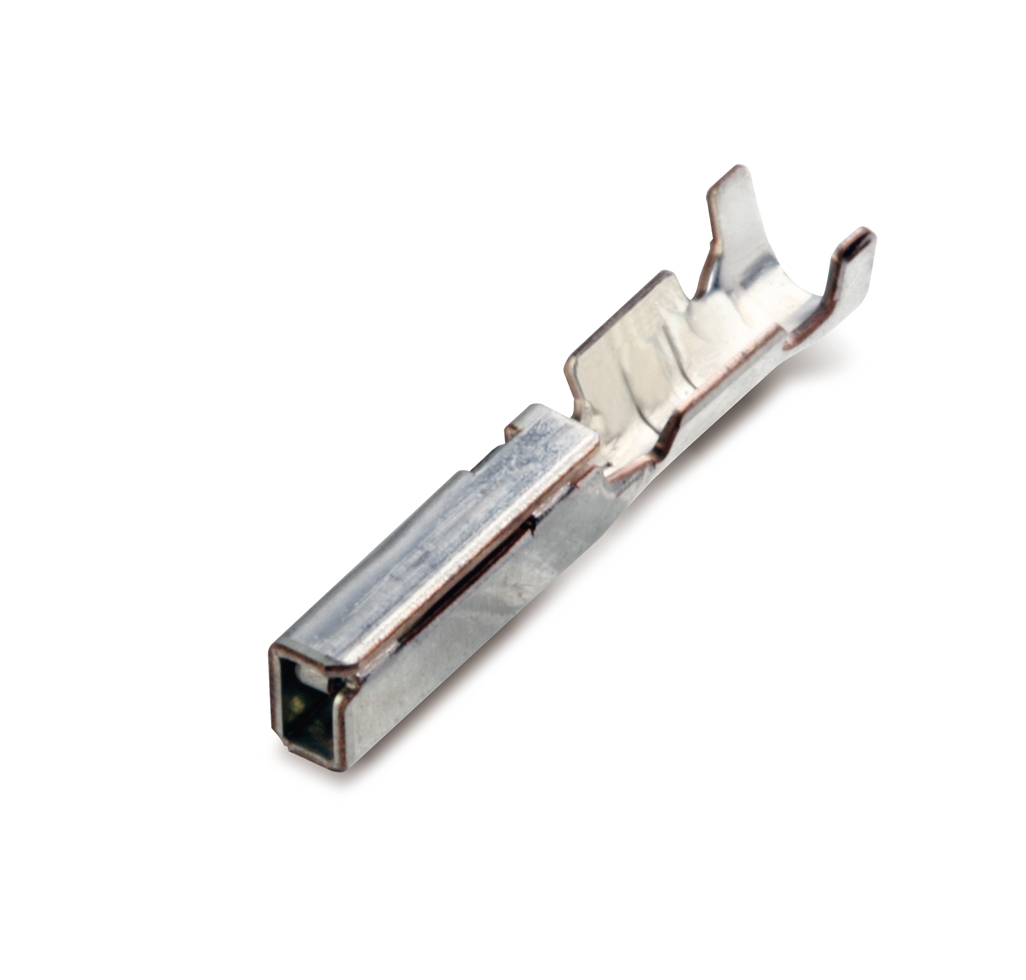

- Part Number :
- K500142
- Series :
- Lighting Connector SERIES
General Feature
- Series
- Lighting Connector SERIES
- Dimensions
- 11.7*1.4*2.2
- Material Type
- Phosphor Bronze
Physical Feature
- Net Weight(g)
- 0.13
- Plating
- Pre-Tin

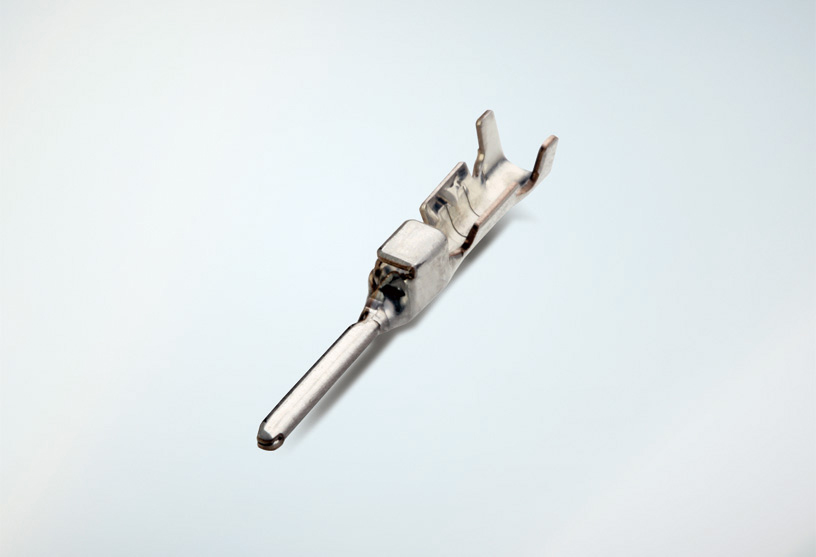

- Mating Terminal
- k500141

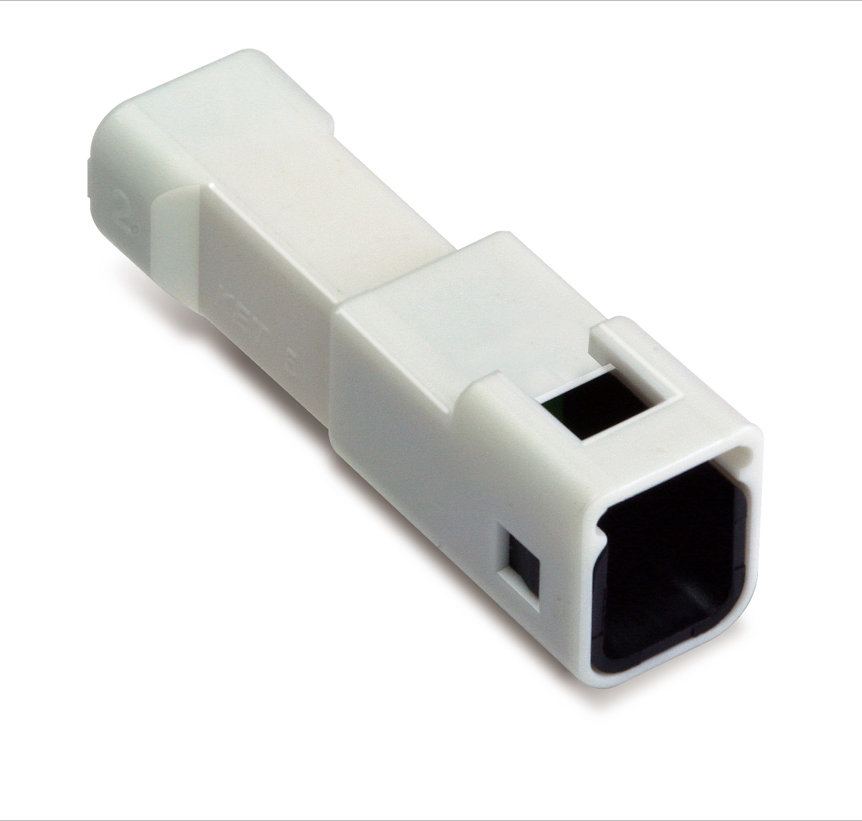

- Mating Connector
- k500139-02
- Sealed
- YES
Electrical Feature
- Insulation Range
- 1.4-1.74
- Contact Resistance
- 5mΩ Max
Certification
- Certified
- UL
