Wire To Wire Connector
- Electronic Parts > Home Appliance Connector > Wire To Wire Connector
- Part Number :

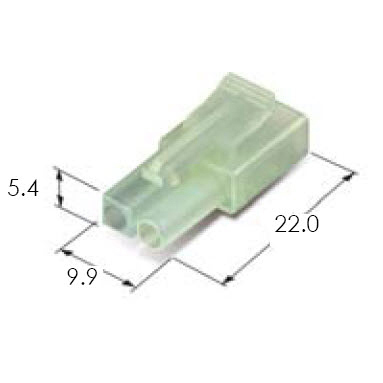

- MG610024T-002
- Series :
- Φ1.3/Φ2.0 SERIES
- Series
- Φ1.3/Φ2.0 SERIES
- Material Type
- PET+PC
- Dimensions
- 22.0*9.9*5.4
- Number of Poles
- 2
- Pitch(mm)
- 4.5
- Color
- Natural
- Sealed
- NO
- Mating Terminal
- ST730291-3, ST730292-3
- Mating Connector

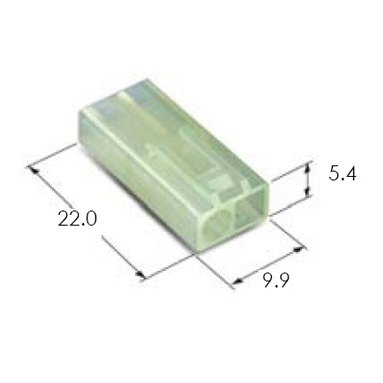

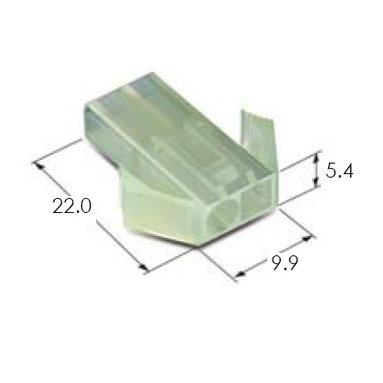

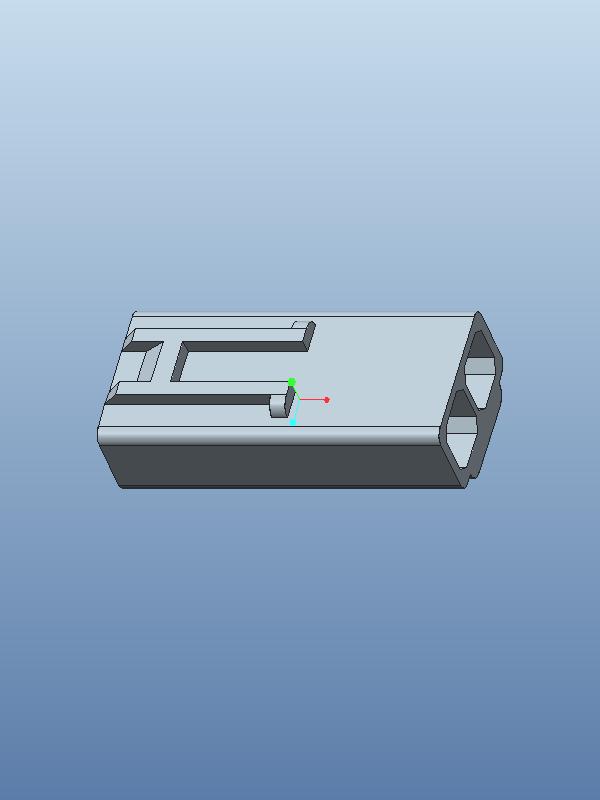

- MG620023c-002, MG620440t-002
- Operating Temperature
- -40℃ ~ 105℃
- GWIT
- GWIT(750˚)
- Flame Rating
- V2
- Terminal Transmits(A)
- 10
- Rated Voltage
- 300v,(ac/dc)
-
