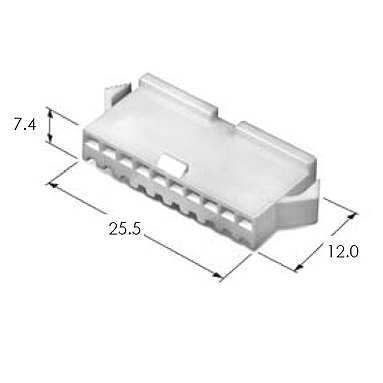

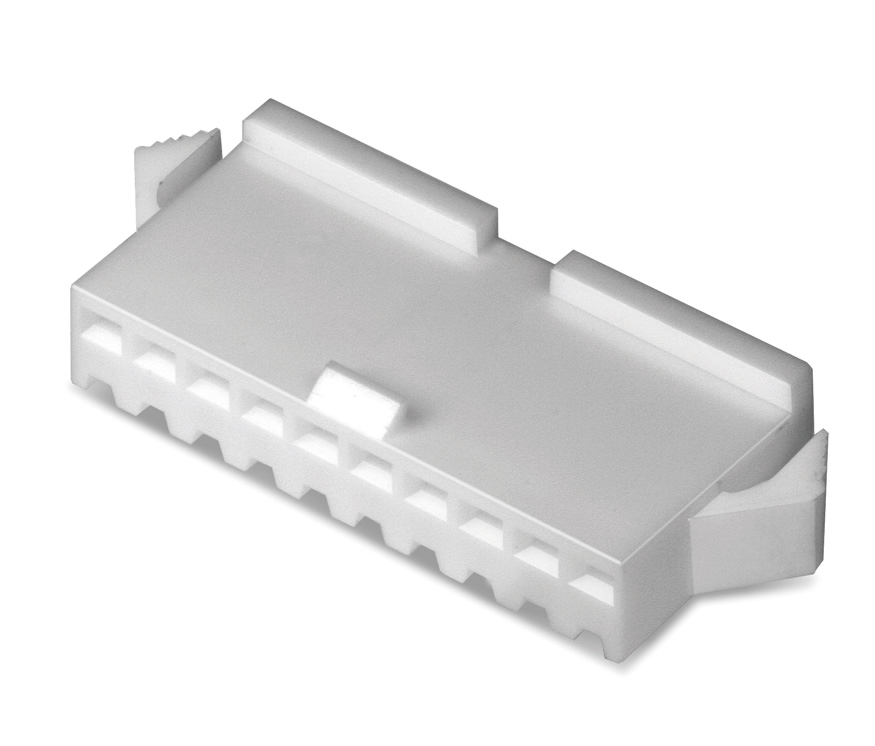

1006 10F HOUSING

1006 10F HOUSING

Part Number :: MG610144T-010

Series :: 1006 SERIES

첨부파일

기술 문의 품질 문의 구매 문의

General Feature

Series: 1006 SERIES

Material Type: PET+PC

Dimensions: 12.0*23.5*7.4

Physical Feature

Number of Poles: 10

Pitch(mm): 2.5

Color: Natural

Sealed: NO

Mating Terminal: ST730335-3, ST730910-3

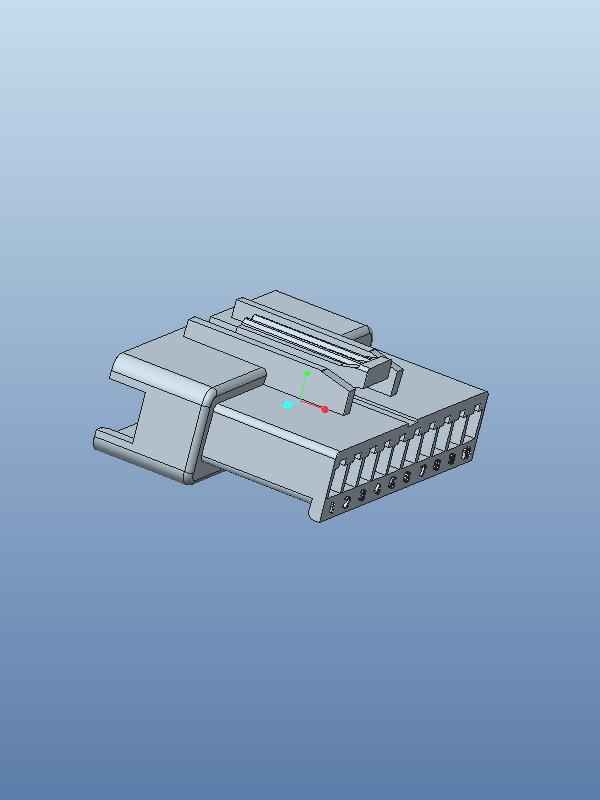

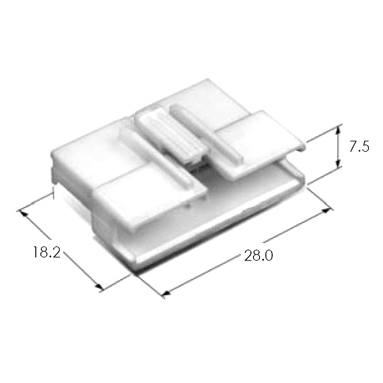

Mating Connector: MG620145t-010

Operating Temperature: -40℃ ~ 105℃

GWIT: GWIT(750˚)

Flame Rating: V0

Electrical Feature

Terminal Transmits(A): 3

Rated Voltage: 300v(ac/dc)

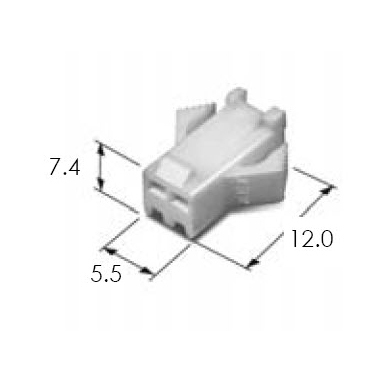

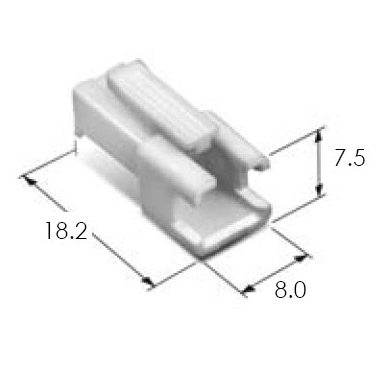

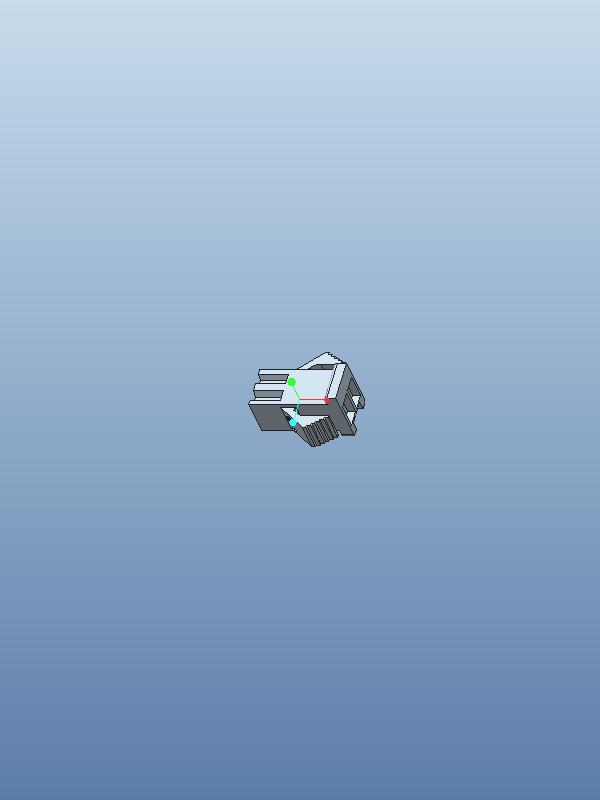

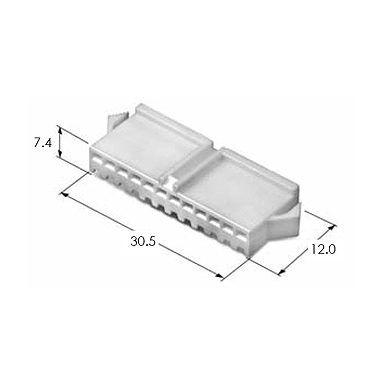

Series Product

/

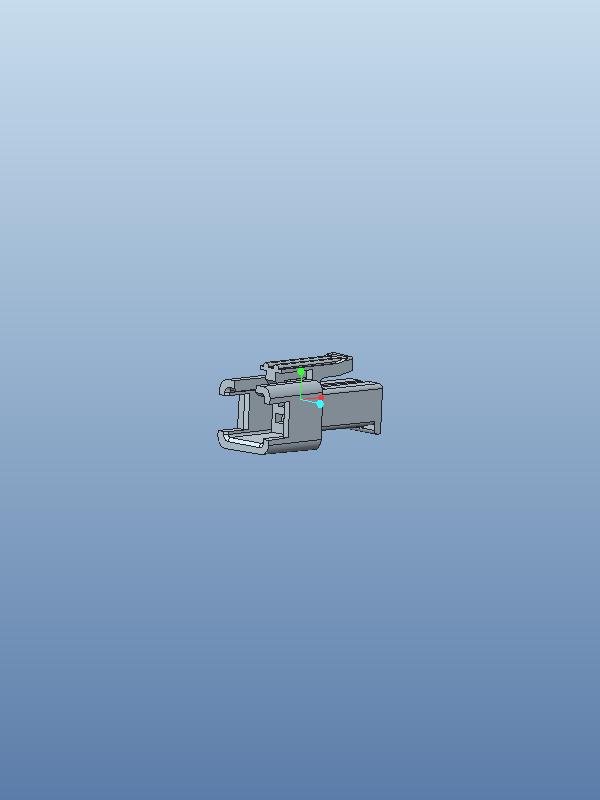

Mating Product

/
