1806 9F HOUSING

1806 9F HOUSING

Part Number :: MG610234T-009

Series :: 1806 SERIES

첨부파일

기술 문의 품질 문의 구매 문의

General Feature

Series: 1806 SERIES

Material Type: PET+PC

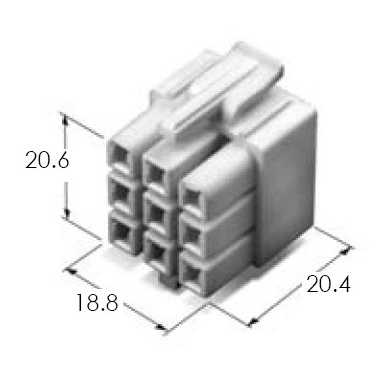

Dimensions: 20.4*18.8*20.6

Physical Feature

Number of Poles: 9

Pitch(mm): 6

Color: Natural

Sealed: NO

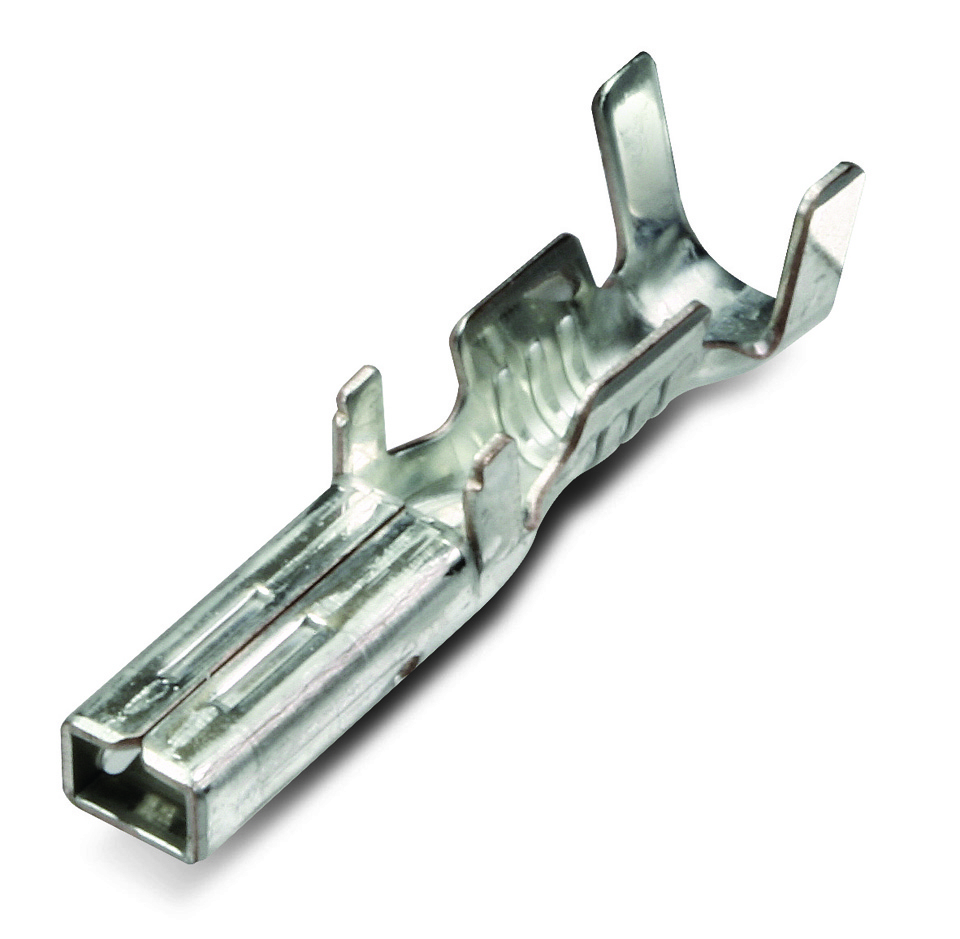

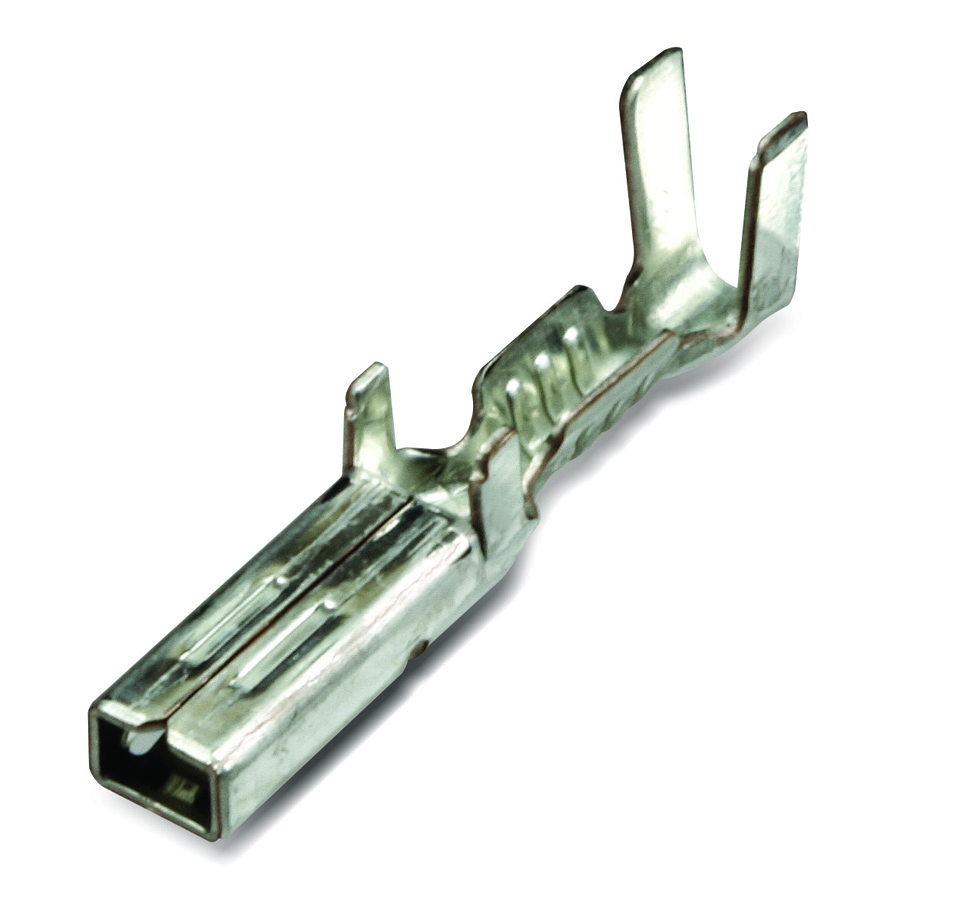

Mating Terminal: ST730459-3, ST731228-3, ST730460-3, ST731131-3, ST730461-3, ST730462-3

Mating Connector: h620235t-009, h620431t-009

Operating Temperature: -40℃ ~ 105℃

GWIT: GWIT(750˚)

Mating Tab Width(in): .070

Flame Rating: V0

Electrical Feature

Terminal Transmits(A): 15

Rated Voltage: 300v(ac/dc)
