Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG610240
- Series :
- Automotive Connector(ETC)
General Feature
- Series
- Automotive Connector(ETC)
- Material Type
- PBT
- Dimensions
- 29.2*54.2*31.4
Physical Feature
- Sealed
- NO
- Color
- Natural
- Primary Locking Type
- HSG Lance
- Number of Poles
- 20
- TPA
- YES
- Connector Position Assurance
- NO
- Mating Terminal
- ST730409-3, ST730410-3

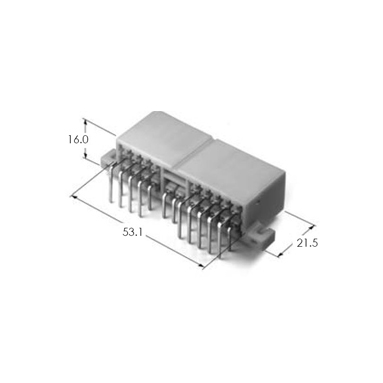

- Mating Connector
- MG640242
- Pitch(mm)
- 4
- Mating Tab Width(in)
- .090
Electrical Feature
- Wire Range
- AVSS 0.3~0.85,AVSS 0.85~1.25
- Insulation Resistance
- DC 500V 100M Ω MIN
- Contact Resistance
- 3mΩ Max
- Terminal Transmits(A)
- 10/28.5/20/42/60
