Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG610346-5
- Series :
- SWP SERIES
General Feature
- Series
- SWP SERIES
- Material Type
- PBT
- Dimensions
- 32.2*29.0*28.7
Physical Feature
- Sealed
- YES
- Color
- Black
- Primary Locking Type
- HSG Lance
- Number of Poles
- 12
- TPA
- YES
- Connector Position Assurance
- NO

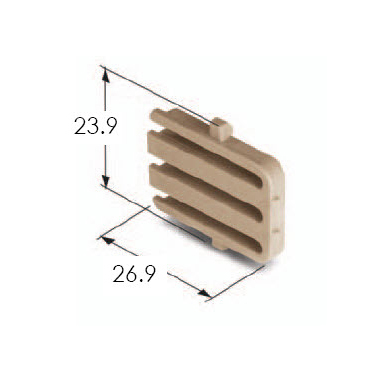

- Mating Rear Holder
- MG630349-7
- Mating Terminal
- ST730495-3, ST730496-3
- Mating Connector
- MG640348
- Pitch(mm)
- 6.2
- Mating Tab Width(in)
- .070
Electrical Feature
- Wire Range
- AVS*CAVS) 0.3~0.85,AVS(CAVS) 1.25~2.0
- Insulation Resistance
- DC 500V 250MΩ MIN
- Contact Resistance
- 3mΩ MAX
- Terminal Transmits(A)
- 9
