Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG610761-4
- Series :
- DIAGNOSIS SERIES
General Feature
- Series
- DIAGNOSIS SERIES
- Material Type
- PBT
- Dimensions
- 69.5*27.7*21.4
Physical Feature
- Sealed
- NO
- Color
- Gray
- Primary Locking Type
- HSG Lance
- Number of Poles
- 16
- TPA
- YES
- Connector Position Assurance
- NO

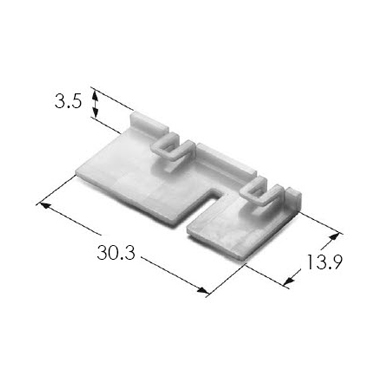

- Mating Rear Holder
- MG630762
- Mating Terminal
- ST730618-3
- Pitch(mm)
- 4
- Mating Tab Width(in)
- .070
Electrical Feature
- Wire Range
- AVSS 0.3 ~ 0.5
- Insulation Resistance
- DC 500V 100MΩ MIN
- Contact Resistance
- 3mΩ MAX
- Terminal Transmits(A)
- 9
