SDLII 8F HOUSING(H)

SDLII 8F HOUSING(H)

Part Number :: MG610896-5

Series :: SDL II (070 II) SERIES

첨부파일

기술 문의 품질 문의 구매 문의

General Feature

Series: SDL II (070 II) SERIES

Material Type: PBT

Dimensions: 22.5*27.6*11.3

Physical Feature

Sealed: NO

Color: Black

Primary Locking Type: HSG Lance

Number of Poles: 8

TPA: YES

Connector Position Assurance: NO

Mating Rear Holder: MG630897

Mating Terminal: ST730497-3, ST730498-3

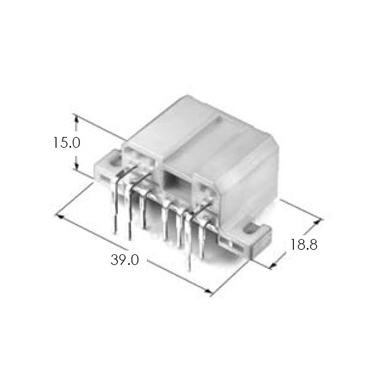

Mating Connector: MG640861

Pitch(mm): 3.5

Mating Tab Width(in): .070

Electrical Feature

Wire Range: SDL:AVS 0.3~0.85,AVS 1.25,AVSS 2.0

Insulation Resistance: DC 500V 100MΩ MIN

Contact Resistance: 3mΩ MAX

Terminal Transmits(A): 9
