110 2F HOUSING(58T)
110 2F HOUSING(58T)
Part Number :
MG611251-5
Series :
110 SERIES
첨부파일
General Feature
Series
110 SERIES
Material Type
PA66
Dimensions
15.4*29.6*10.6
Physical Feature
Sealed
NO
Color
Black
Primary Locking Type
HSG Lance
Number of Poles
2
TPA
NO
Connector Position Assurance
NO
Mating Terminal
ST730698-3, ST730699-3

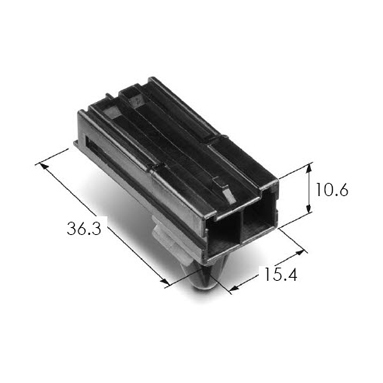

Mating Connector
MG621252, MG621843
Pitch(mm)
6
Mating Tab Width(in)
.110
Electrical Feature
Wire Range
AVSS 0.3~0.5,AVSS 0.85~20
Insulation Resistance
DC 500V 100MΩ MIN
Contact Resistance
3mΩ MAX
Terminal Transmits(A)
10
