040 WP 2F HOUSING(RK-02FBR)

040 WP 2F HOUSING(RK-02FBR)

Part Number :: MG613214-7

Series :: 040 SERIES

첨부파일

기술 문의 품질 문의 구매 문의

General Feature

Series: 040 SERIES

Material Type: PBT

Dimensions: 7.5*25.65*8.7

Physical Feature

Sealed: YES

Color: Brown

Primary Locking Type: HSG Lance

Number of Poles: 2

TPA: YES

Connector Position Assurance: NO

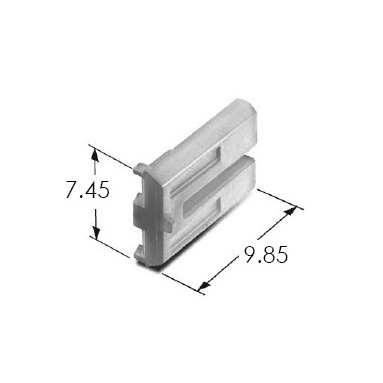

Mating Rear Holder: MG633215

Mating Terminal: ST730924-3, ST730925-3

Mating Connector: MG643219

Pitch(mm): 3.9

Mating Tab Width(in): .040

Electrical Feature

Wire Range: 040:CAVS 0.3~0.5,CAVUS 0.3~0.5,CAVS 0.85,CAVUS 0.85

Insulation Resistance: DC 500V 100MΩ MIN

Contact Resistance: 5mΩ MAX

Terminal Transmits(A): 5
