Wire To Wire Connector

Automotive Connectors > Wire To Wire Connector

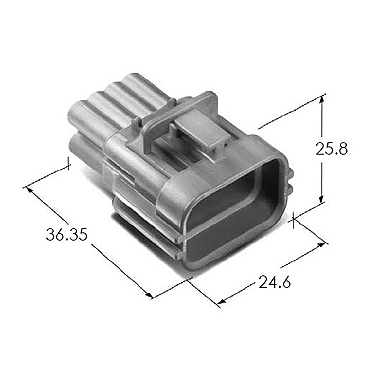

RK 08MG HS’G

RK 08MG HS’G

Part Number :: MG613407

Series :: 040 SERIES

첨부파일

기술 문의 품질 문의 구매 문의

General Feature

Series: 040 SERIES

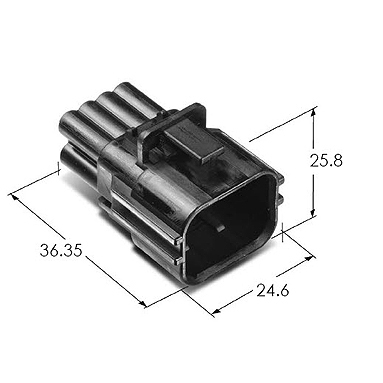

Dimensions: 22.0*36.35*25.8

Physical Feature

Sealed: YES

Color: Natural

Primary Locking Type: HSG Lance

Number of Poles: 8

TPA: YES

Connector Position Assurance: NO

Pitch(mm): 3.9

Mating Tab Width(in): .040

Electrical Feature

Wire Range: CAVS(CAVUS)0.3~0.5,CAVS(CAVUS)0.85

Insulation Resistance: DC 500V 100MΩ MIN

Contact Resistance: 5mΩ MAX

Terminal Transmits(A): 5

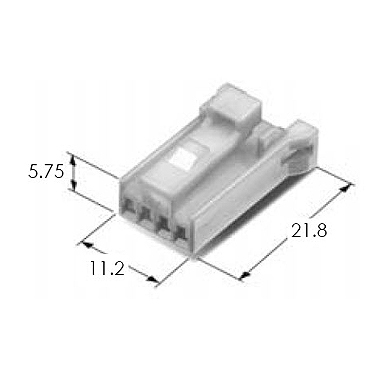

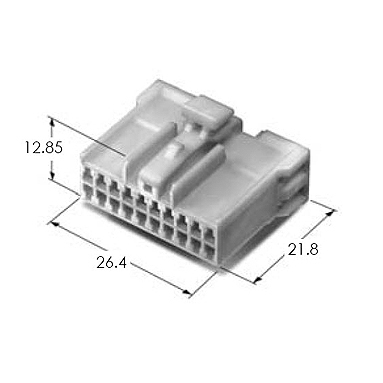

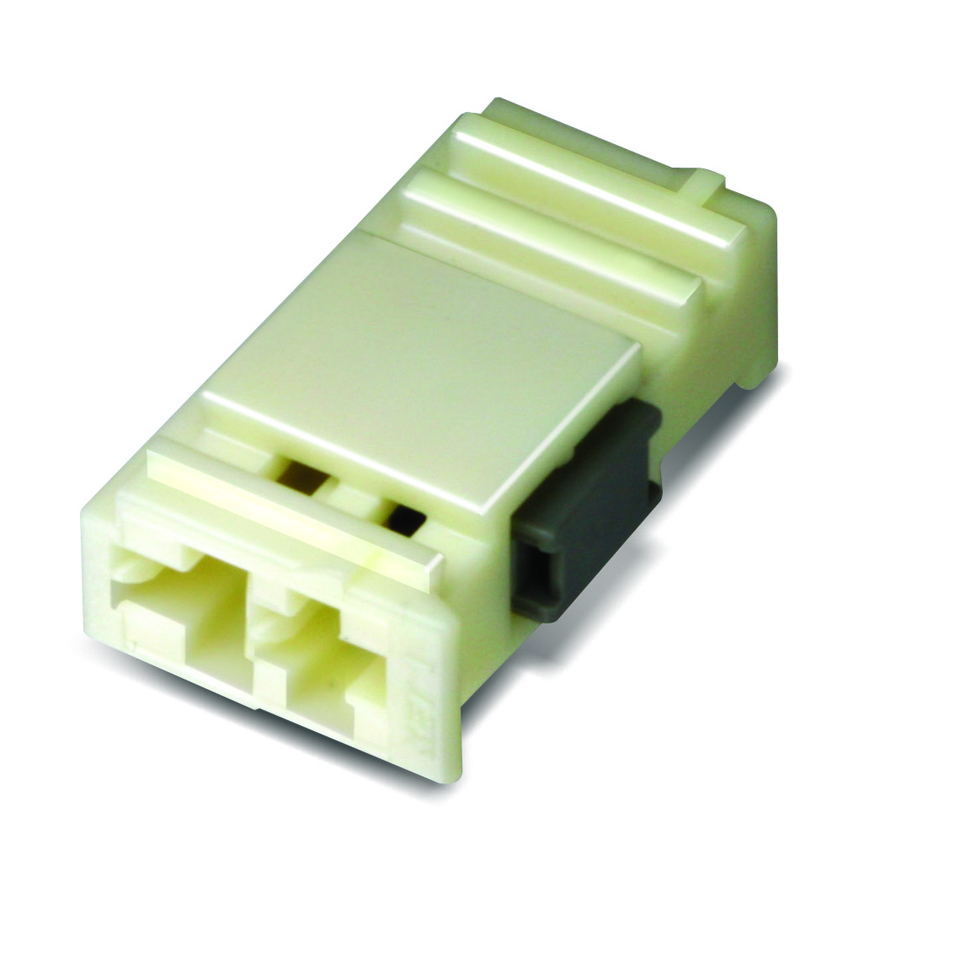

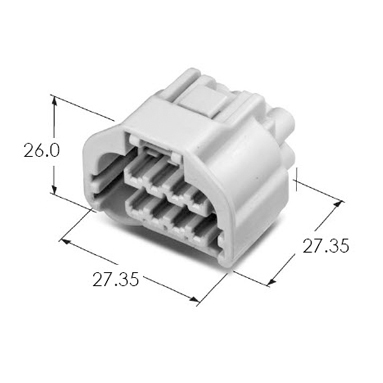

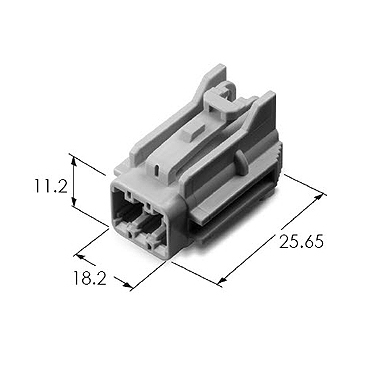

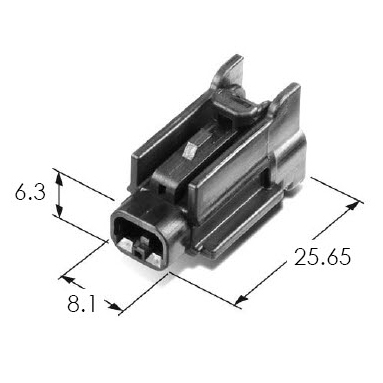

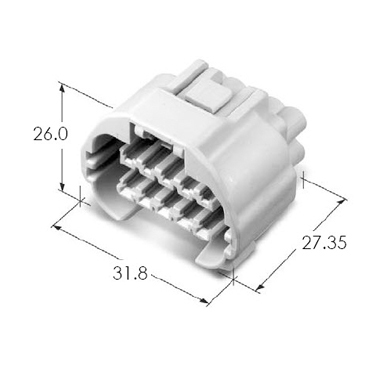

Series Product

/
