SP WP 6F_HOUSING(58V)

SP WP 6F_HOUSING(58V)

Part Number :: MG614130-4

Series :: 050 SERIES

첨부파일

기술 문의 품질 문의 구매 문의

General Feature

Series: 050 SERIES

Material Type: PBT

Dimensions: 14.9*22.5*14.9

Physical Feature

Sealed: YES

Color: Gray

Primary Locking Type: HSG Lance

Number of Poles: 6

TPA: YES

Connector Position Assurance: NO

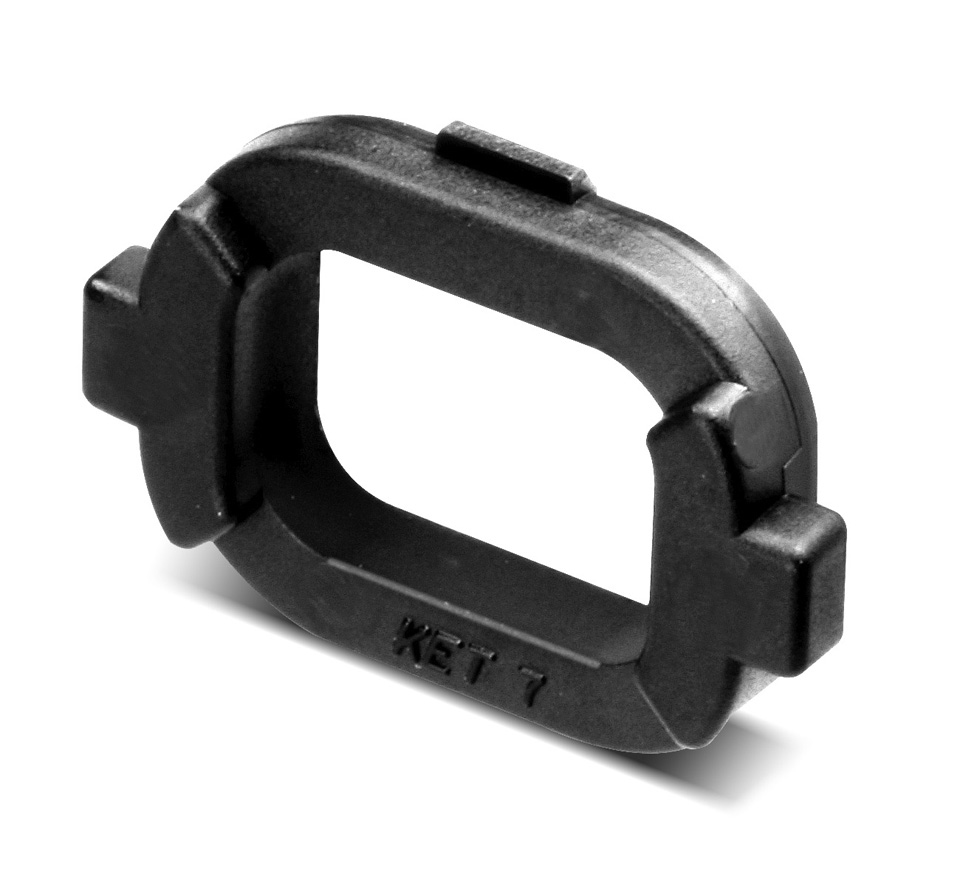

Mating Rear Holder: MG634131-5

Mating Terminal: ST730517-3

Mating Connector: MG644483-4

Pitch(mm): 3

Mating Tab Width(in): .050

Electrical Feature

Insulation Range: AVSS 0.3~0.5, AEXF 0.3~0.5

Wire Range: AVSS 0.3~0.5, AEXF 0.3~0.5

Insulation Resistance: DC 500V 100MΩ MIN

Contact Resistance: 5mΩ MAX

Terminal Transmits(A): 3
