Wire To Wire Connector
- Electronic Parts > Home Appliance Connector > Wire To Wire Connector

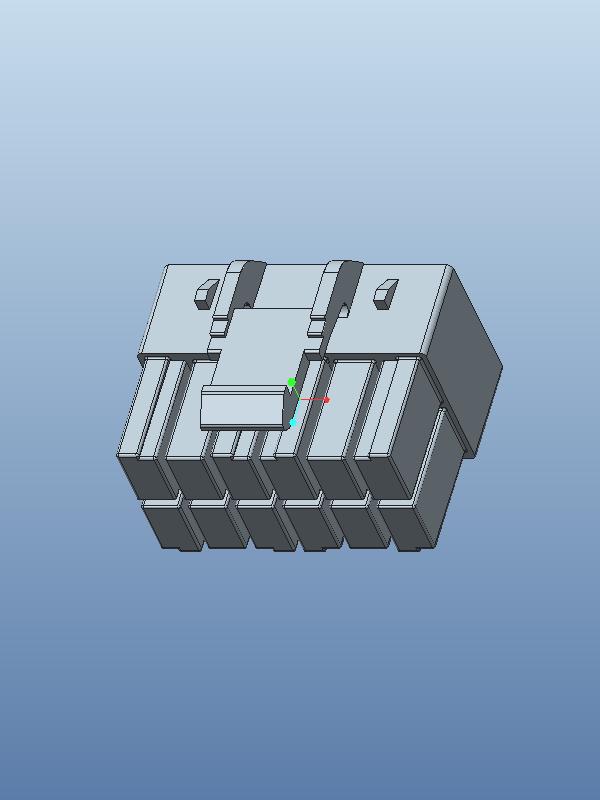

- Part Number :
- MG615249T-012
- Series :
- 050 SERIES
General Feature
- Series
- 050 SERIES
- Material Type
- PET+PC
- Dimensions
- 19.55*25.8*14.0
Physical Feature
- Number of Poles
- 12
- Pitch(mm)
- 4.2
- Color
- Natural
- Sealed
- NO
- Mating Rear Holder
- h635252-2

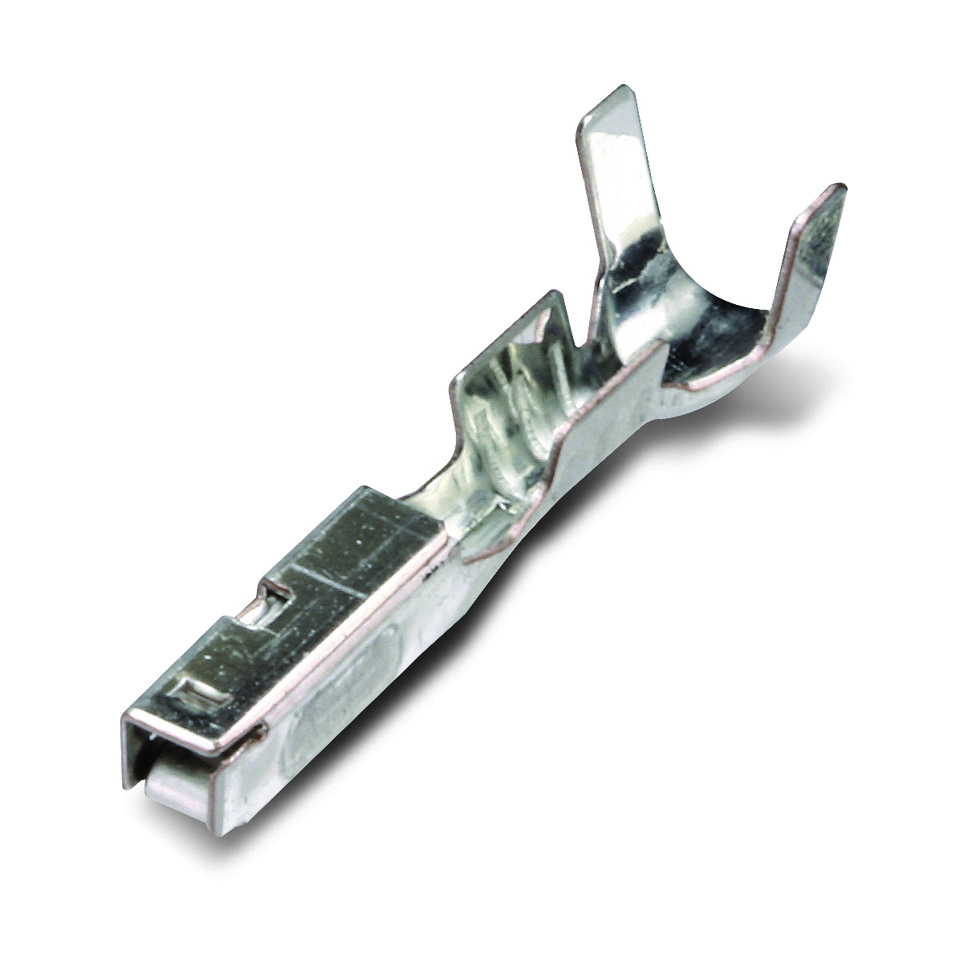

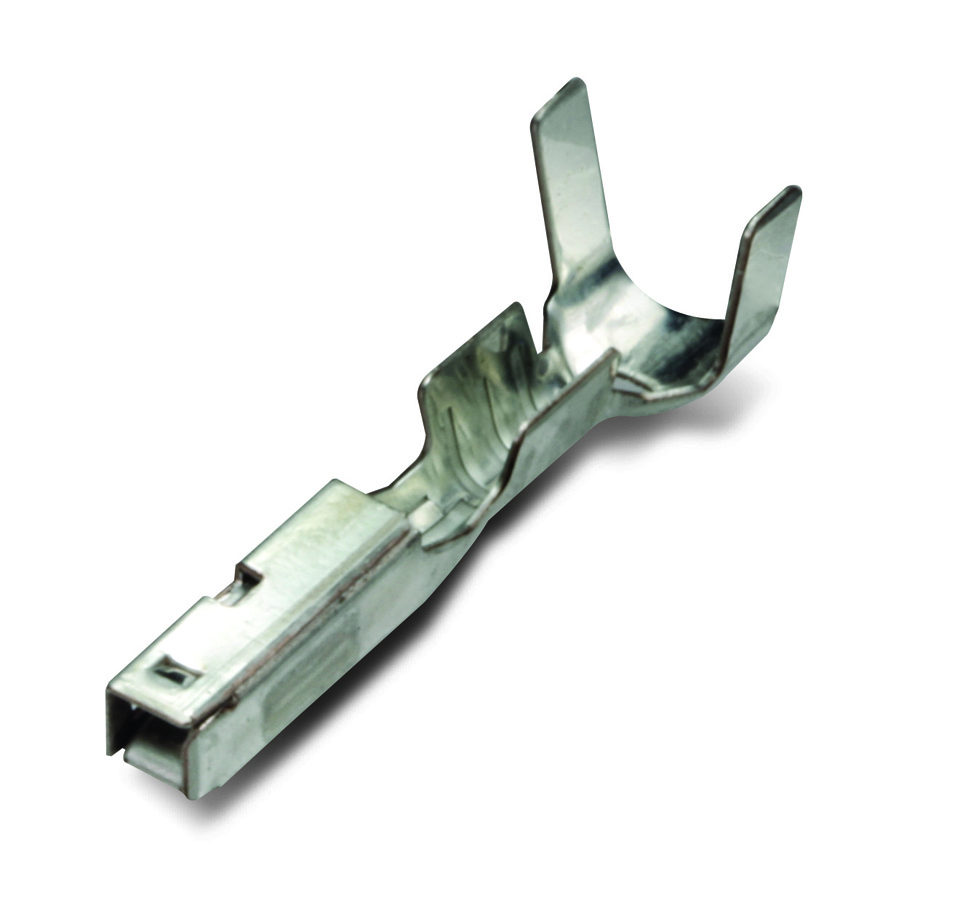

- Mating Terminal
- ST731169-3, ST731170-3, ST731171-3, ST731172-3
- Mating Connector
- MG625251t-012
- Operating Temperature
- -40℃ ~ 105℃
- GWIT
- GWIT(750˚)
- Mating Tab Width(in)
- .050
- Flame Rating
- V0
Electrical Feature
- Terminal Transmits(A)
- 7
- Rated Voltage
- 300v(ac/dc)
