Wire To Wire Connector
- Electronic Parts > Home Appliance Connector > Wire To Wire Connector
- Part Number :
- MG615559-5
- Series :
- 110 SERIES
General Feature
- Series
- 110 SERIES
- Material Type
- PBT
- Dimensions
- 22.8*58.7*22.2
Physical Feature
- Number of Poles
- 7
- Pitch(mm)
- 6.6
- Color
- Black
- Sealed
- YES
- Mating Rear Holder
- MG635611-1

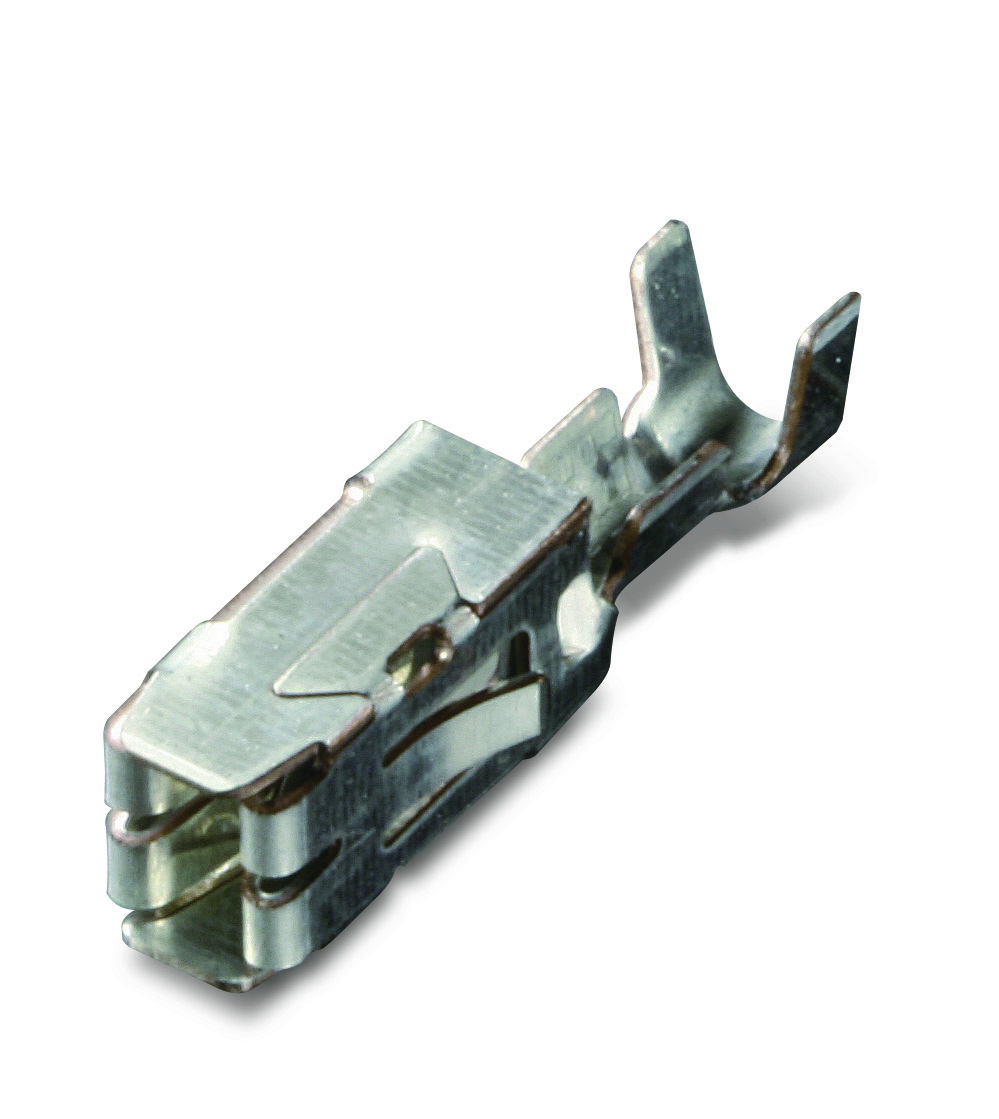

- Mating Terminal
- ST731371-3, ST731372-3
- Mating Connector
- MG625430-5
- Operating Temperature
- -40℃ ~ 105℃
- GWIT
- NO
- Mating Tab Width(in)
- .110
- Flame Rating
- V0
Electrical Feature
- Terminal Transmits(A)
- 5
- Rated Voltage
- 300v,(ac/dc)
