110 P-LOCK 2P HOUSING(P:5.0mm)

Part Number :: MG615603T-002

Series :: 110 SERIES

첨부파일

2D PDF

기술 문의 품질 문의 구매 문의

General Feature

Series: 110 SERIES

Material Type: PET+PC

Dimensions: 24.00*8.65*10.85

Physical Feature

Number of Poles: 2

Pitch(mm): 1.5

Color: Natural

Sealed: NO

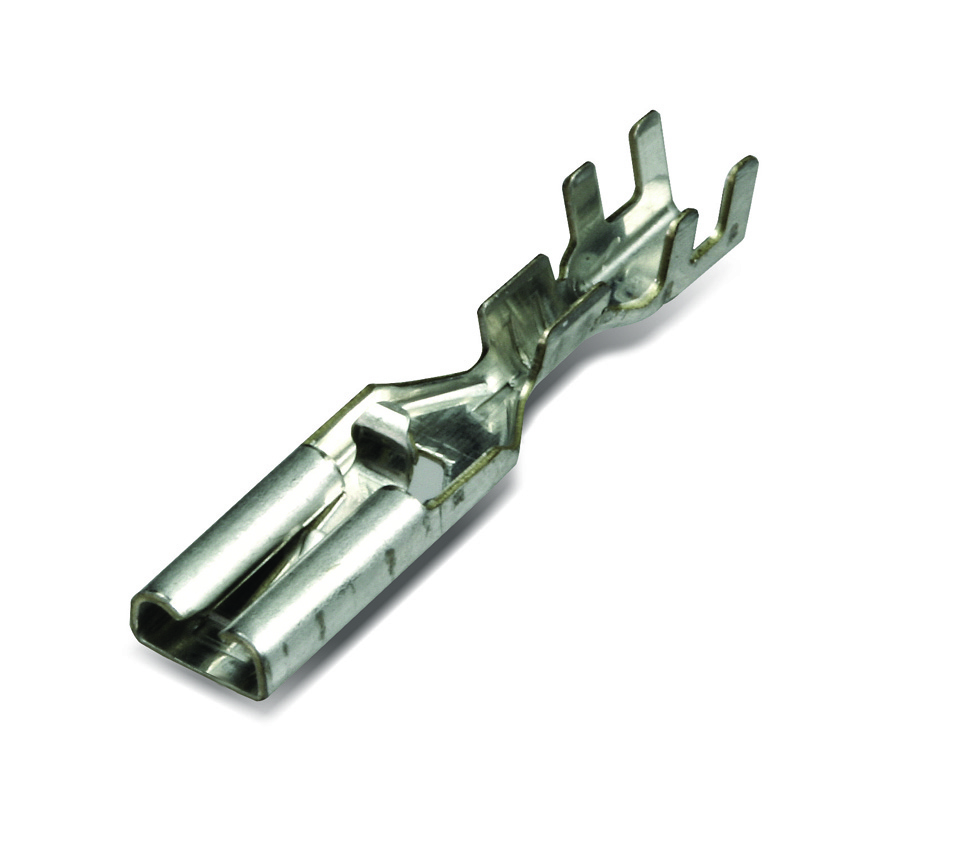

Mating Terminal: ST731177-3, ST731217-3

Operating Temperature: -40℃ ~ 105℃

GWIT: GWIT(750˚)

Mating Tab Width(in): .110

Flame Rating: V0

Electrical Feature

Terminal Transmits(A): 10

Rated Voltage: 300v,(ac/dc)
