Wire To Wire Connector
- Electronic Parts > Home Appliance Connector > Wire To Wire Connector

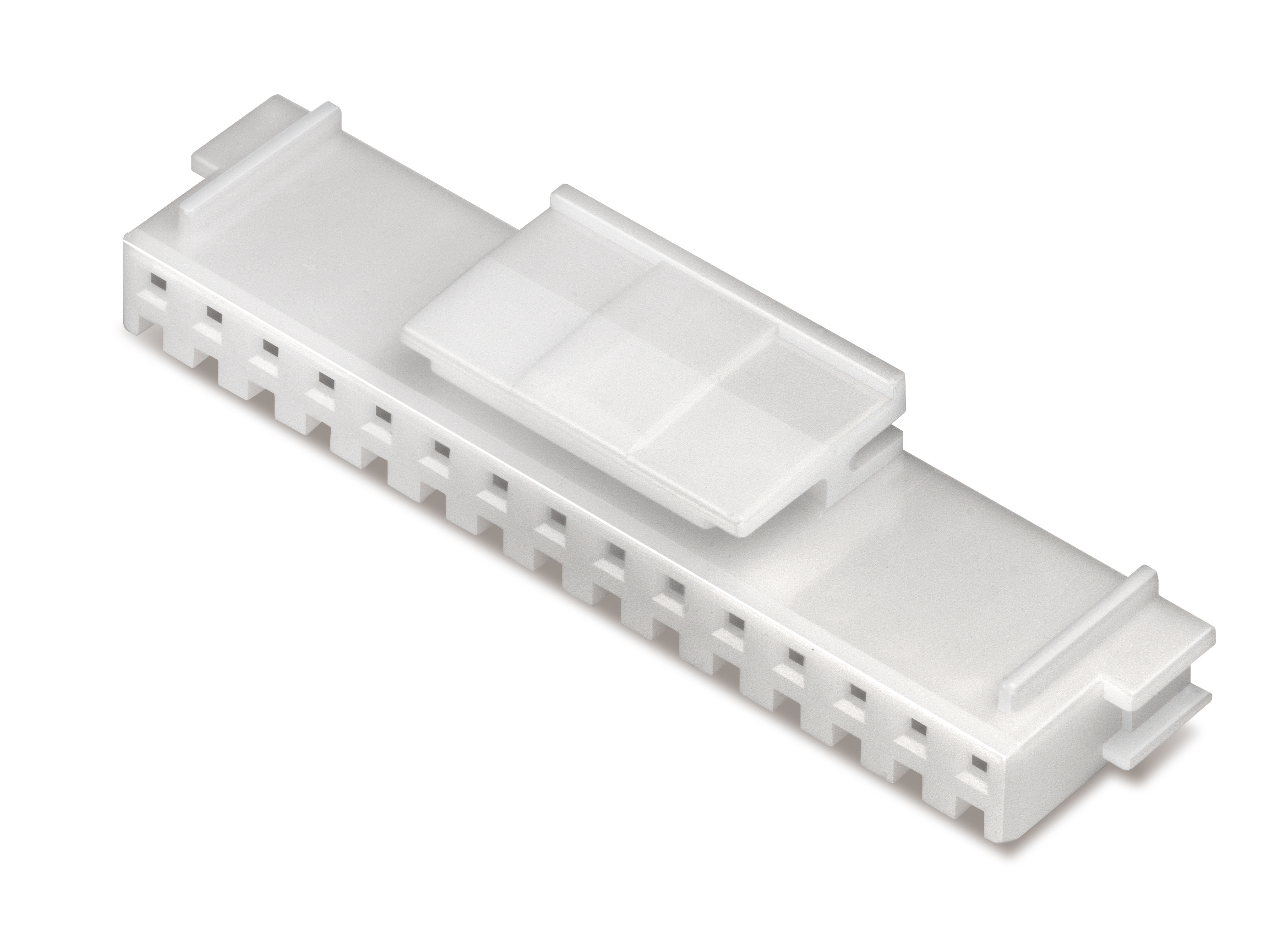

- Part Number :
- MG615632-015
- Series :
- Home appliance Connectors SERIES (ETC)
- Series
- Home appliance Connectors SERIES (ETC)
- Material Type
- PET+PC
- Dimensions
- 9.5*38.1*4.0
- Number of Poles
- 15
- Pitch(mm)
- 2.5
- Color
- Natural
- Sealed
- NO
- Mating Rear Holder
- MG635826-215
- Mating Terminal
- ST731454-3ss

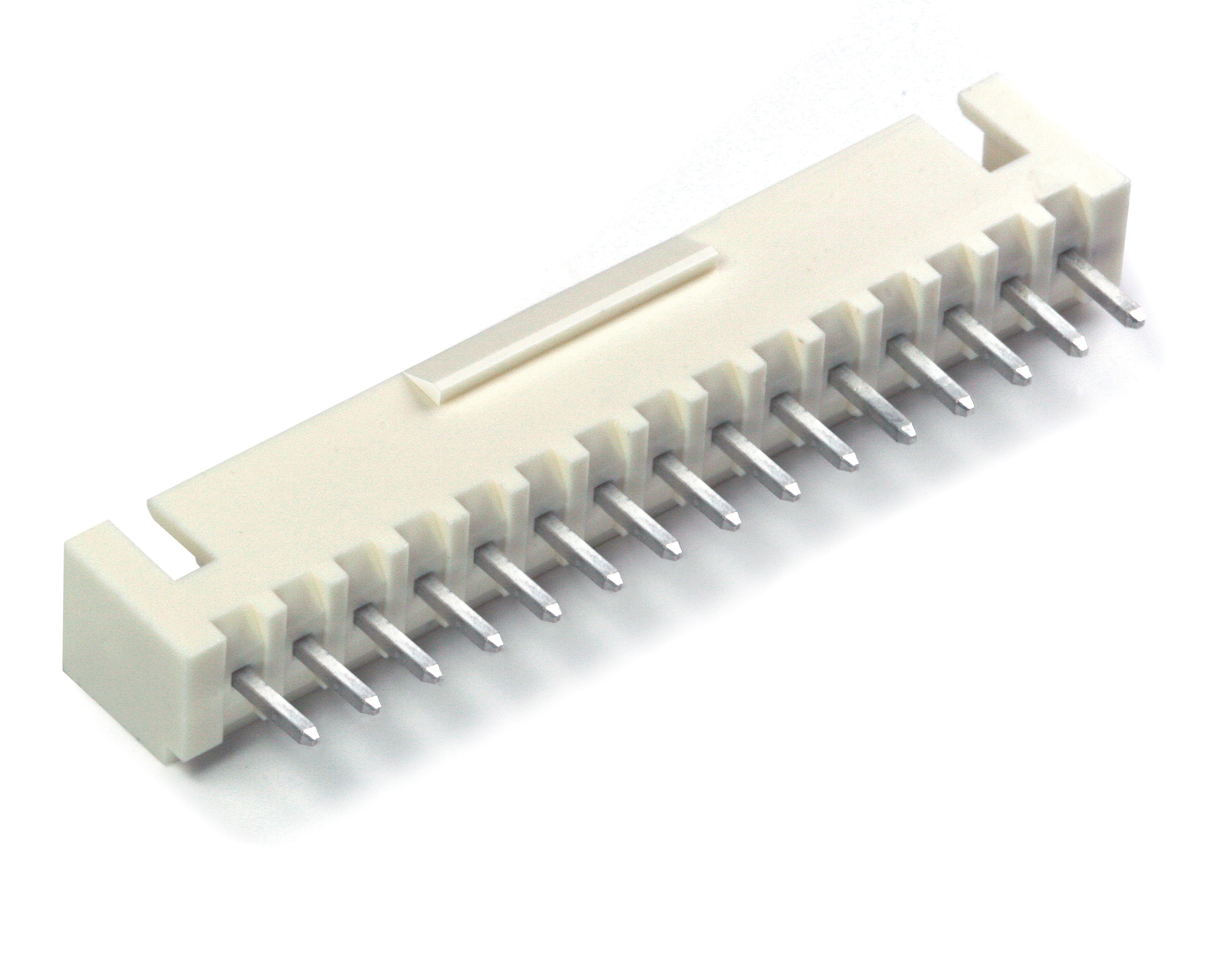

- Mating Connector
- MG646077-015
- Operating Temperature
- -40~105
- GWIT
- GWIT(750˚)
- Mating Tab Width(in)
- .025
- Flame Rating
- V0
- Terminal Transmits(A)
- 3
- Rated Voltage
- 250v
-
