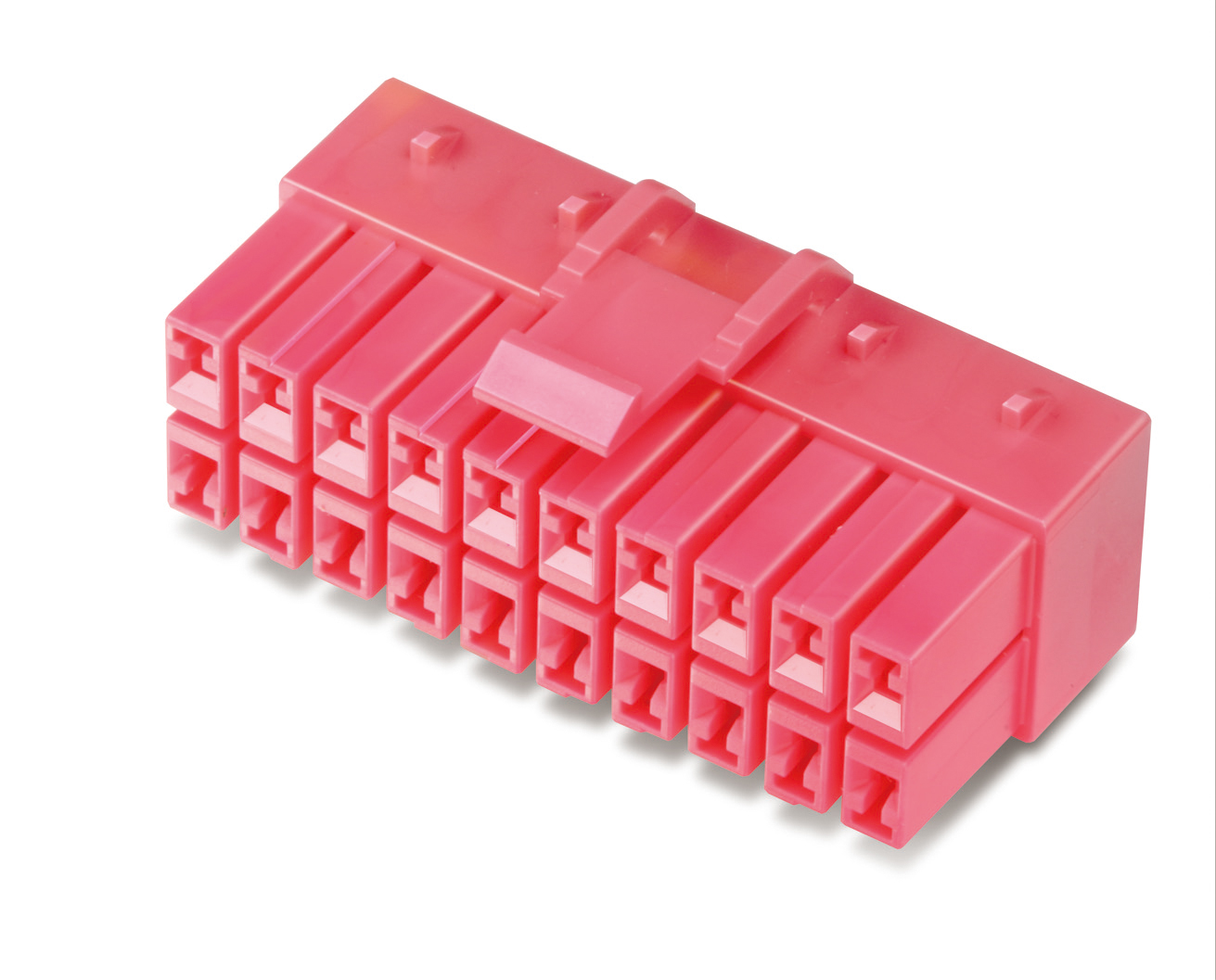

Wire To Wire Connector
- Electronic Parts > Home Appliance Connector > Wire To Wire Connector
- Part Number :
- MG615636-120
- Series :
- 050 SERIES
General Feature
- Series
- 050 SERIES
- Material Type
- PET+PC
- Dimensions
- 19.55*42.6*14.0
Physical Feature
- Number of Poles
- 20
- Pitch(mm)
- 4.2
- Color
- Red
- Sealed
- NO
- Mating Rear Holder
- MG635620-2
- Mating Connector
- MG625483-120
- Operating Temperature
- -40~105
- GWIT
- GWIT(750˚)
- Mating Tab Width(in)
- .050
- Flame Rating
- V0
Electrical Feature
- Terminal Transmits(A)
- 8
- Rated Voltage
- 300
