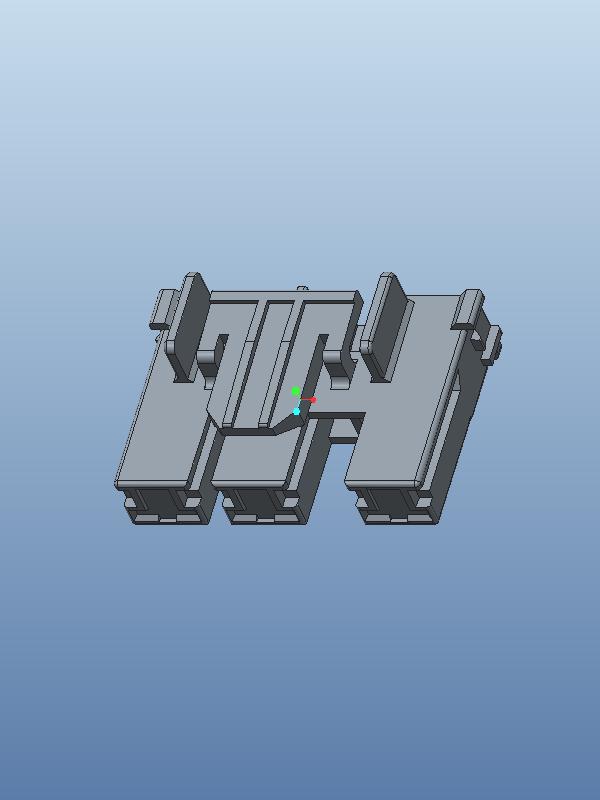

Wire To Wire Connector
- Electronic Parts > Home Appliance Connector > Wire To Wire Connector
- Part Number :
- MG615650-003
- Series :
- 187 SERIES
General Feature
- Series
- 187 SERIES
- Material Type
- PBT+PC
- Dimensions
- 36.4 × 14.1 × 25.0
Physical Feature
- Number of Poles
- 3
- Pitch(mm)
- 15mm, 11mm
- Color
- Natural
- Sealed
- Not Waterproof
- Mating Rear Holder
- MG635907-201
- Mating Terminal
- ST731235-3s
- Operating Temperature
- -40℃ ~ 105℃
- GWIT
- GWIT(750˚)
- Mating Tab Width(in)
- .187
- Flame Rating
- V0
Electrical Feature
- Terminal Transmits(A)
- 10
- Rated Voltage
- 300v(ac/dc)
