Wire To Wire Connector
- Electronic Parts > Home Appliance Connector > Wire To Wire Connector
- Part Number :

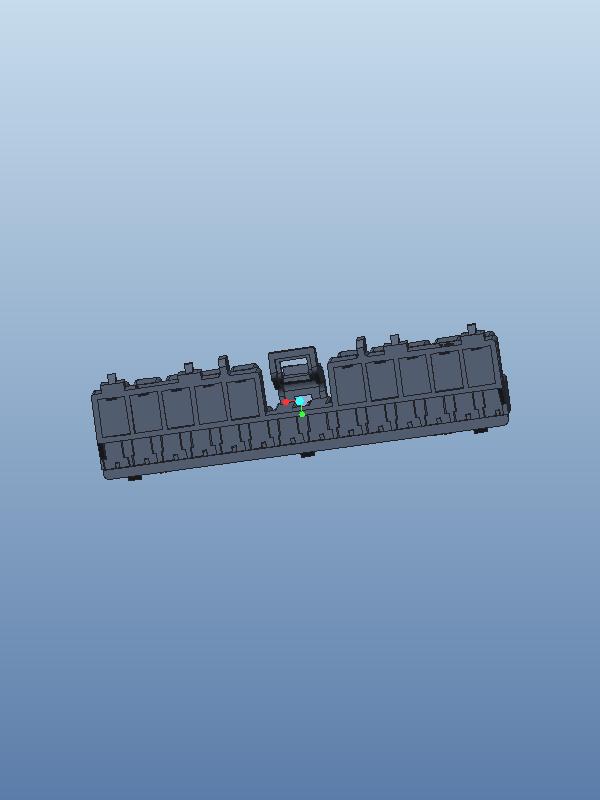

- MG615675-024
- Series :
- HYBRID SERIES
General Feature
- Series
- HYBRID SERIES
- Material Type
- PET+PC
- Dimensions
- 52.6*17.95*11.5
Physical Feature
- Number of Poles
- 24
- Pitch(mm)
- 4.2 / 3.8
- Color
- Natural
- Sealed
- Not Waterproof
- Mating Rear Holder
- MG635955-010, MG635956-014
- Mating Terminal

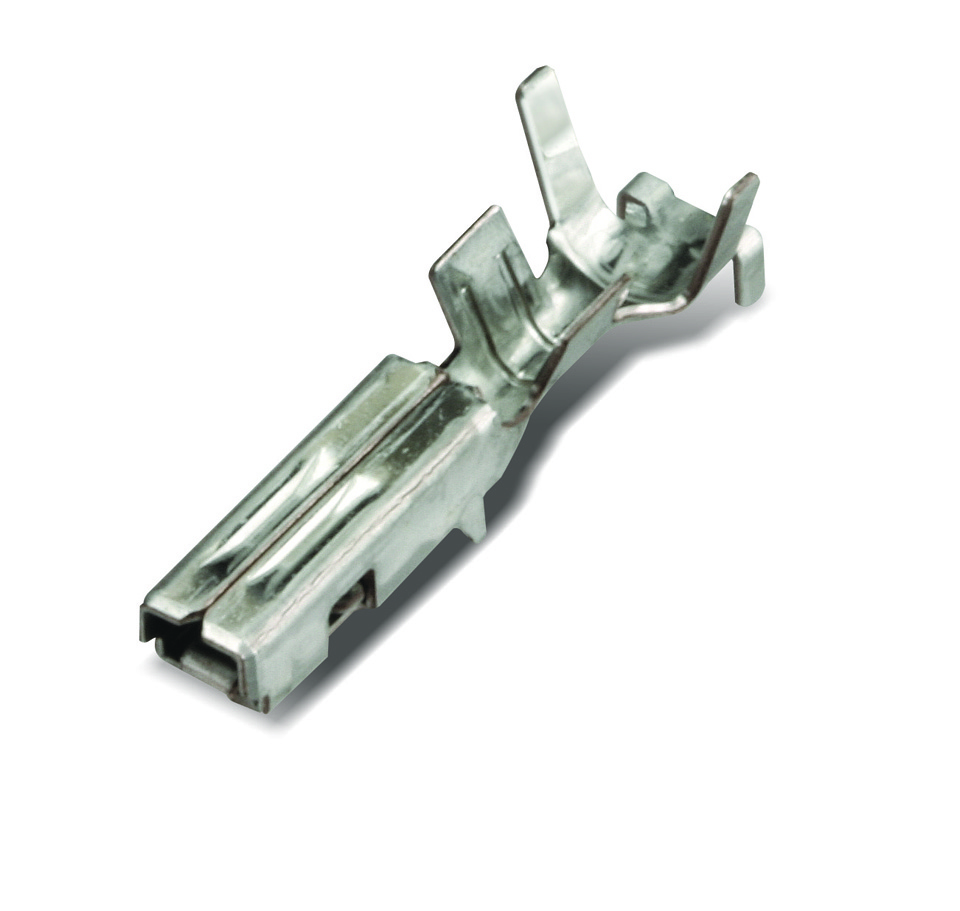

- ST731081-3, ST731082-3, ST731083-3, ST731449-3s, ST731449-3t
- Mating Connector
- MG625488-024
- Operating Temperature
- -40'c ~ +105'c
- GWIT
- GWIT(750˚)
- Mating Tab Width(in)
- 060 /035
- Flame Rating
- V0
Electrical Feature
- Terminal Transmits(A)
- 7(060) / 3(035)
- Rated Voltage
- 300v(ac/dc), 110v(ac/dc)
Mating Product
/
