2509 12M HOUSING
2509 12M HOUSING
Part Number :
MG620122
Series :
HYBRID SERIES
첨부파일
General Feature
Series
HYBRID SERIES
Material Type
PA66
Dimensions
37.5*37.5*15.8
Physical Feature
Sealed
NO
Color
Natural
TPA
NO
Primary Locking Type
HSG Lance
Number of Poles
12
Mating Connector
MG610121
Mating Terminal
ST740367-3, ST740368-3, ST740470-1, ST740470-3, ST740471-1, ST740471-3, ST740472-1, ST740472-3

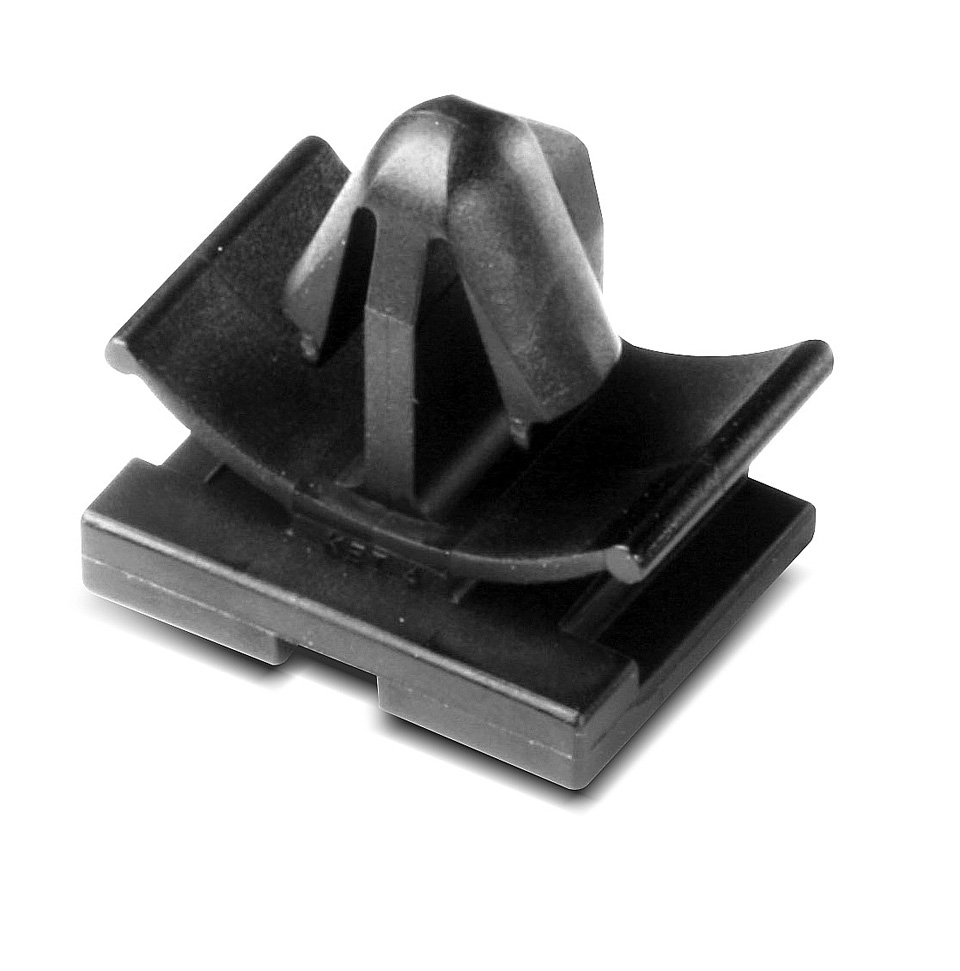

Mating Clip
MG635389, MG630459-4
Electrical Feature
Wire Range
090:AVSS 0.3~0.5 / AVSS 0.85~1.25,250:AVSS 0.3~0.5,AVSS 0.85~1.25,AVSS 2.0~3.0
Insulation Resistance
DC 500V 100MΩMIN
Contact Resistance
3mΩ Max
