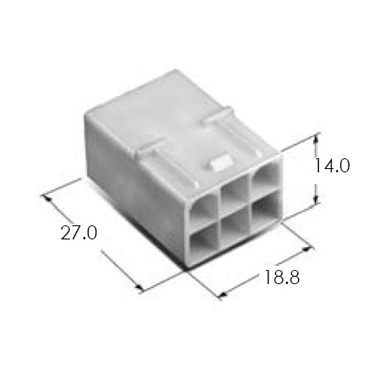

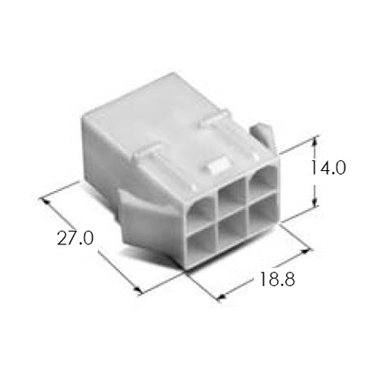

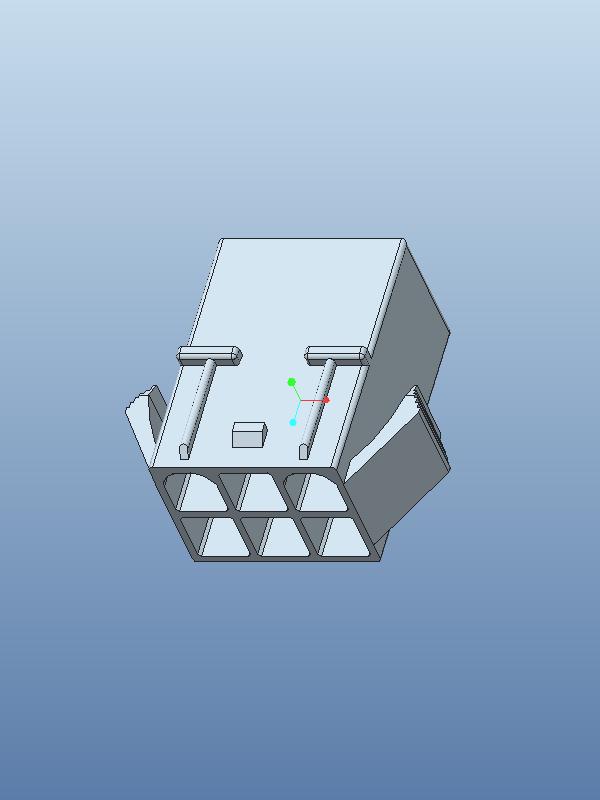

1806 6M HOUSING

1806 6M HOUSING

Part Number :: MG620430T-006

Series :: 1806 SERIES

첨부파일

기술 문의 품질 문의 구매 문의

General Feature

Series: 1806 SERIES

Material Type: PET+PC

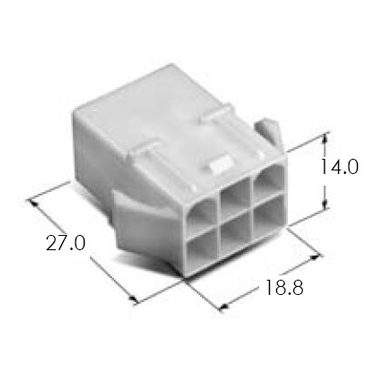

Dimensions: 14.0*18.8*27.0

Physical Feature

Number of Poles: 6

Pitch(mm): 6

Sealed: NO

Color: Natural

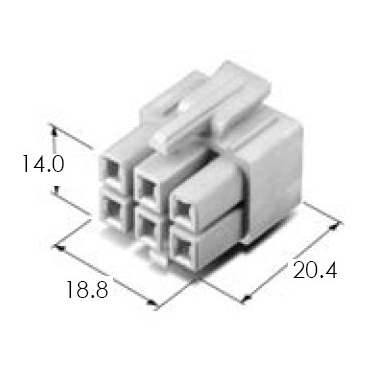

Mating Connector: h610232t-006

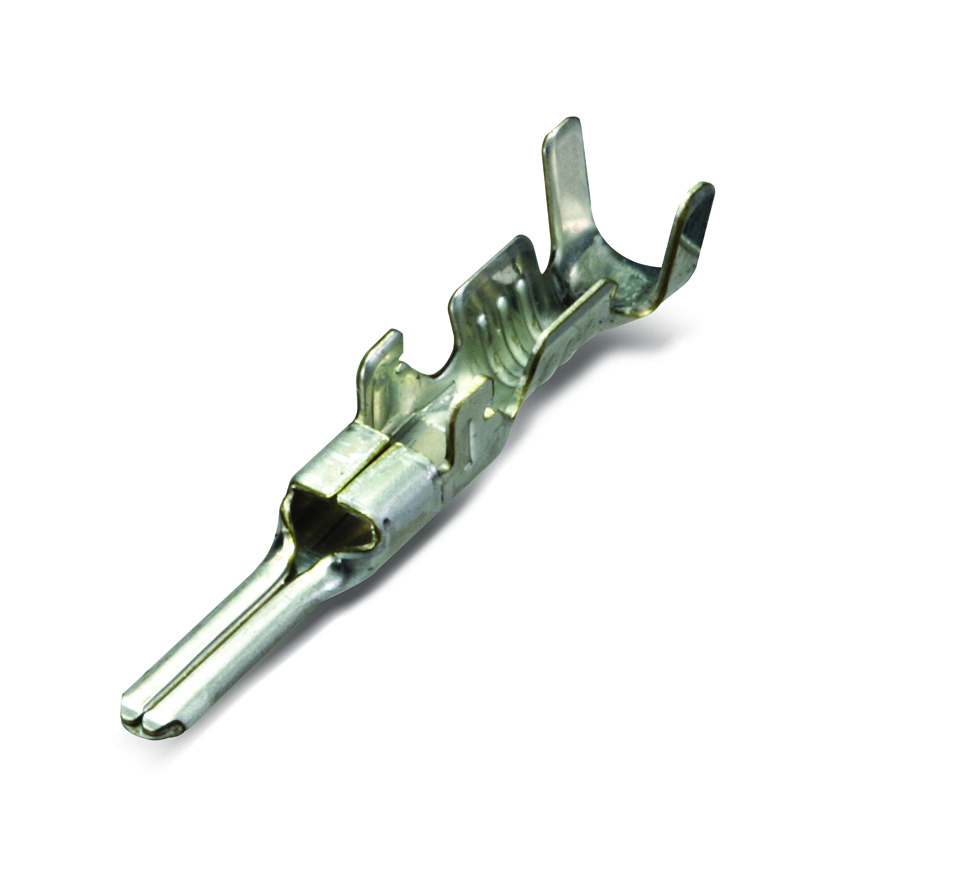

Mating Terminal: ST740463-3, ST741266-3, ST740464-3, ST741130-3, ST740465-3, ST740466-3

GWIT: GWIT(750˚)

Operating Temperature: -40℃ ~ 105℃

Mating Tab Width(in): .070

Flame Rating: V0

Electrical Feature

Terminal Transmits(A): 15

Rated Voltage: 300v(ac/dc)

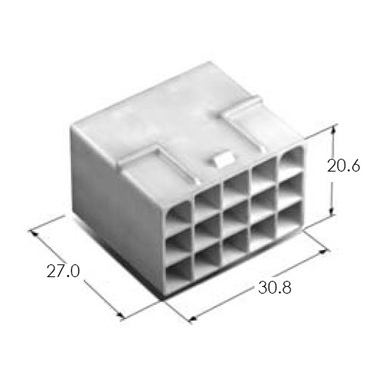

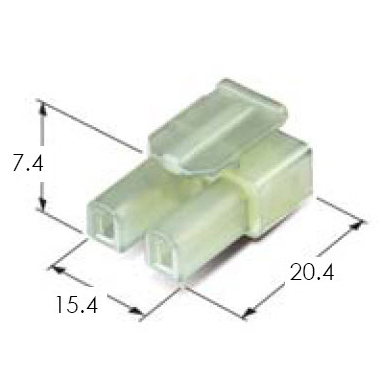

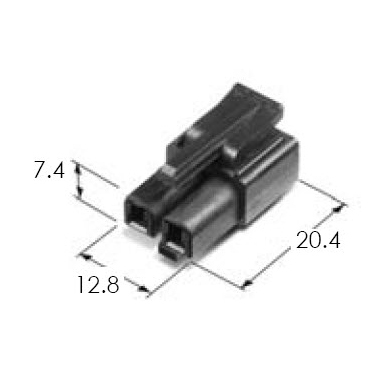

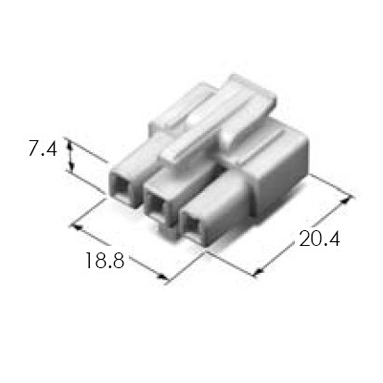

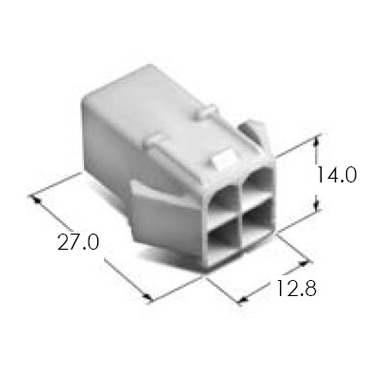

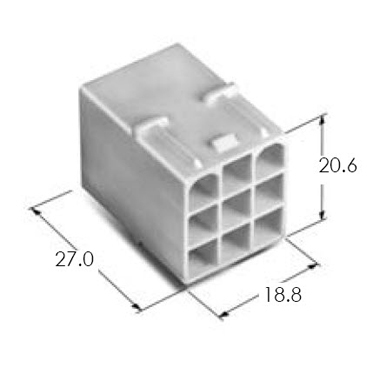

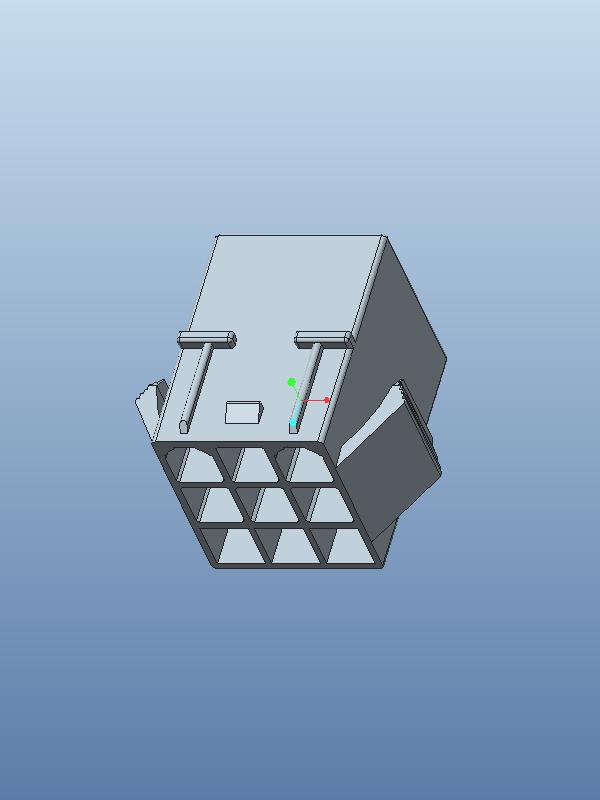

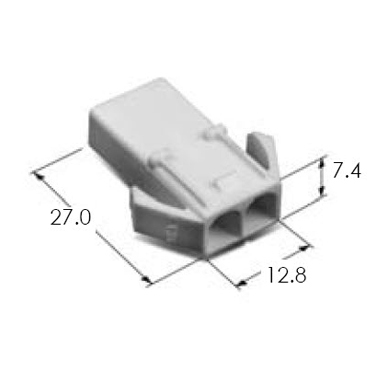

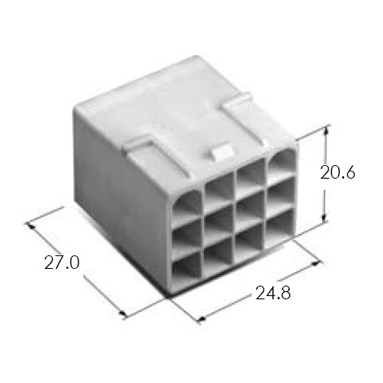

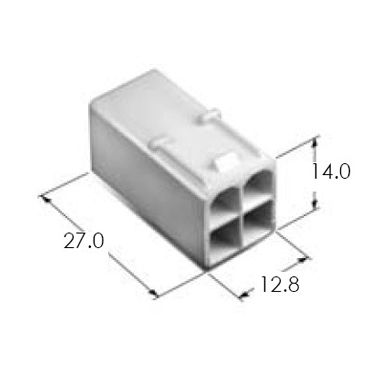

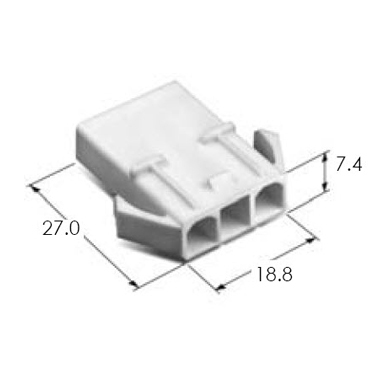

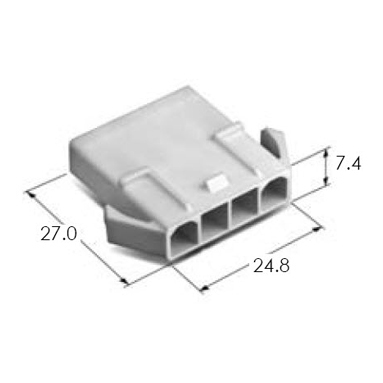

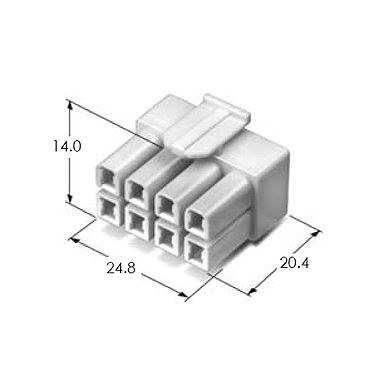

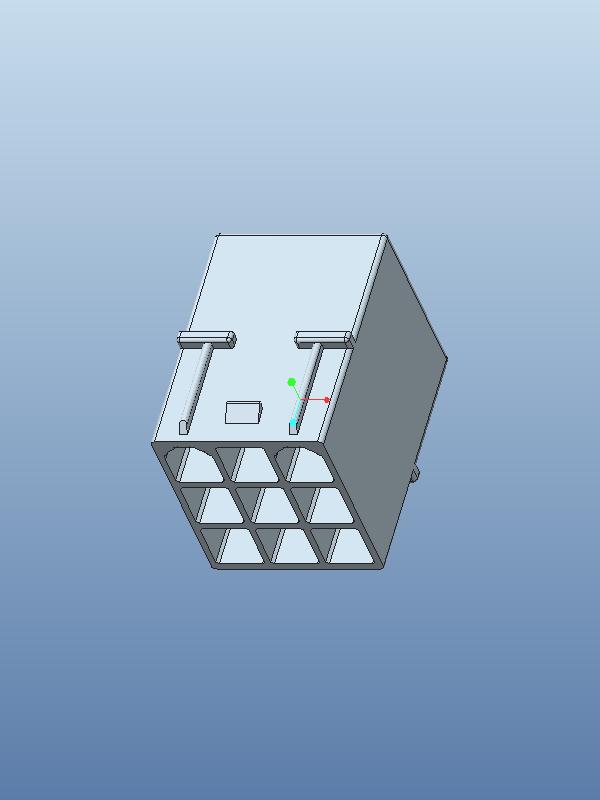

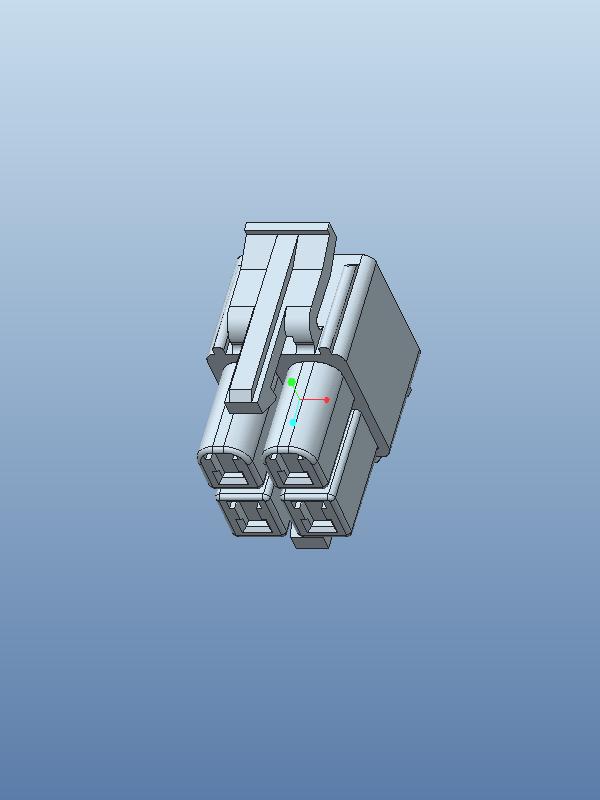

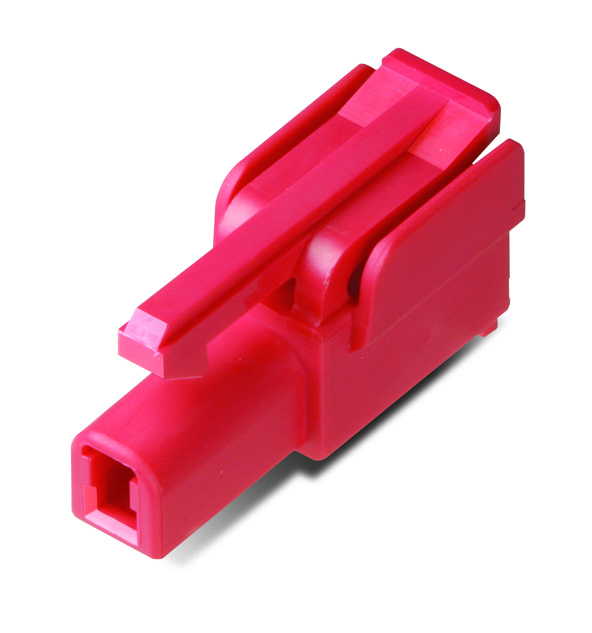

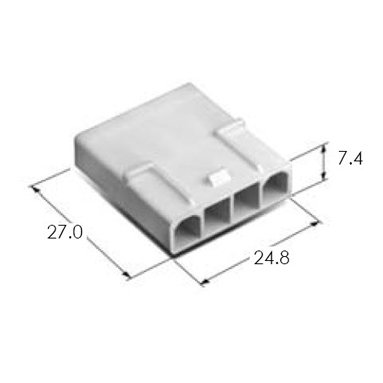

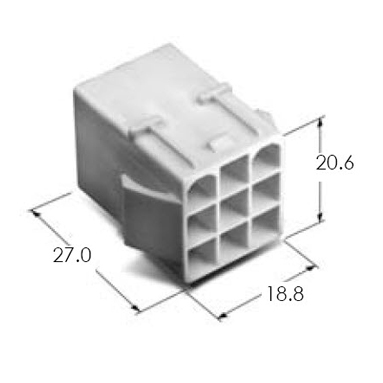

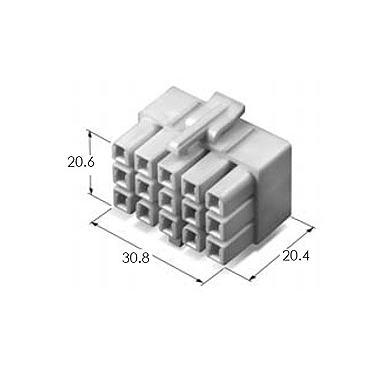

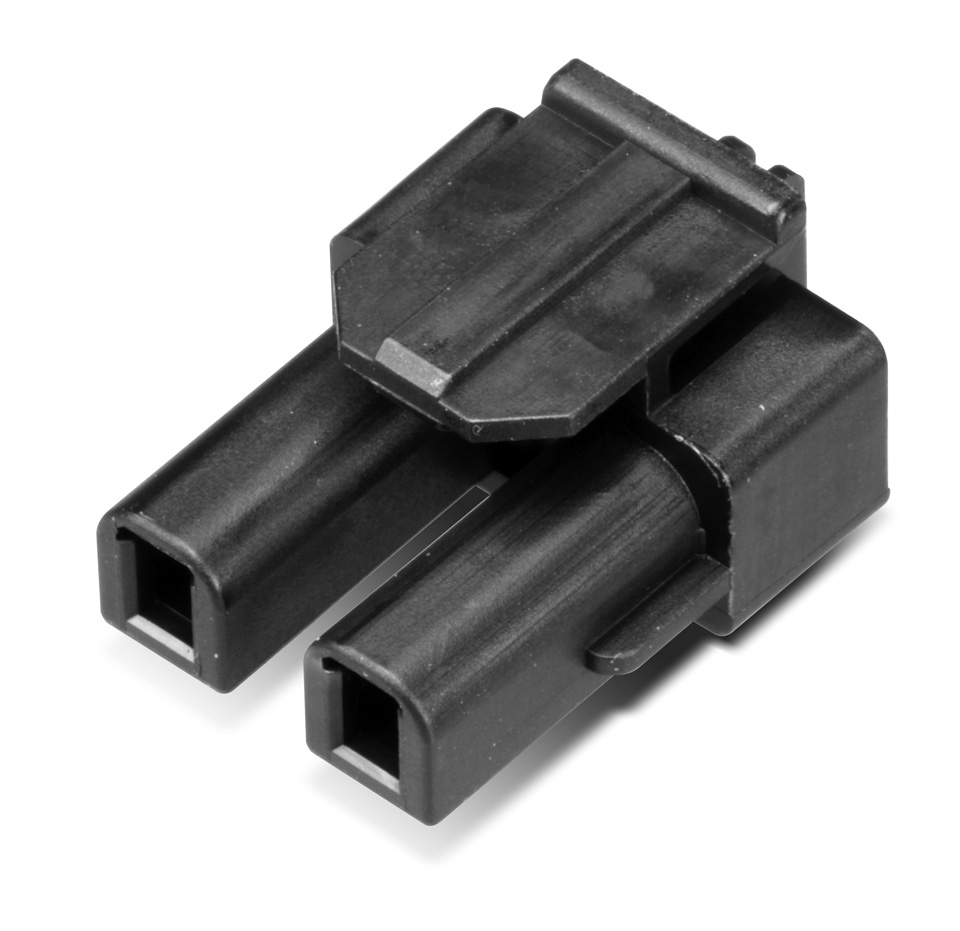

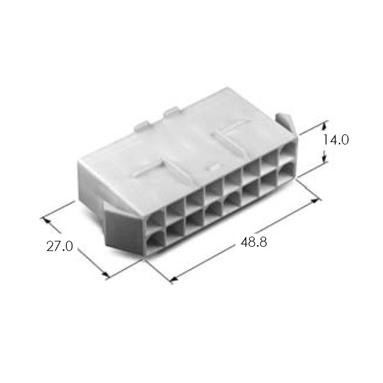

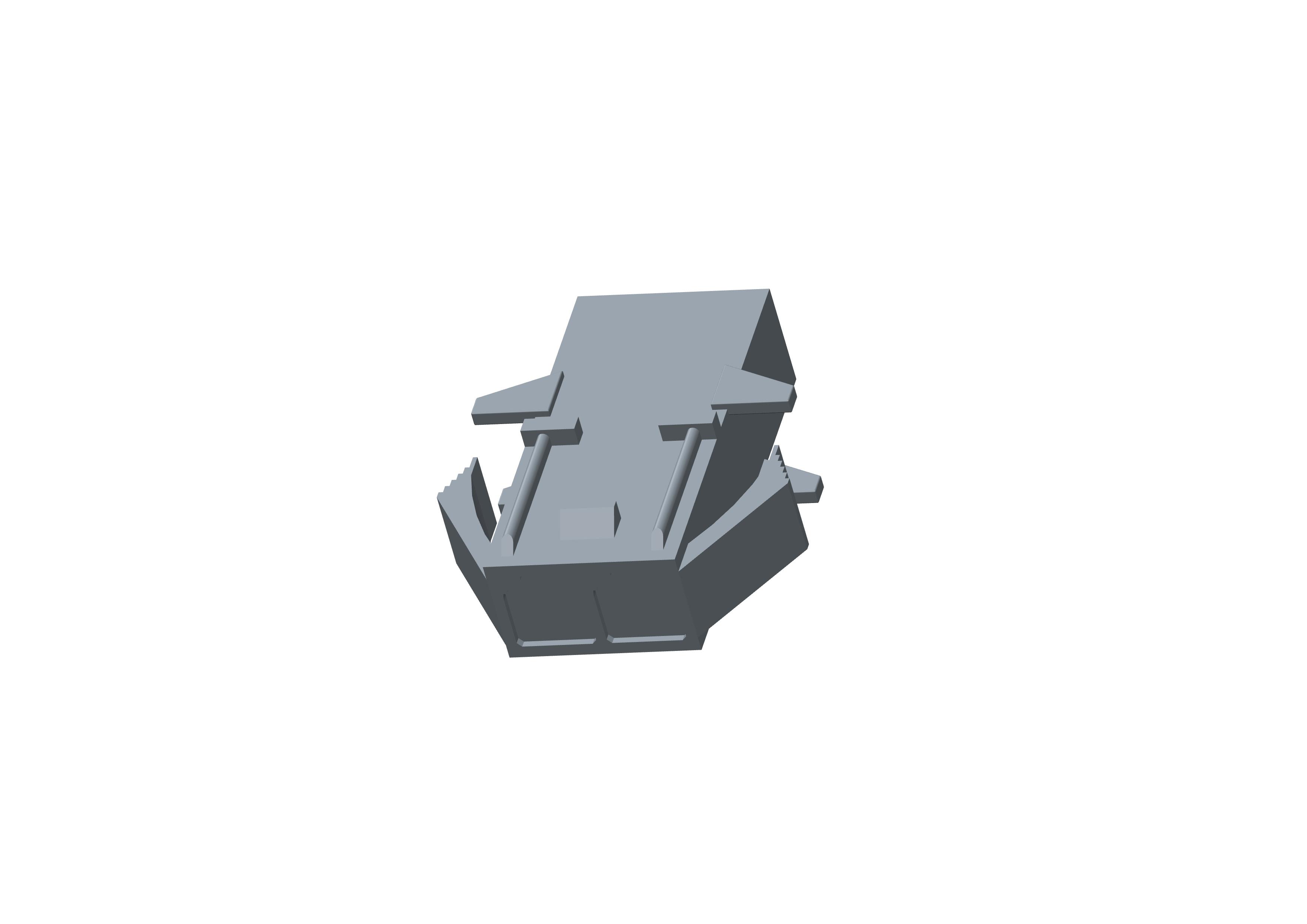

Series Product

/

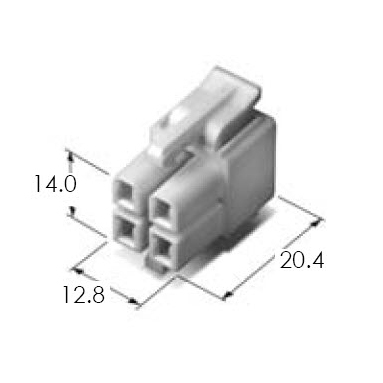

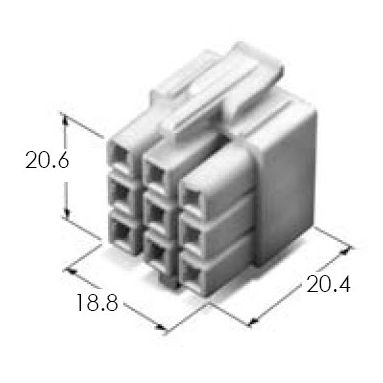

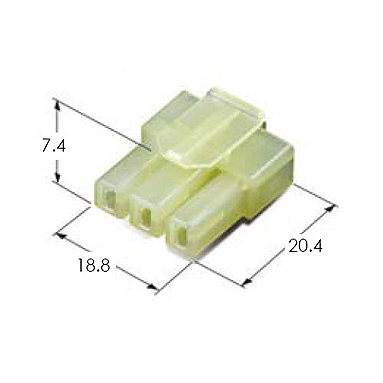

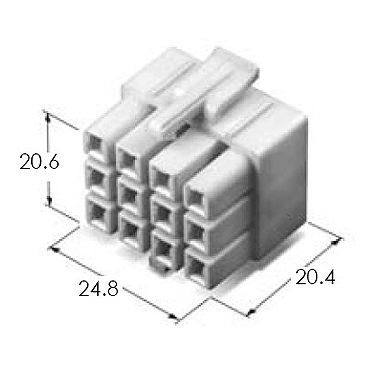

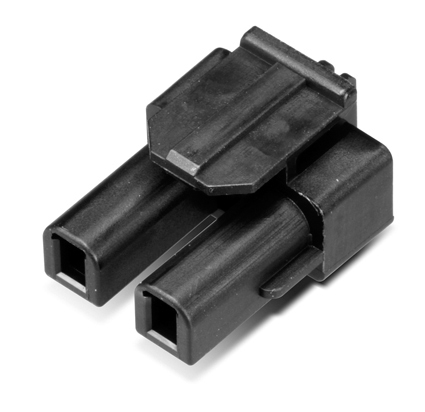

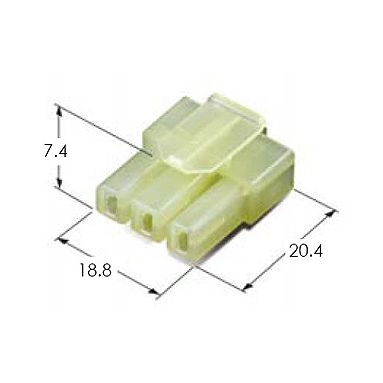

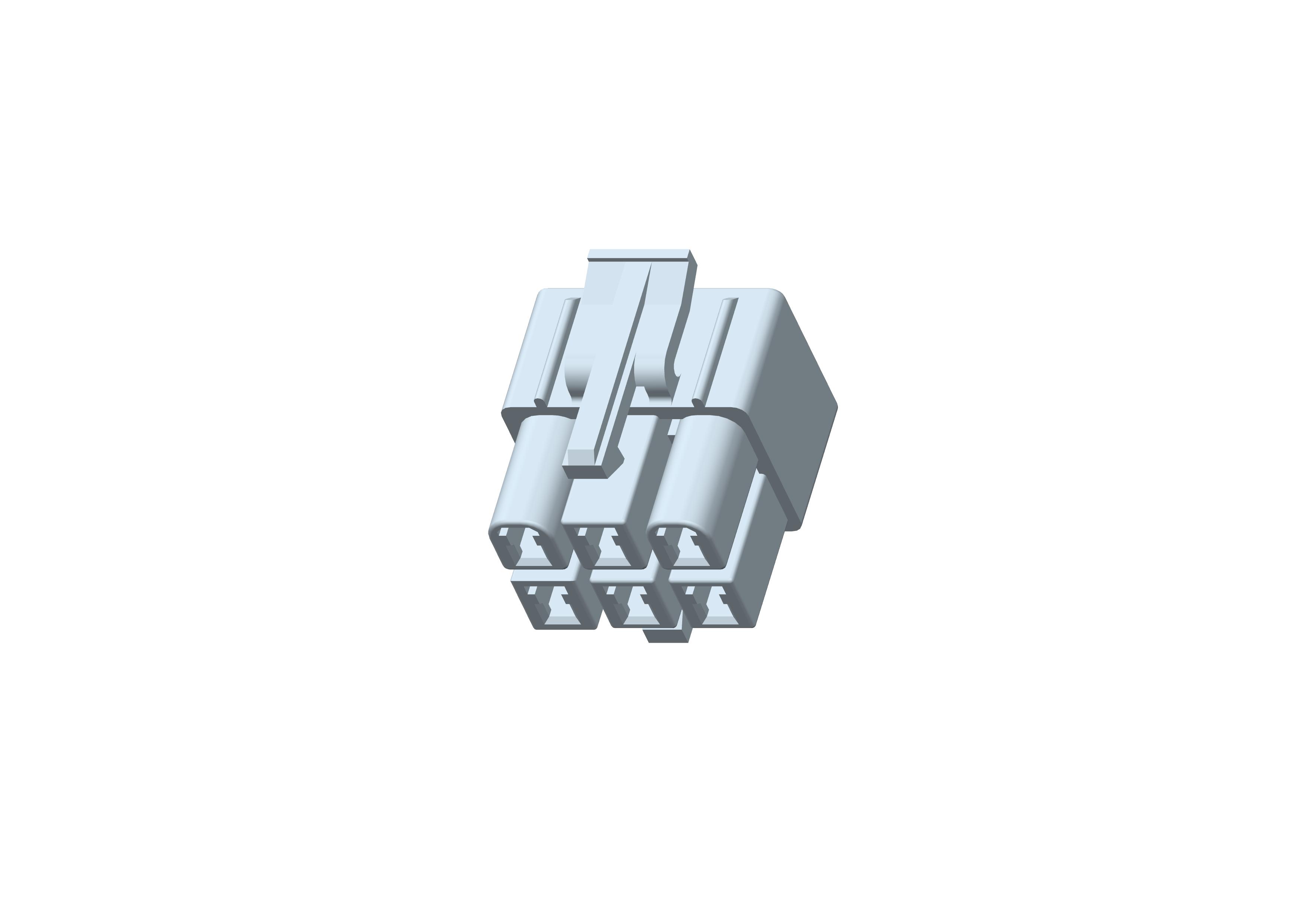

Mating Product

/
