Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG620984-5
- Series :
- 250 D/L SERIES
General Feature
- Series
- 250 D/L SERIES
- Material Type
- PA66
- Dimensions
- 13.2*31.7*14.8
Physical Feature
- Sealed
- NO
- Color
- Black
- TPA
- YES
- Primary Locking Type
- HSG Lance
- Number of Poles
- 1
- Mating Connector
- MG610983
- Mating Terminal
- ST740470, ST740471, ST740472

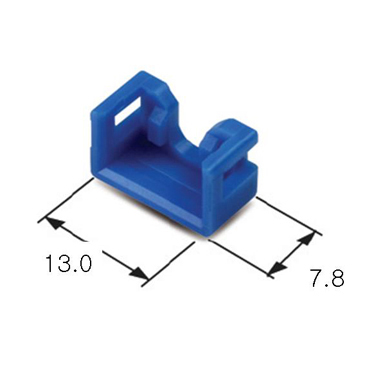

- Mating Rear Holder
- MG630998-2
- Mating Tab Width(in)
- .250
Electrical Feature
- Wire Range
- AVSS 0.3~0.5AVSS 0.85~1.25AVSS 2.0 AVS 3.0
- Insulation Resistance
- DC 500V 100MΩ MIN
- Contact Resistance
- 3mΩ MAX
