Wire To Wire Connector
- Electronic Parts > Home Appliance Connector > Wire To Wire Connector
- Part Number :
- MG623085T
- Series :
- 312 SERIES
General Feature
- Series
- 312 SERIES
- Material Type
- PET+PC

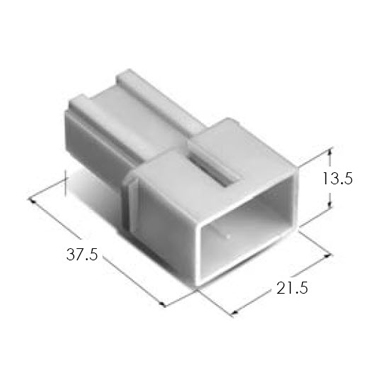

- Dimensions
- 13.5*21.5*37.5
Physical Feature
- Number of Poles
- 1
- Sealed
- NO
- Color
- Natural

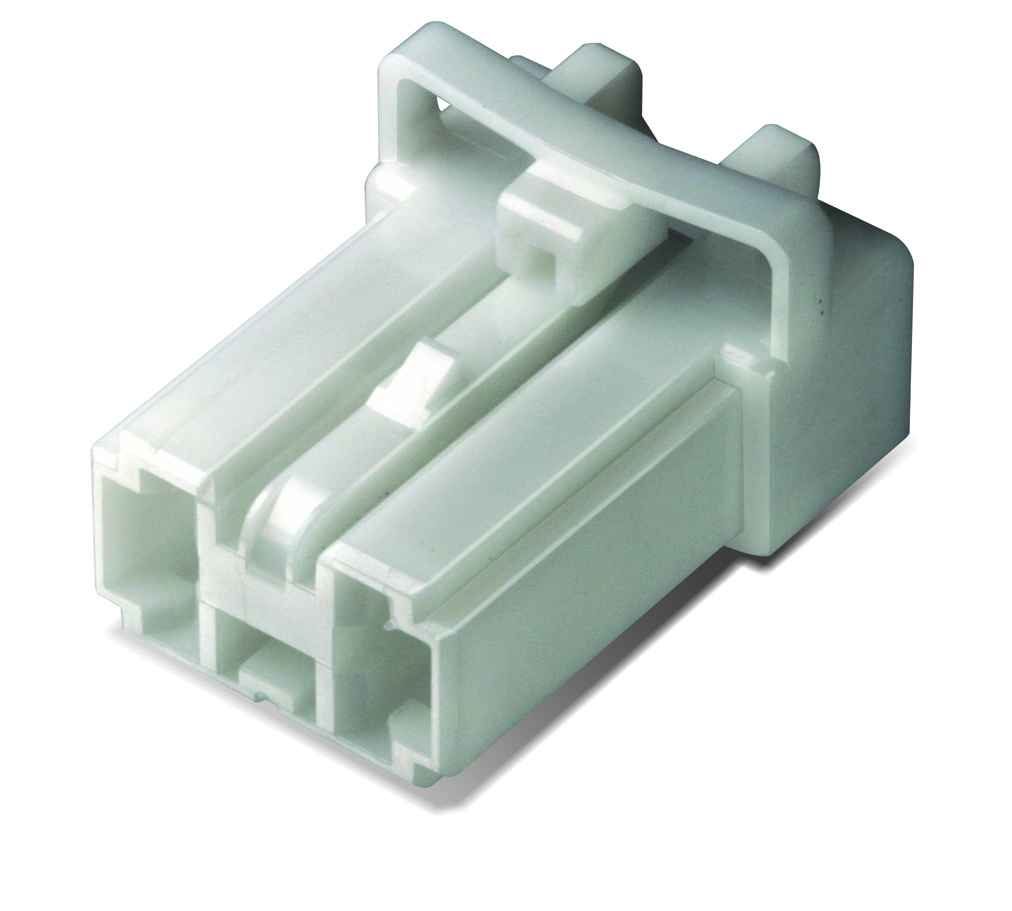

- Mating Connector
- MG613084t
- Mating Terminal
- ST740370-1, ST740370-2, ST740399-1, ST740399-2
- GWIT
- GWIT(750˚)
- Operating Temperature
- -40℃ ~ 105℃
- Mating Tab Width(in)
- .312
- Flame Rating
- V0
Electrical Feature
- Terminal Transmits(A)
- 30
- Rated Voltage
- 300v,(ac/dc)
Mating Product
/
