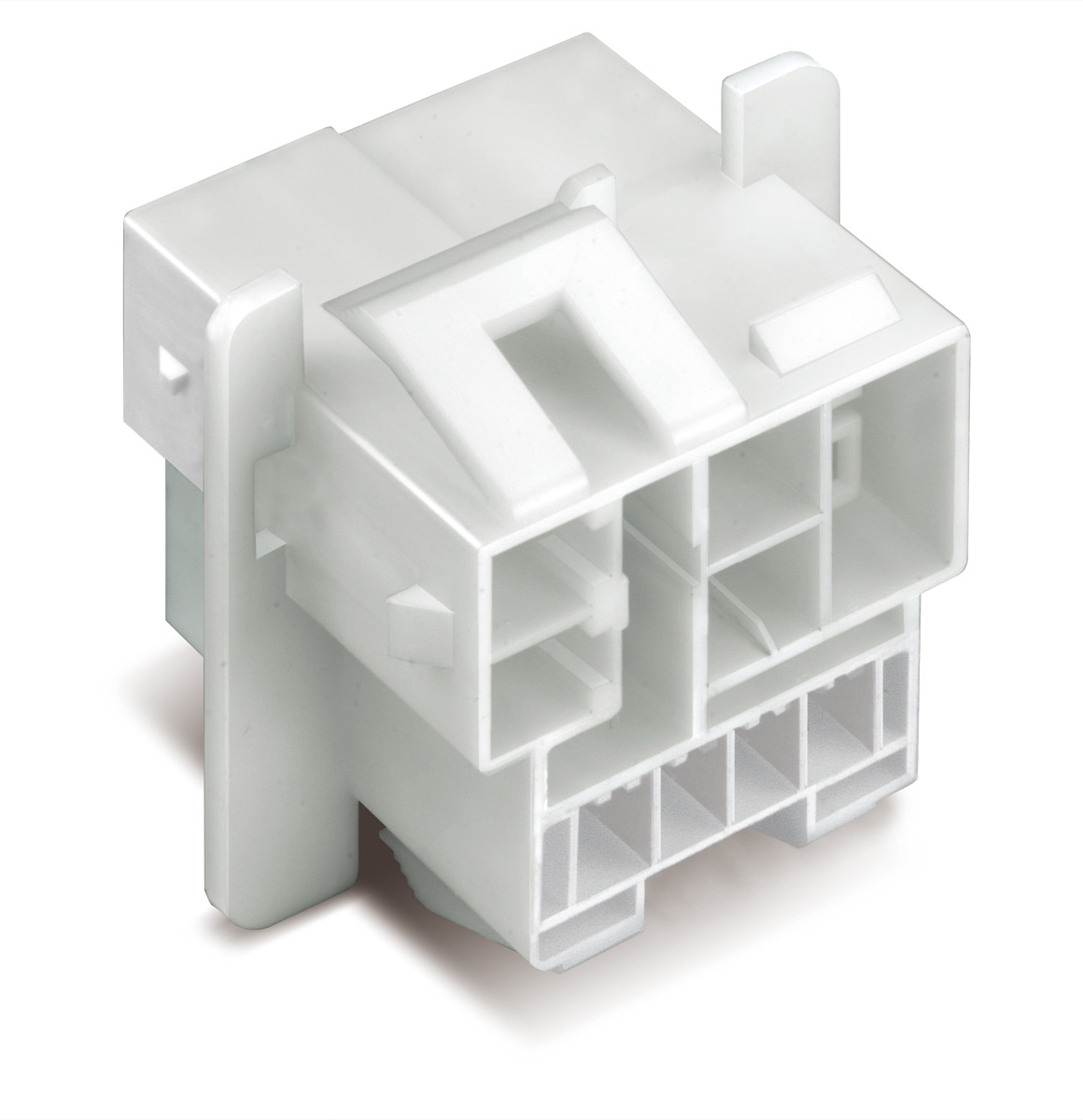

0706 MULTI 10M HSG

0706 MULTI 10M HSG

Part Number :: MG625461

Series :: 070 SERIES

첨부파일

2D PDF

기술 문의 품질 문의 구매 문의

General Feature

Series: 070 SERIES

Material Type: PBT+PC

Dimensions: 28.9*28.4*26.5

Physical Feature

Number of Poles: 10

Pitch(mm): 1

Sealed: NO

Color: Natural

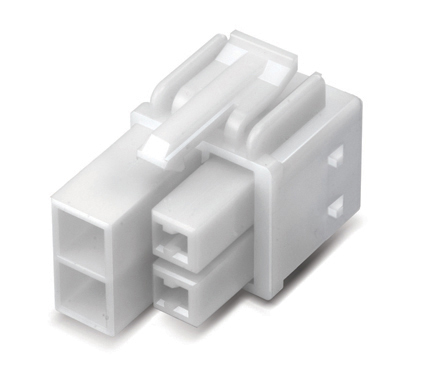

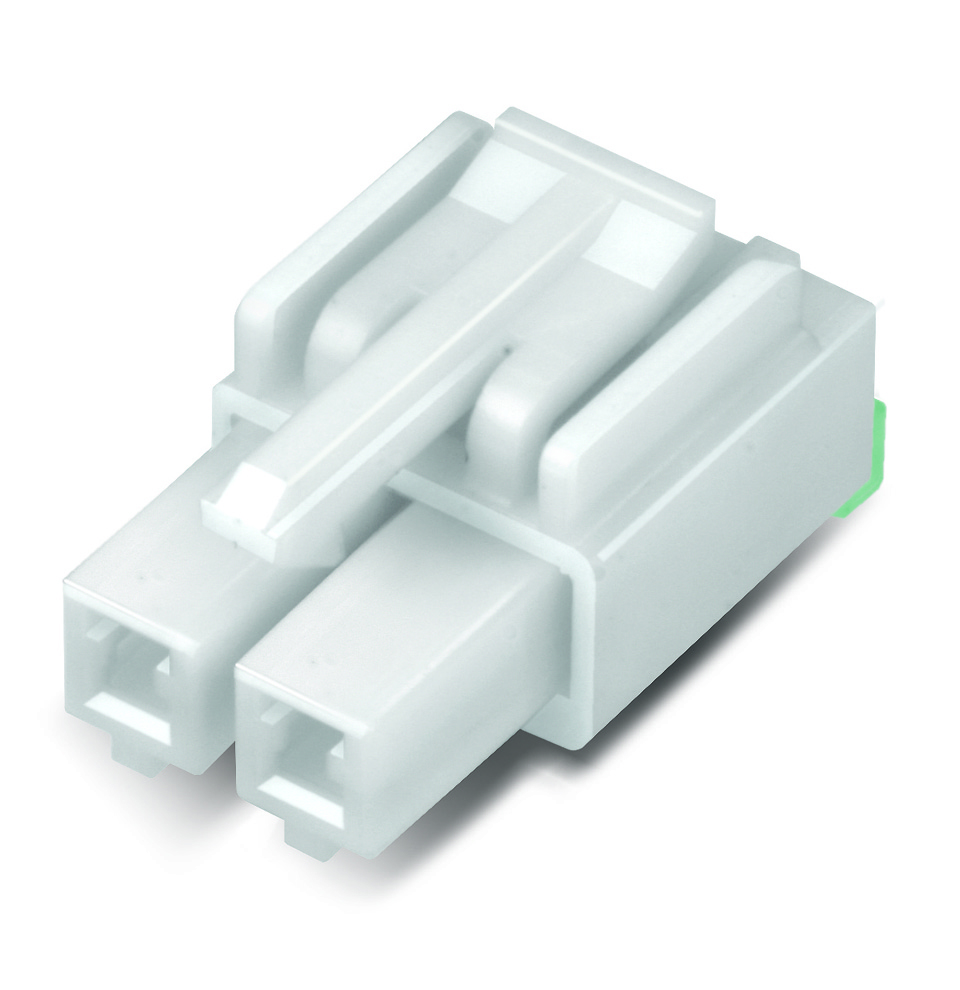

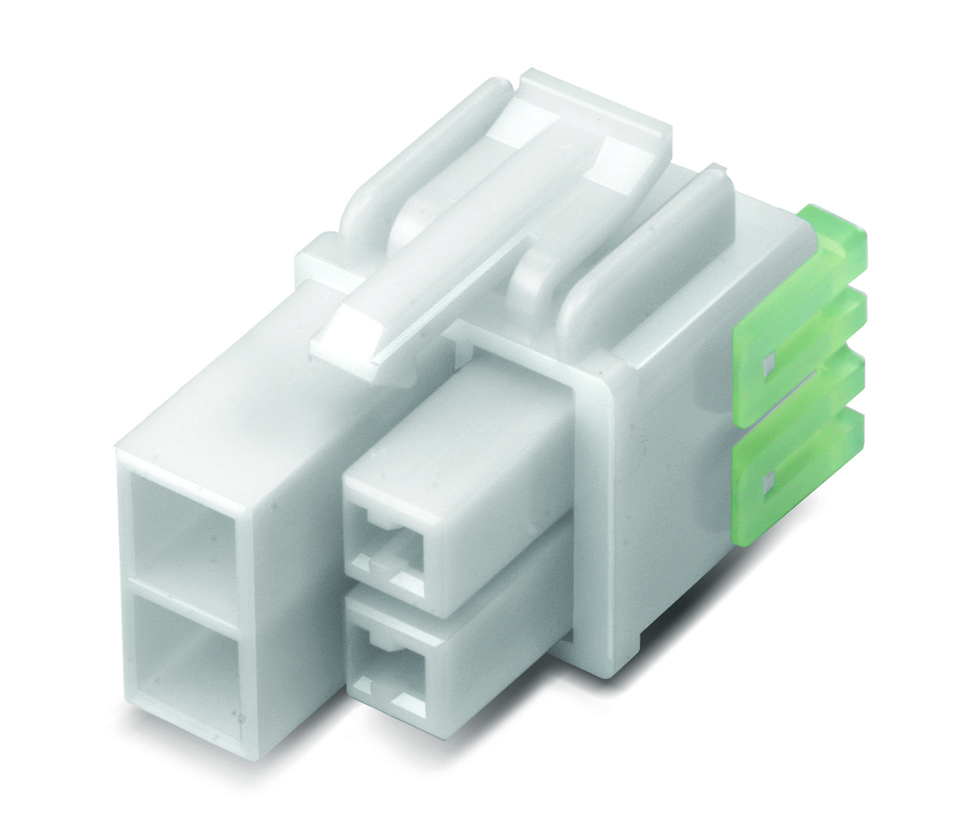

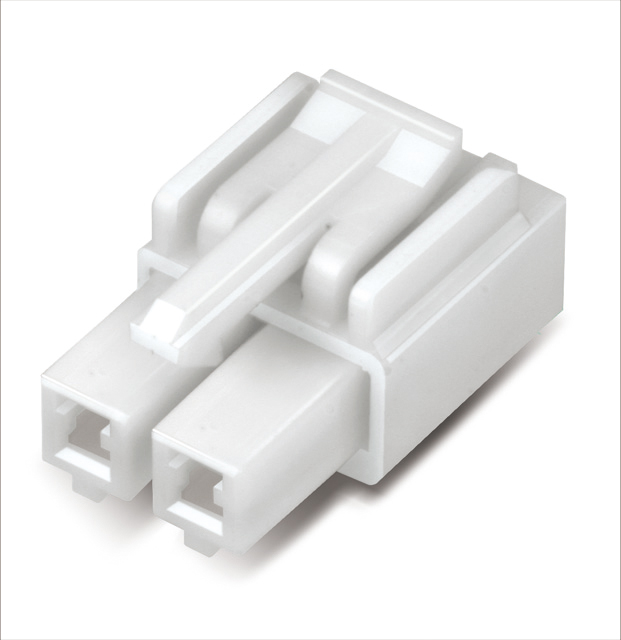

Mating Connector: MG615304t, MG615310t, MG614158

Mating Terminal: h731433-3s

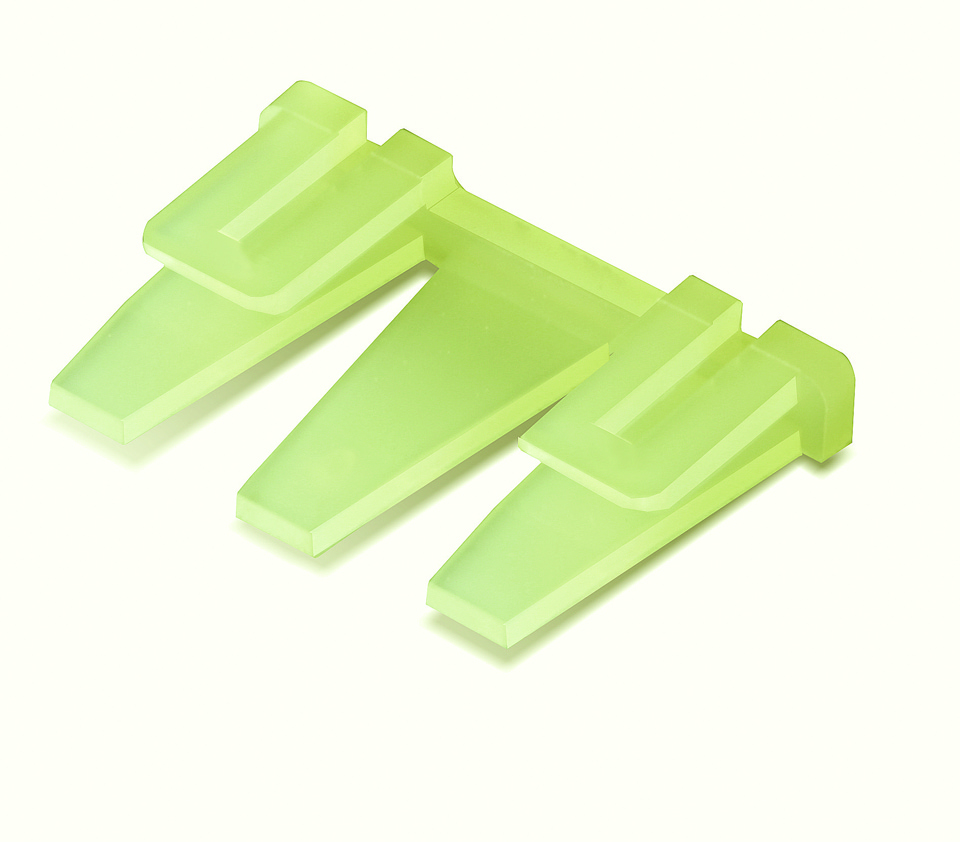

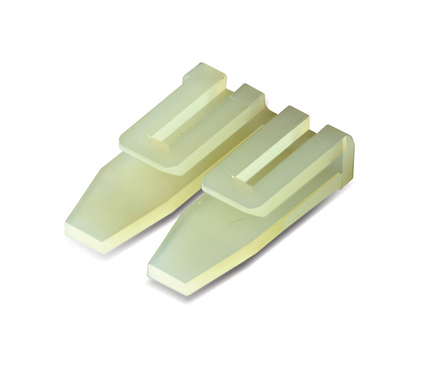

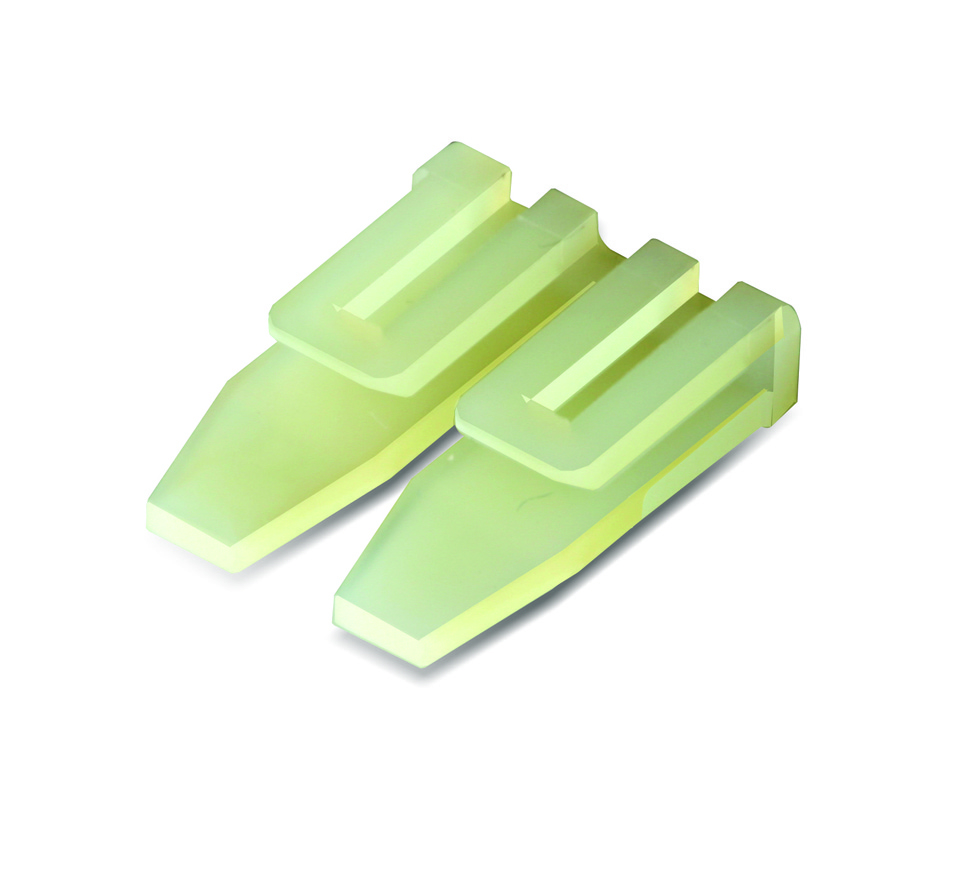

Mating Rear Holder: MG635317, MG634164

GWIT: GWIT(750˚)

Operating Temperature: -40℃ ~ 105℃

Mating Tab Width(in): .070

Flame Rating: V0

Electrical Feature

Terminal Transmits(A): 15

Rated Voltage: 300v,(ac/dc)

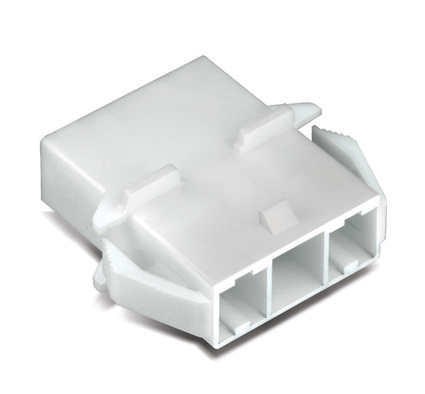

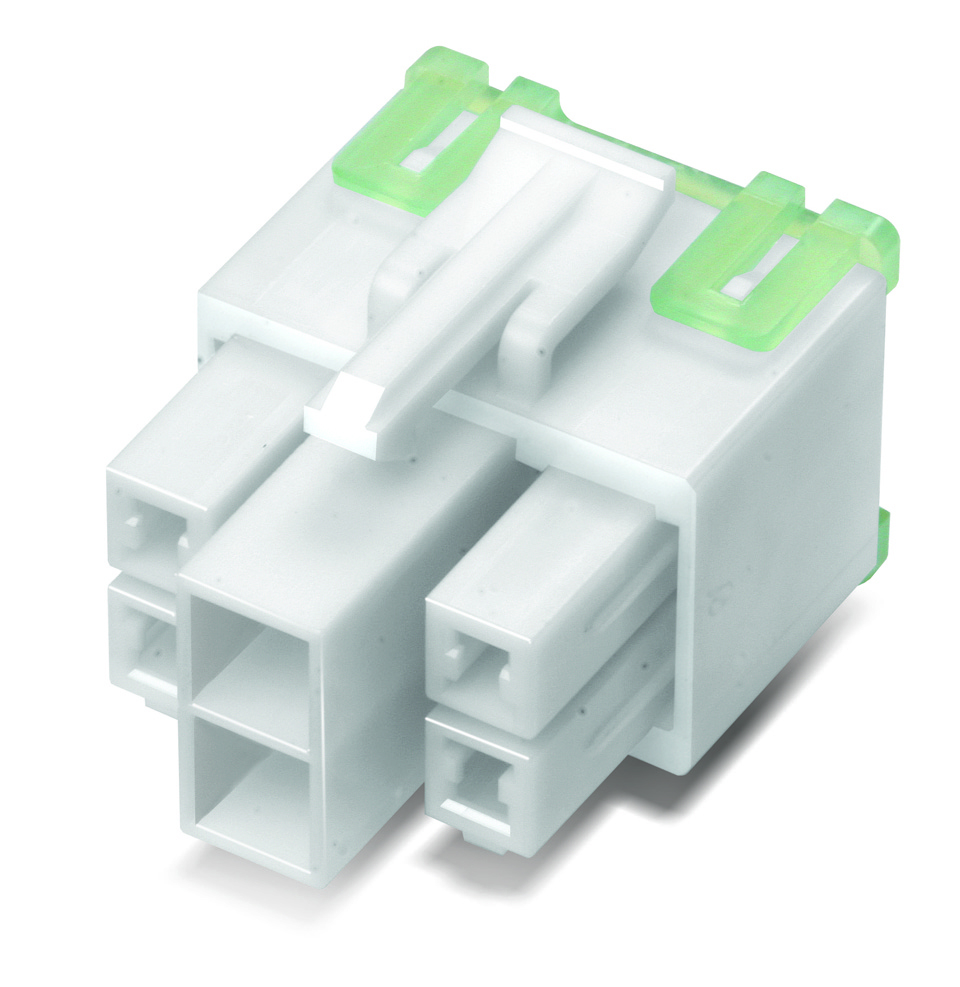

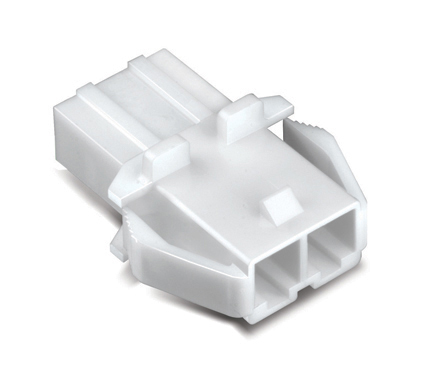

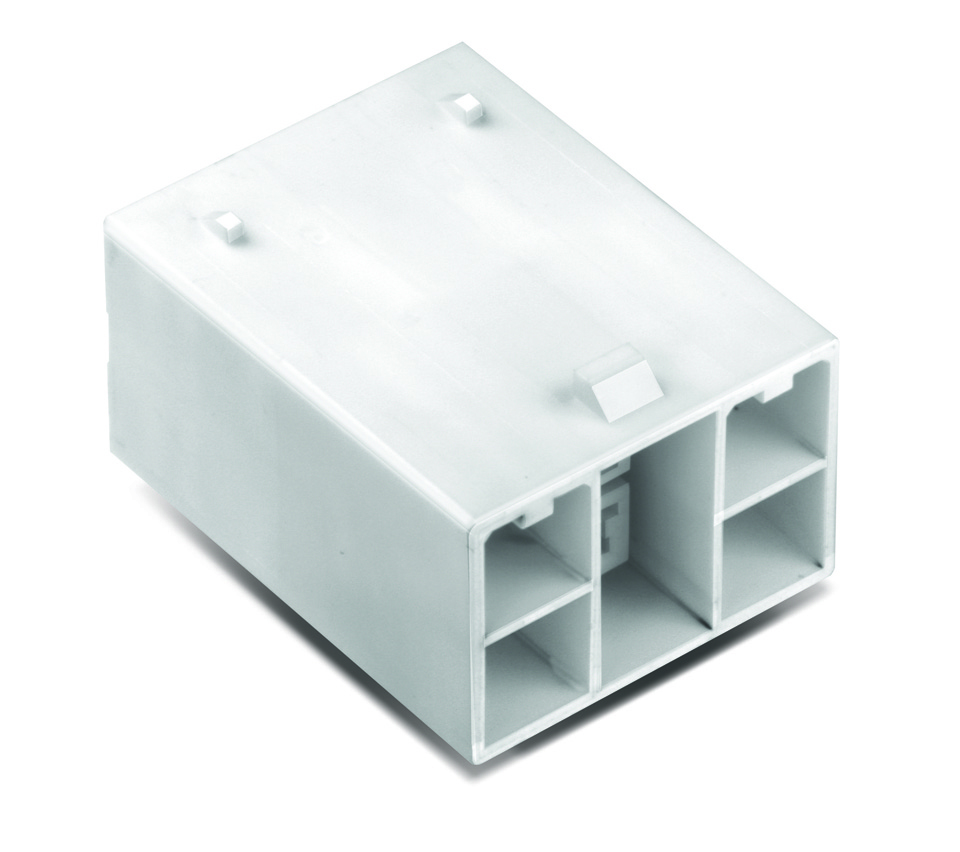

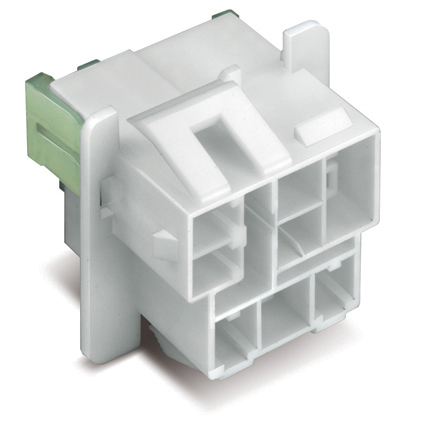

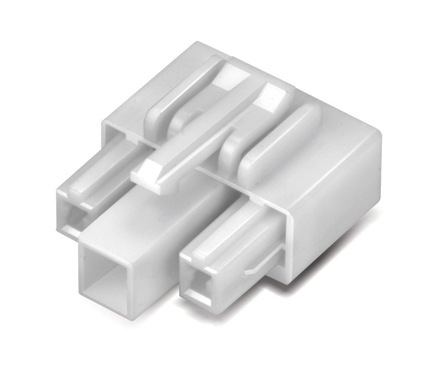

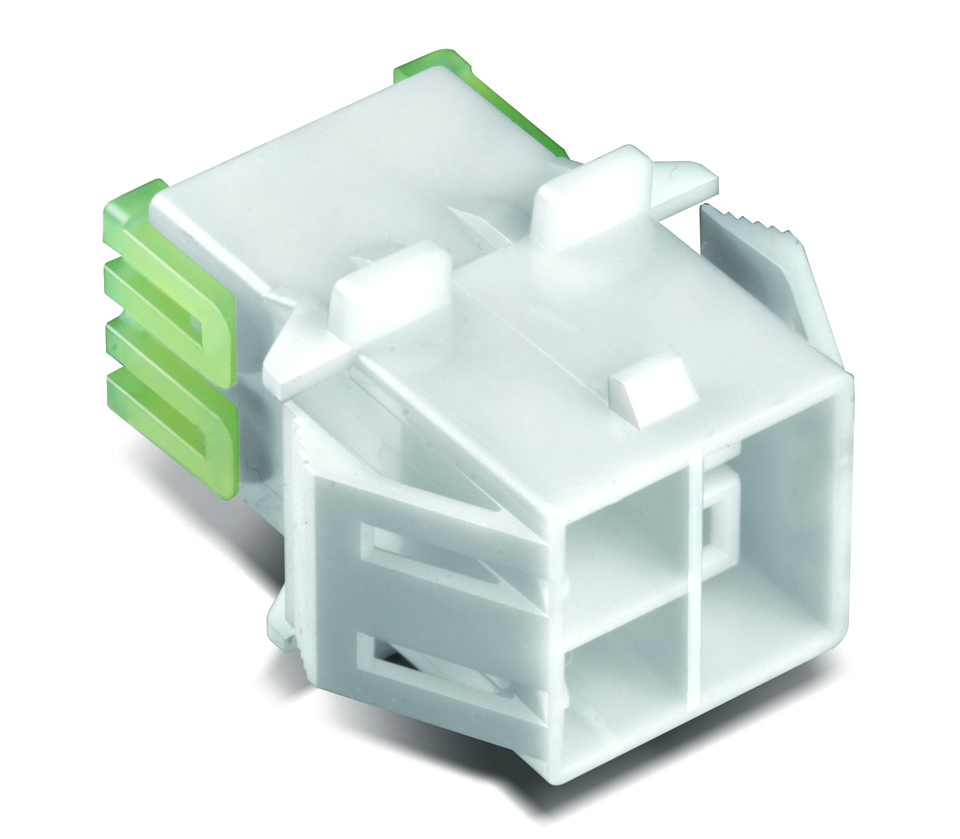

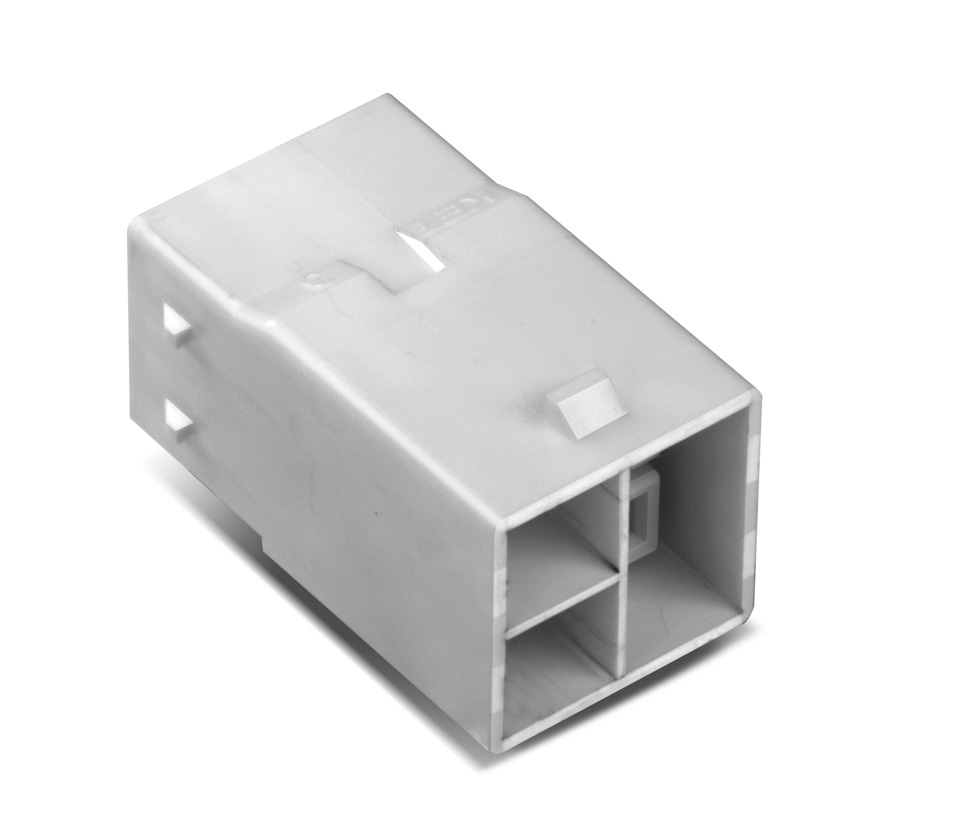

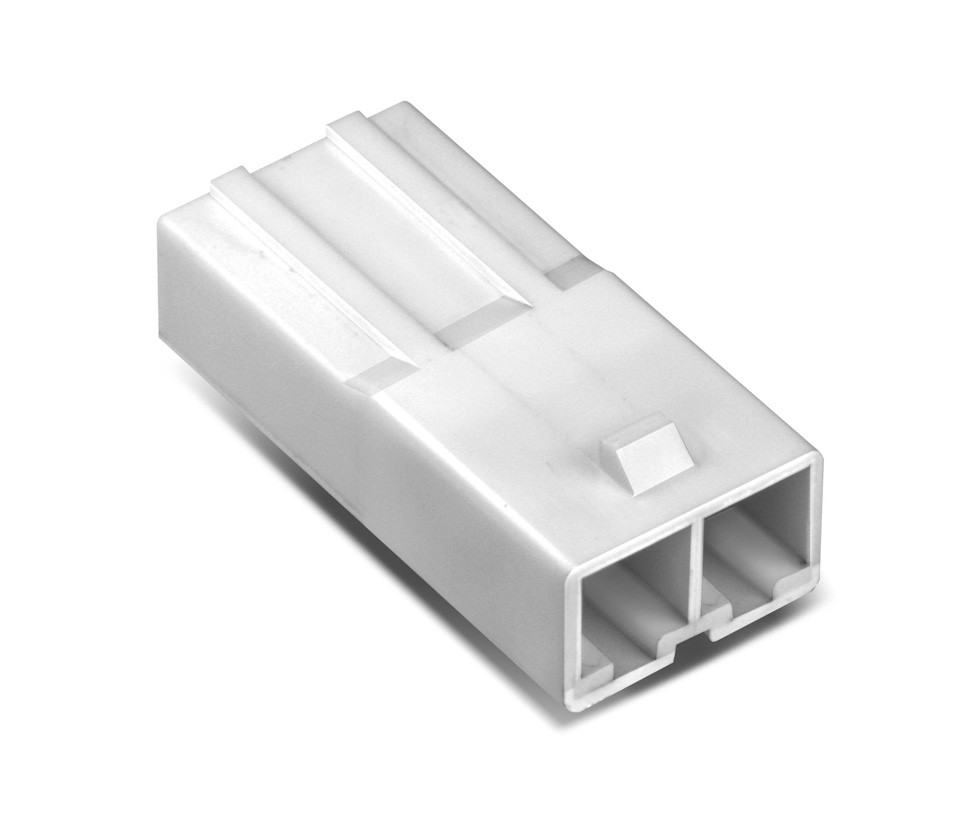

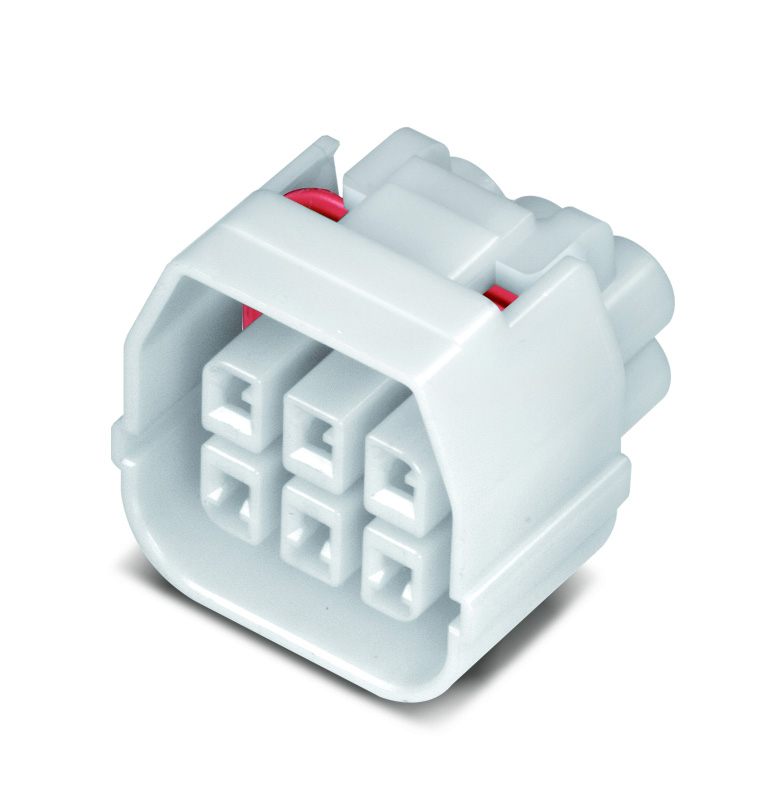

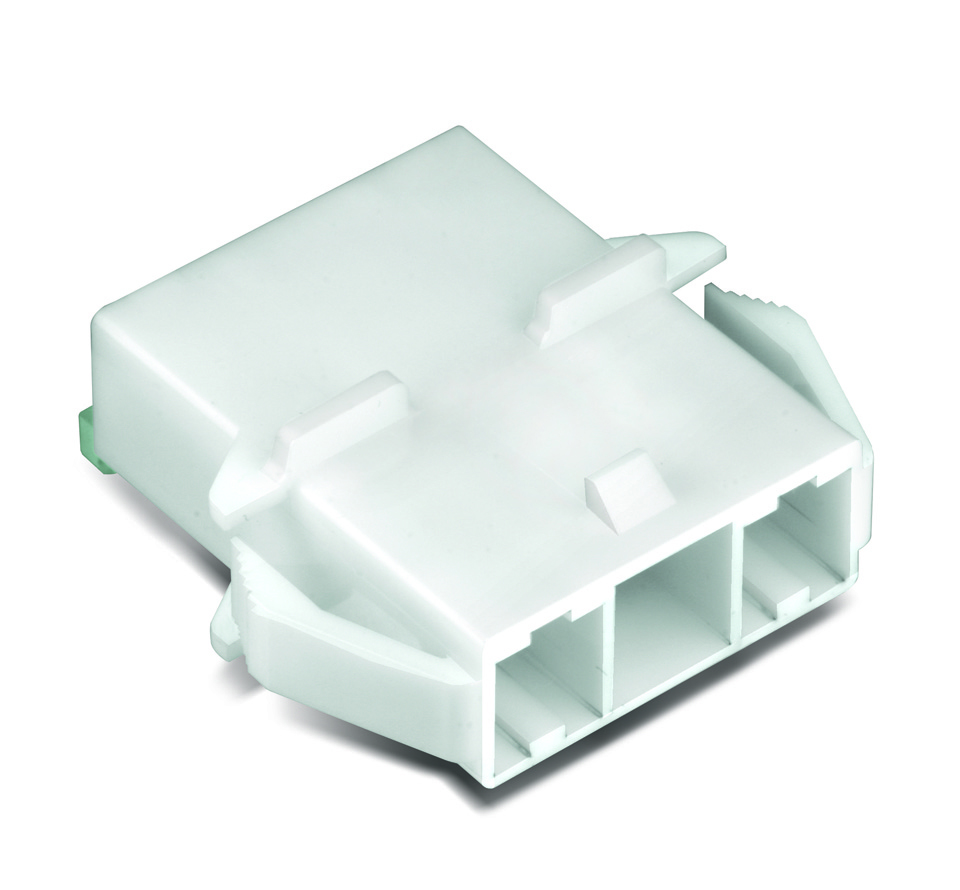

Series Product

/

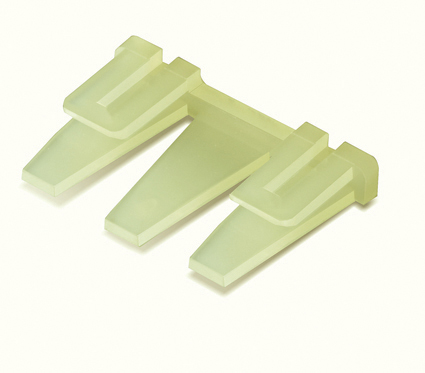

Mating Product

/
