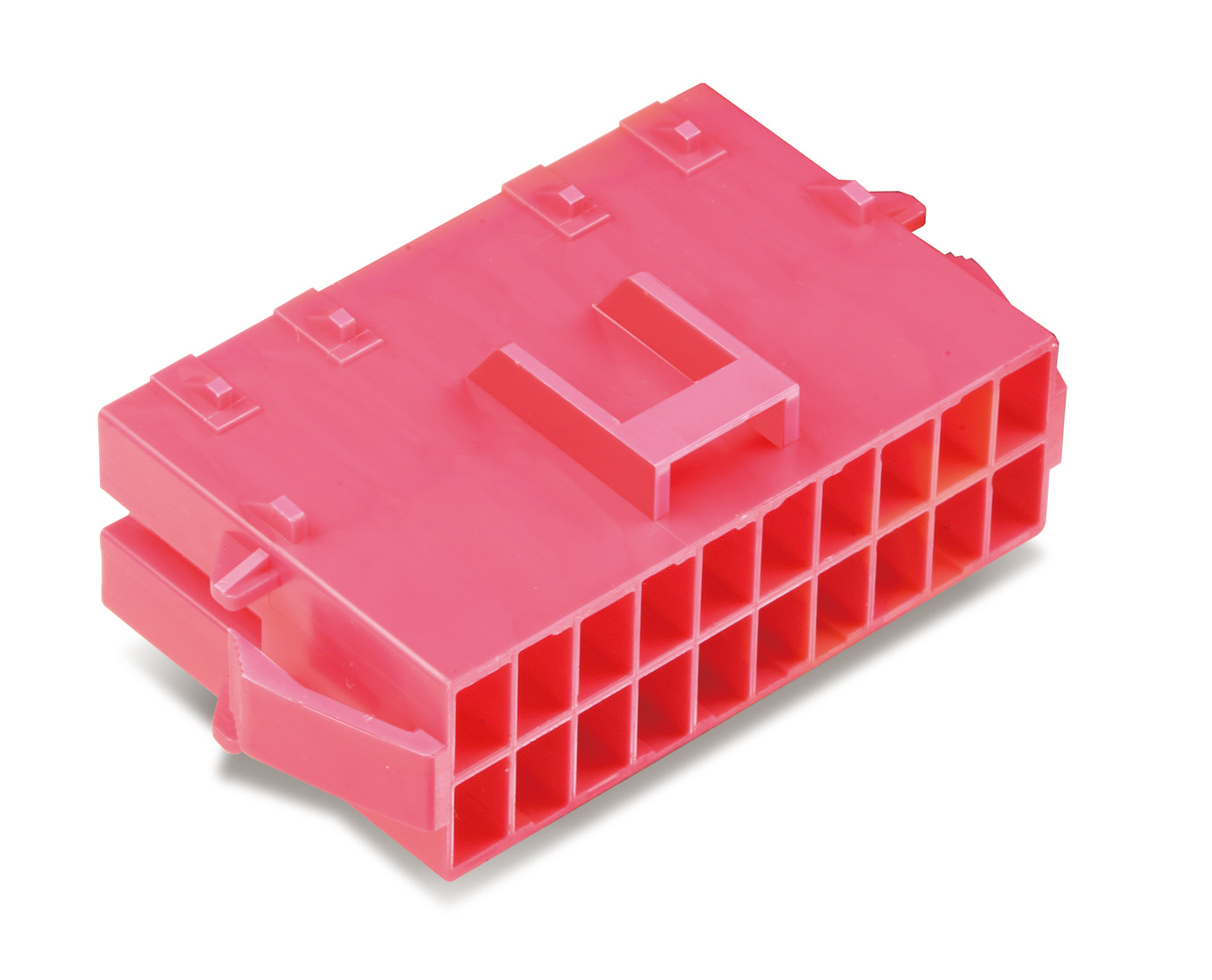

NEW 050 20M HSG WING B TYPE

NEW 050 20M HSG WING B TYPE

Part Number :: MG625483-120

Series :: 050 SERIES

첨부파일

기술 문의 품질 문의 구매 문의

General Feature

Series: 050 SERIES

Material Type: PET+PC

Dimensions: 28.0*42.7*14.0

Physical Feature

Number of Poles: 20

Pitch(mm): 4.2

Sealed: NO

Color: Red

Mating Connector: MG615636-120

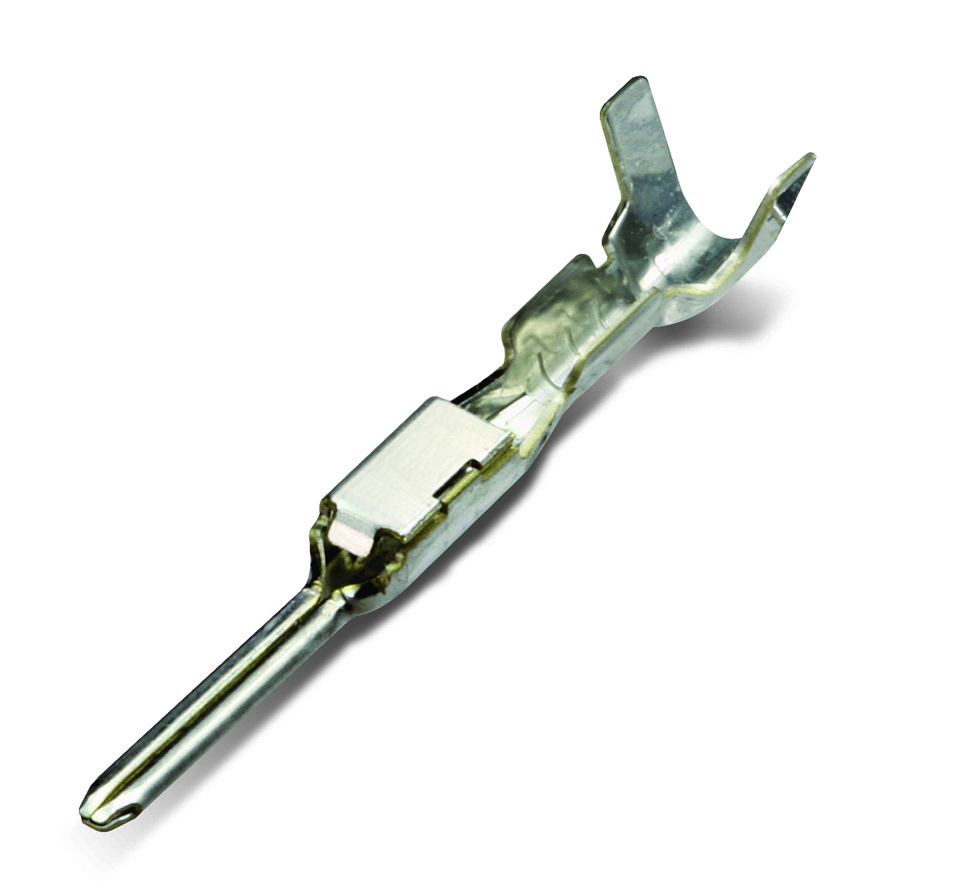

Mating Terminal: ST741175-3, ST741176-3

Mating Rear Holder: MG635620-2

GWIT: GWIT(750˚)

Operating Temperature: -40℃ ~ 105℃

Mating Tab Width(in): .050

Flame Rating: V0

Electrical Feature

Terminal Transmits(A): 8

Rated Voltage: 300v,(ac/dc)
