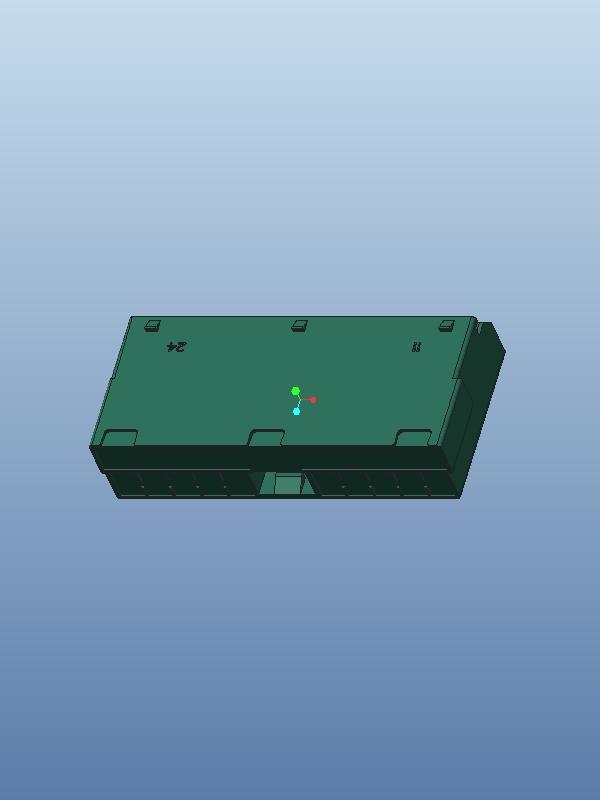

Wire To Wire Connector
- Electronic Parts > Home Appliance Connector > Wire To Wire Connector
- Part Number :
- MG625488-024
- Series :
- HYBRID SERIES
General Feature
- Series
- HYBRID SERIES
- Material Type
- PET+PC
- Dimensions
- 53.9*26.3*11.95
Physical Feature
- Number of Poles
- 24
- Pitch(mm)
- 4.2 / 3.8
- Sealed
- Not Waterproof
- Color
- Natural
- Mating Connector
- MG615675-024

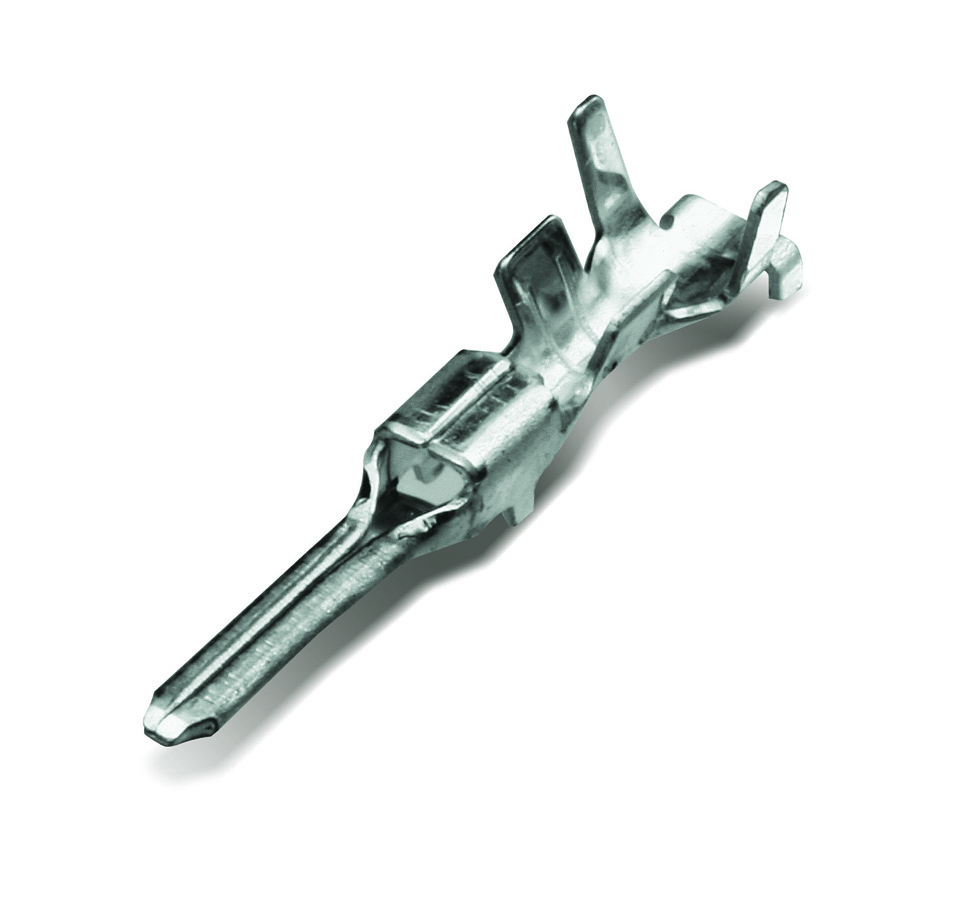

- Mating Terminal
- ST741084-3, ST741085-3, ST741086-3, ST741388-3s, ST741388-3t
- Mating Rear Holder
- MG635955-010, MG635956-014
- GWIT
- GWIT(750˚)
- Operating Temperature
- -40℃ ~ +105℃
- Mating Tab Width(in)
- 060 / 035
- Flame Rating
- V0
Electrical Feature
- Terminal Transmits(A)
- 7(060) / 3(035)
- Rated Voltage
- 300v(ac/dc), 110v(ac/dc)
Mating Product
/
