Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG640927
- Series :
- 250 D/L SERIES
General Feature
- Series
- 250 D/L SERIES
- Dimensions
- 27.25*25.3*27.2
- Material Type
- PA66
Physical Feature
- Sealed
- NO
- Color
- Natural
- TPA
- NO
- Number of Poles
- 5
- Mating Rear Holder
- MG631317
- Mating Terminal
- ST730467-3, ST730468-3, ST730469-3
- Pitch(mm)
- 8.4
- Mating Tab Width(in)
- .250
Electrical Feature
- Wire Range
- AVSS0.3~0.5,AVSS0.85~1.25,AVSS2.0,AVS3.0
- Insulation Resistance
- DC 500V 100MΩ MIN
- Contact Resistance
- 3mΩ
- Terminal Transmits(A)
- 20
Series Product
/
-
250 D/L 8F HOUSING
-
250 D/L 6M HOUSING
-
250 D/L 4M HOUSING
-
250 D/L 6F HOUSING
-
250 D/L 8M HOUSING
-
250 D/L 1M HOUSING
-
250 D/L 1F HOUSING
-
250 D/L 2M HOUSING
-
250 D/L 4F HOUSING
-
250 D/L 6F HOUSING
-
250 D/L 4M HOUSING
-
250 D/L 2M HOUSING
-
250 D/L 4F HOUSING
-
250 D/L 2F HOUSING
-
RELAY 5M CONN'T ASSY
-
250 D/L 3F HOUSING
-
250 D/L 4M HOUSING
-
RELAY 5F CONN'T ASSY
-
250 D/L 8M HOUSING
-
250 D/L 1F HOUSING
-
RELAY 5M CONN'T ASSY
-
RELAY 5F CONN'T ASSY
-

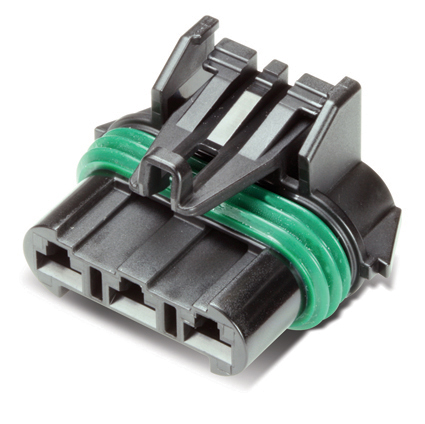

630 WP 3F Connector
-
