PCB Connector
- Automotive Connectors > PCB Connector
- Part Number :
- MG641732
- Series :
- 050 SERIES
General Feature
- Series
- 050 SERIES
- Dimensions
- 28.2*29.5*16.8
Physical Feature
- Connector Type
- DIP-VRT
- Color
- Natural
- Number of Poles
- 10
- Mating Connector
- MG651580
- Pitch(mm)
- 2.5
- Mating Tab Width(in)
- .050
Electrical Feature
- Insulation Resistance
- DC 500V 100MΩ MIN
- Contact Resistance
- 5mΩ MAX (Initial)
- Terminal Transmits(A)
- 5

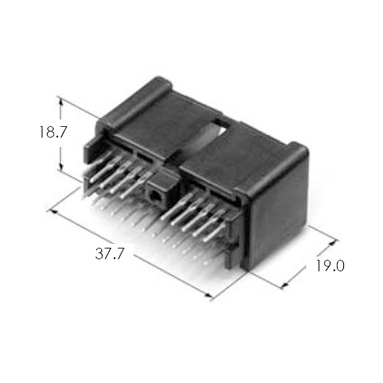

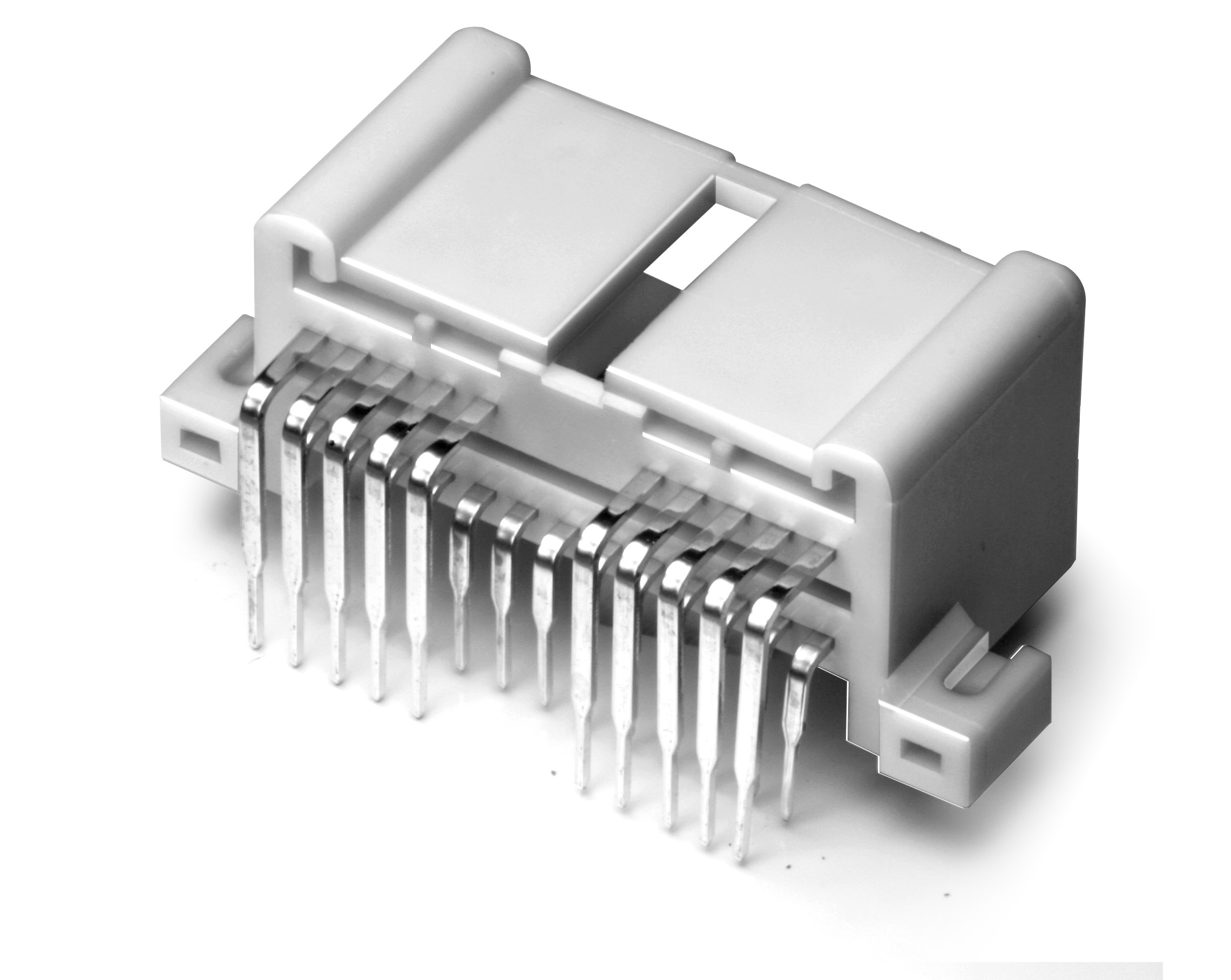

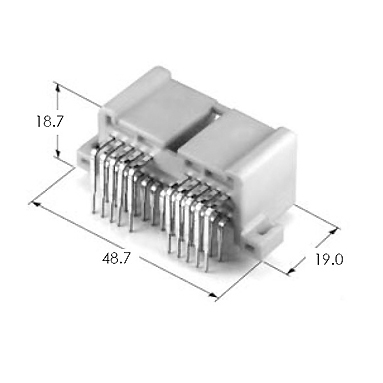

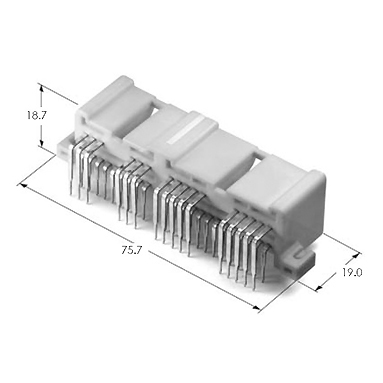

Series Product
/
