0509 16F CONN'T ASSY
0509 16F CONN'T ASSY
Part Number :
MG641767-4
Series :
HYBRID SERIES
첨부파일
General Feature
Series
HYBRID SERIES
Dimensions
36.80*28.5*32.9
Material Type
PBT
Physical Feature
Sealed
YES
Color
Gray
Number of Poles
16
TPA
YES

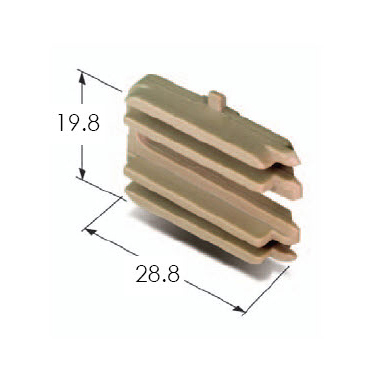

Mating Rear Holder
MG631766-7

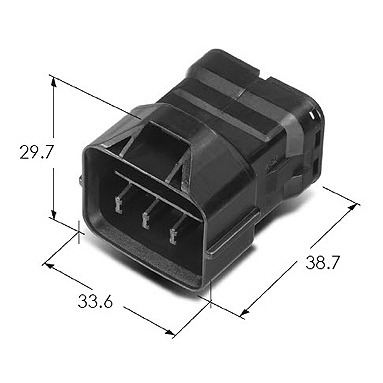

Mating Connector
MG611764
Mating Terminal
ST730622-3, ST730689-3, ST730732-3, ST730733-3
Electrical Feature
Wire Range
050:CAVS 0.3~0.5 CAVS 0.85,090II:AVSS 0.3~0.5,AVSS(CAVS)0.85~1.25,AVSS 2.0
Insulation Resistance
DC500V 100MΩ Min
Contact Resistance
050:5mΩ MAX. (Initial),090II:3mΩ MAX. (Initial)
