Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG642618
- Series :
- 040 SERIES
- Series
- 040 SERIES
- Dimensions
- 31.8*28.5*29.3
- Material Type
- PBT
- Sealed
- YES
- Color
- Natural
- TPA
- YES
- Number of Poles
- 10

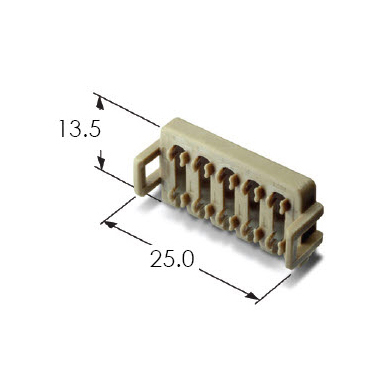

- Mating Rear Holder
- MG632619-7
- Mating Terminal
- ST730924-3, ST730925-3
- Pitch(mm)
- 3.9
- Mating Tab Width(in)
- .040
- Wire Range
- CAVS 0.3~0.5,CAVUS 0.3~0.5,AVX0.5,AEX0.5,AVXF0.5,AEXF0.5,CAVS0.85,CAVUS0.85,
- Insulation Resistance
- DC 500V 100MΩ MIN
- Contact Resistance
- 5mΩ
- Terminal Transmits(A)
- 5
-
