Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG642928-5
- Series :
- 312 II SERIES
General Feature
- Series
- 312 II SERIES
- Dimensions
- 35.00*31.40*43.40
- Material Type
- PBT
Physical Feature
- Sealed
- YES
- Color
- Black
- Number of Poles
- 2
- TPA
- YES

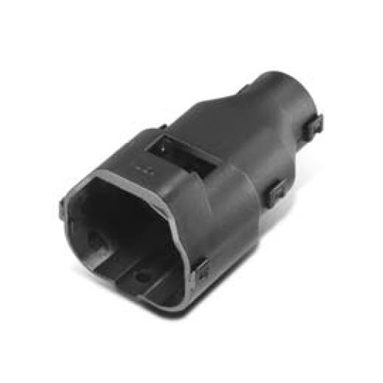

- Mating Rear Holder
- MG632935-5
- Mating Connector
- MG652934-5
- Mating Terminal
- ST730650-3
- Pitch(mm)
- 6.2
- Mating Tab Width(in)
- .312
Electrical Feature
- Wire Range
- AVS 1.25,AVS 2.0-,AVS 3.0,AVS 5.0,AEXF 5.0,AVS 8.0,AEXF 8.0
- Insulation Resistance
- DC 500V 100MΩ MIN
- Contact Resistance
- 10mΩ MAX (Initial)
- Terminal Transmits(A)
- 42
