RK 08MGY-X1 HS'G
RK 08MGY-X1 HS'G
Part Number :
MG643236-4
Series :
HYBRID SERIES
첨부파일
General Feature
Series
HYBRID SERIES
Dimensions
35.7*47.0*23.55
Material Type
PBT
Physical Feature
Sealed
NO
Color
Gray
TPA
YES
Number of Poles
9
Mating Clip

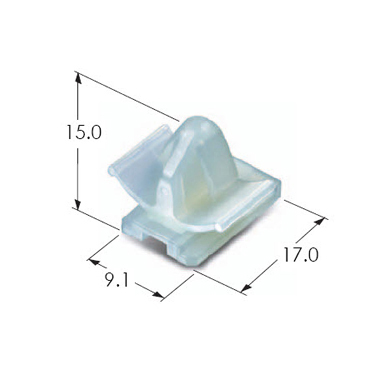

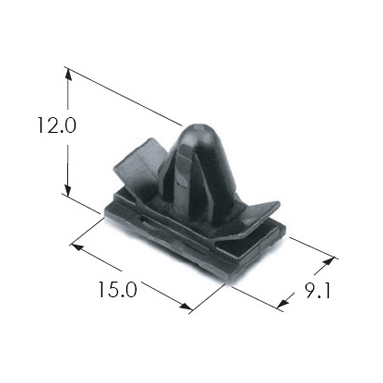

MG631850-5, MG632579
Mating Terminal
ST740926-3, ST740927-3, ST740576-3, ST740577-3
Mating Connector

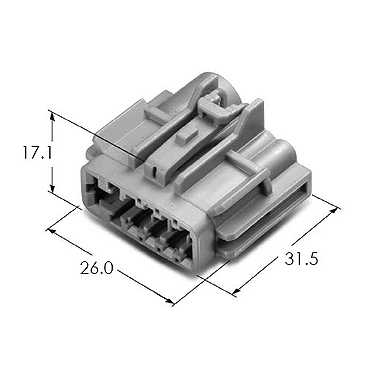

MG613234
Electrical Feature
Wire Range
040:CAVS0.3~0.5,CAVSUS0.3~0.5,CAVS0.85,CAVUS0.85,250:AVSS0.5~1.25,AVSS2.0,AVS3.0
Insulation Resistance
040:DC 500V 100MΩ Min,250:DC 500V 100MΩ Min
Contact Resistance
040:5mΩ Max(Initial),250:3mΩ Max(Initial)
