Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG643383-4
- Series :
- 040 SERIES
- Series
- 040 SERIES
- Dimensions
- 27.35*27.35*29.3
- Material Type
- PBT
- Sealed
- YES
- Color
- Gray
- Number of Poles
- 8
- TPA
- YES

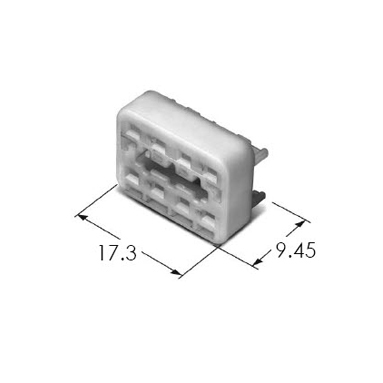

- Mating Rear Holder
- MG633382
- Mating Connector
- MG613406
- Mating Terminal
- ST730924-3, ST730925-3
- Pitch(mm)
- 3.9
- Mating Tab Width(in)
- .040
- Wire Range
- CAVS0.3~0.5, CAVUS 0.3~0.5, AVX/AEX0.5, AVXF/AEXF0.5, CAVS 0.85,CAVUS 0.85,
- Insulation Resistance
- DC 500V 100MΩ MIN
- Contact Resistance
- 5mΩ MAX (Initial)
- Terminal Transmits(A)
- 5
-
