Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG643746-5
- Series :
- 050 SERIES
- Series
- 050 SERIES
- Dimensions
- 23.0*26.8*18.5
- Material Type
- PBT
- Sealed
- YES
- Color
- Black
- Number of Poles
- 3
- TPA
- YES

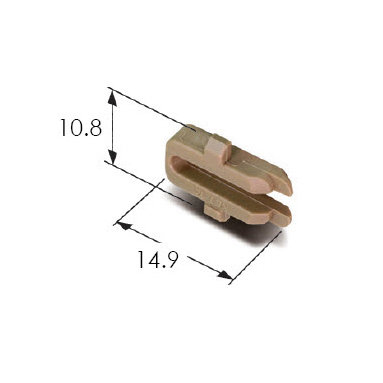

- Mating Rear Holder
- MG631233-7
- Mating Terminal
- ST730622-3, ST731316-3, ST731103-3, ST731188-3
- Pitch(mm)
- 4.1
- Mating Tab Width(in)
- .050
- Wire Range
- CHFUS0.22, AVSS0.22, AVSS0.3, AVXF0.3, AESSXF0.3, AVS0.3~0.5, CAVS0.3~0.5, CAVS0.85
- Insulation Resistance
- DC 500V 100MΩ MIN
- Contact Resistance
- 5mΩ MAX (Initial)
- Terminal Transmits(A)
- 5
-
