060 WP 6F ASSY

060 WP 6F ASSY

Part Number :: MG645579-5

Series :: 060 SERIES

첨부파일

기술 문의 품질 문의 구매 문의

General Feature

Series: 060 SERIES

Dimensions: 23.4*27.4*24.7

Material Type: PBT

Physical Feature

Sealed: YES

Color: Black

Number of Poles: 6

TPA: YES

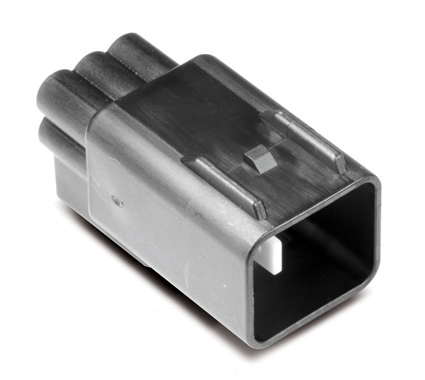

Mating Connector: MG655640

Mating Terminal: ST731368, ST731369-3

Pitch(mm): 5

Mating Tab Width(in): .060

Electrical Feature

Wire Range: AEXF(AVSSXF) 0.3-,AEXF(AVSSXF) 0.5,AEXF(AVSSXF) 0.85-,AEXF(AVSSXF) 1.25

Insulation Resistance: DC 500V 100MΩ MIN

Contact Resistance: 10mΩ MAX (Initial)

Terminal Transmits(A): 10
