PCB Connector
- Automotive Connectors > PCB Connector
- Part Number :
- MG645584-5
- Series :
- 064 SERIES
General Feature
- Series
- 064 SERIES

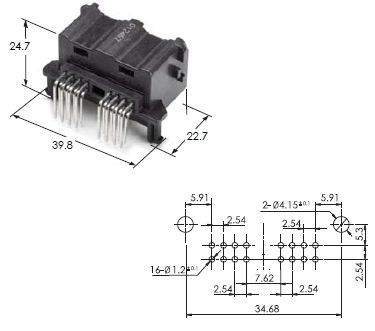

- Dimensions
- 39.8*22.7*24.7
Physical Feature
- Connector Type
- DIP-Bandolier Type-HZT
- Color
- Black
- Number of Poles
- 16
- Mating Connector
- MG654243, MG654863
- Pitch(mm)
- 2.54
- Mating Tab Width(in)
- .025
Electrical Feature
- Insulation Resistance
- DC 500V 100MΩ MIN
- Contact Resistance
- 10mΩ Max(Initial)
- Terminal Transmits(A)
- 5

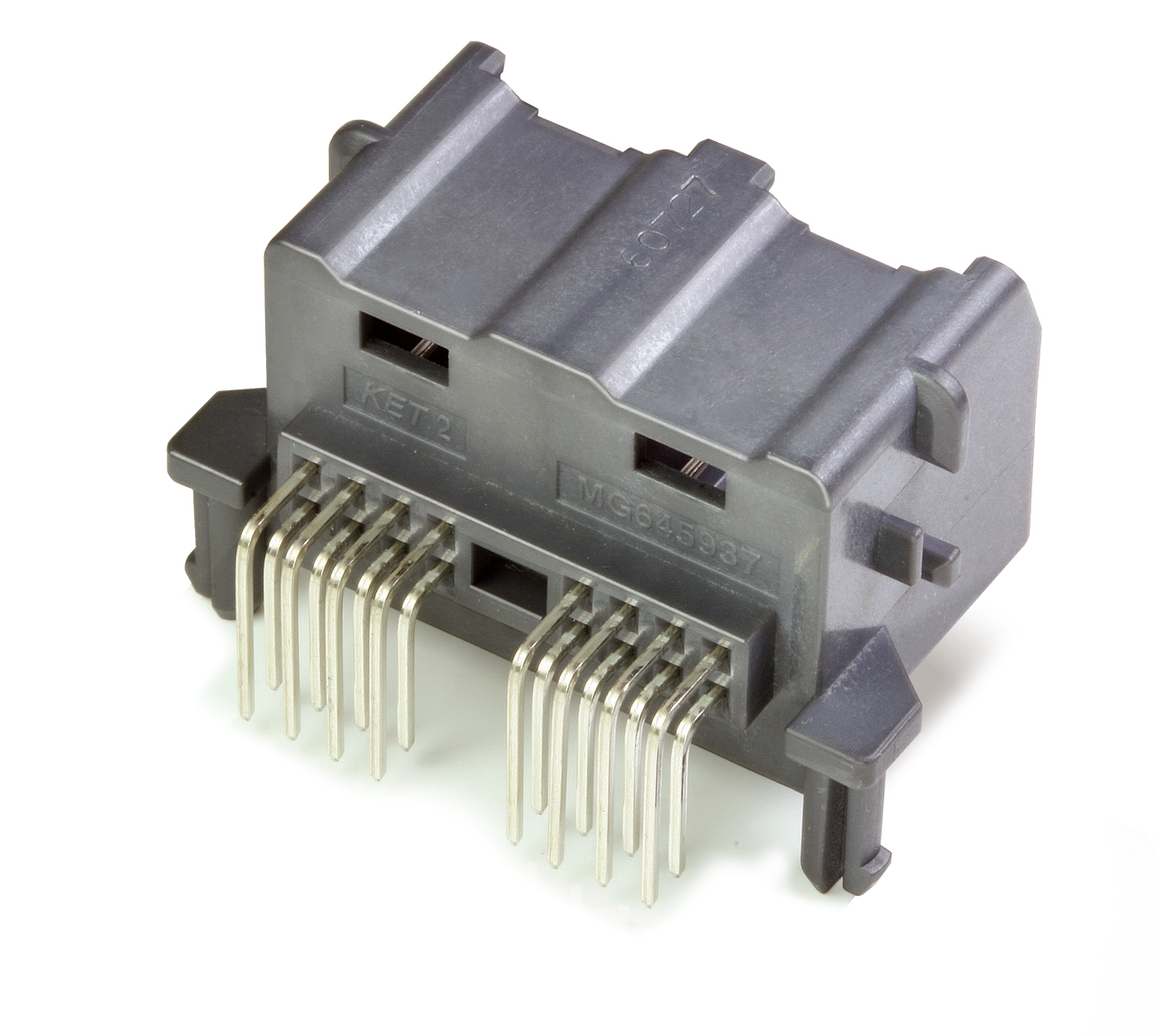

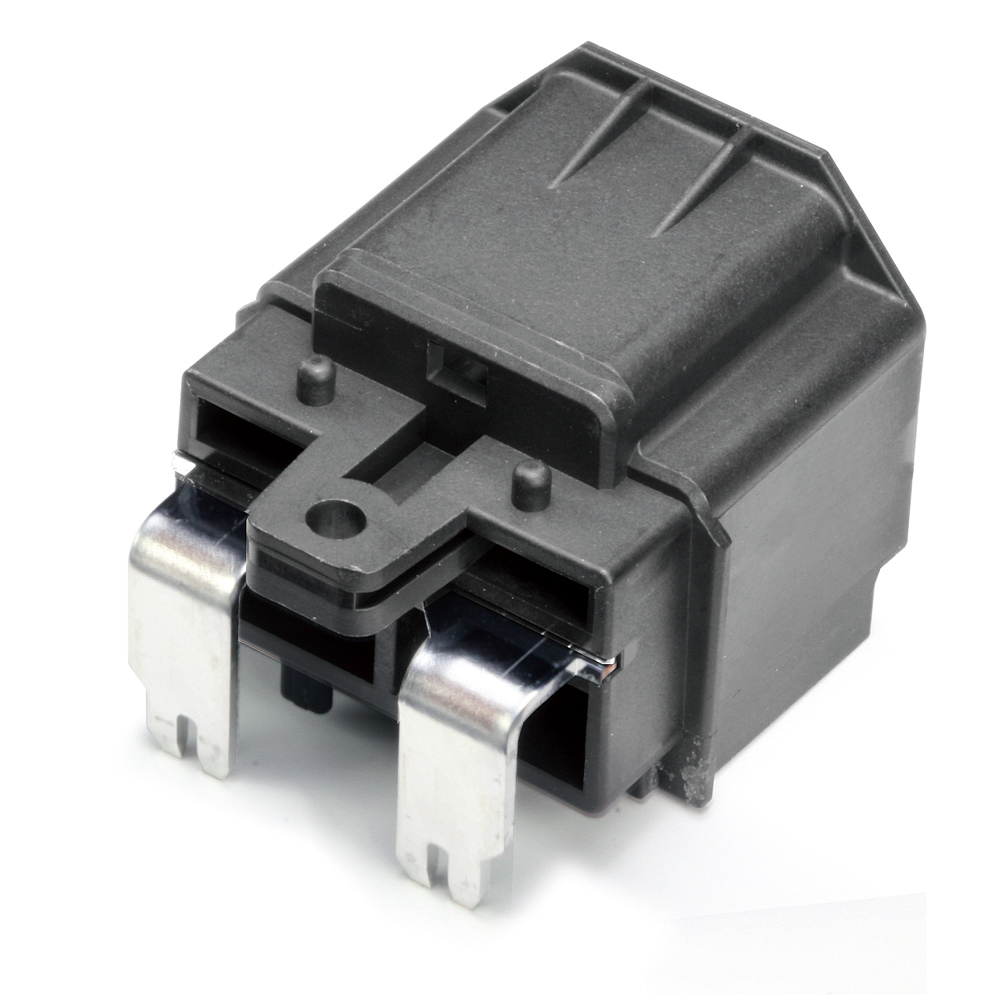

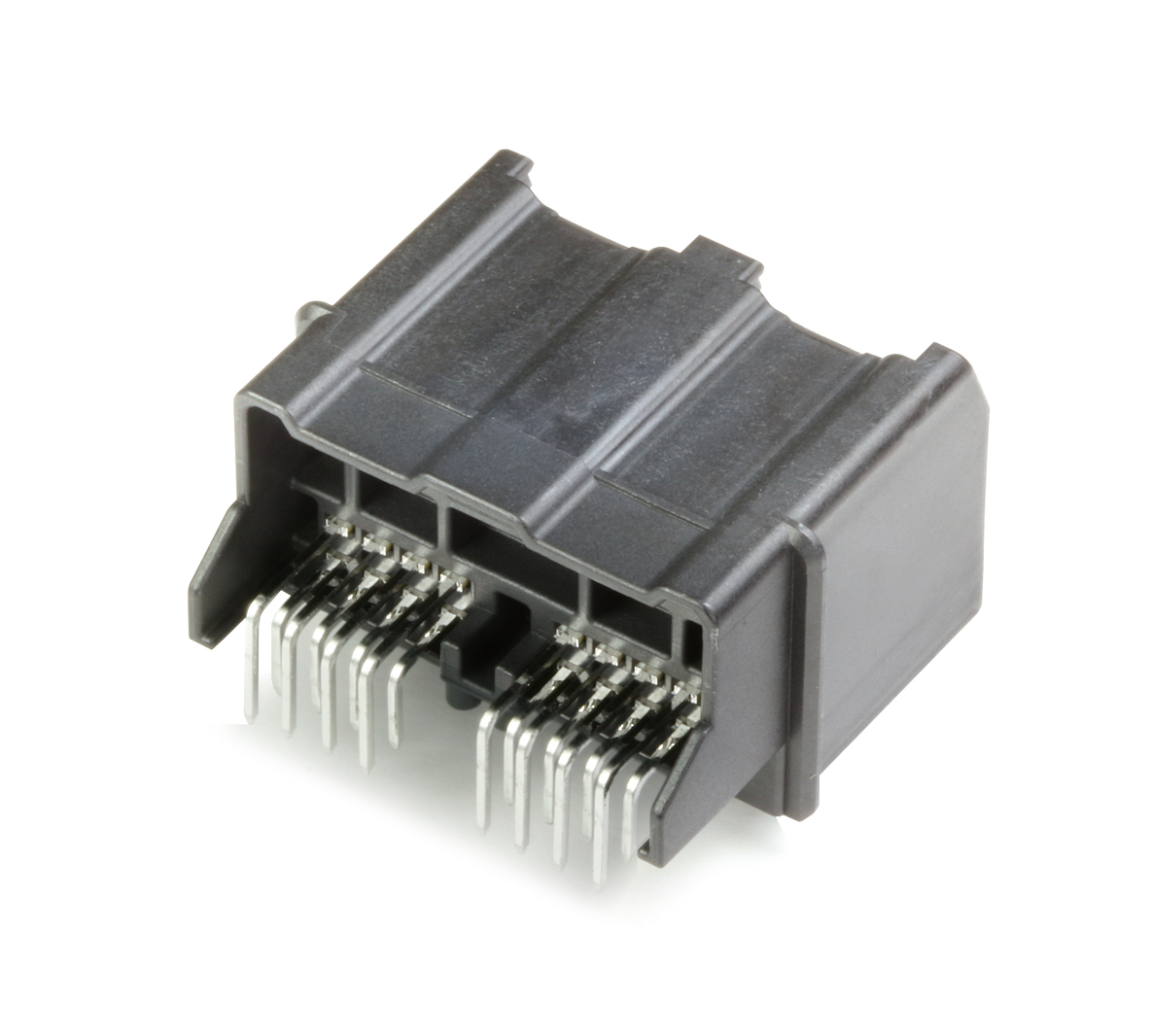

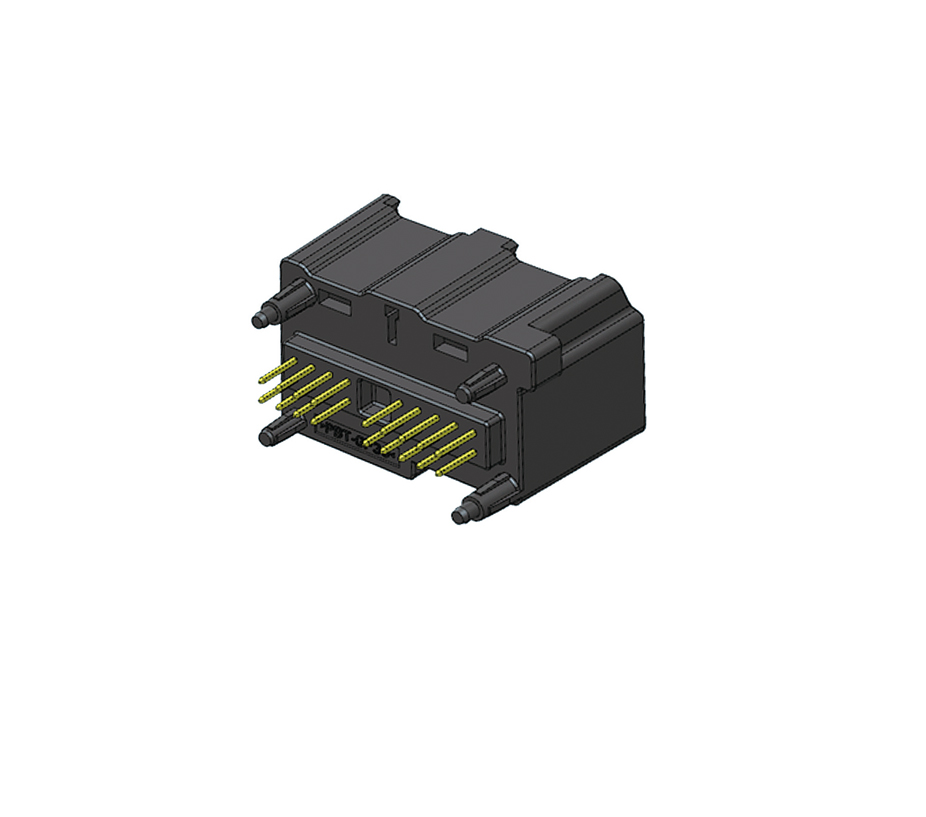

Series Product
/
