Front Door 45M ASSY (FAKRA)

Front Door 45M ASSY (FAKRA)

Part Number :: MG645857

Series :: DOOR CONN'T SERIES

첨부파일

2D PDF

기술 문의 품질 문의 구매 문의

General Feature

Series: DOOR CONN'T SERIES

Dimensions: 82.64*49.4*38.15

Material Type: PBT

Physical Feature

Sealed: YES

Color: Natural

Primary Locking Type: HSG Lance

TPA: YES

Number of Poles: 45

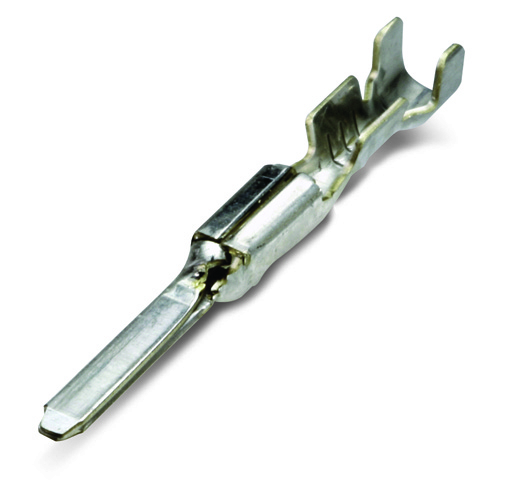

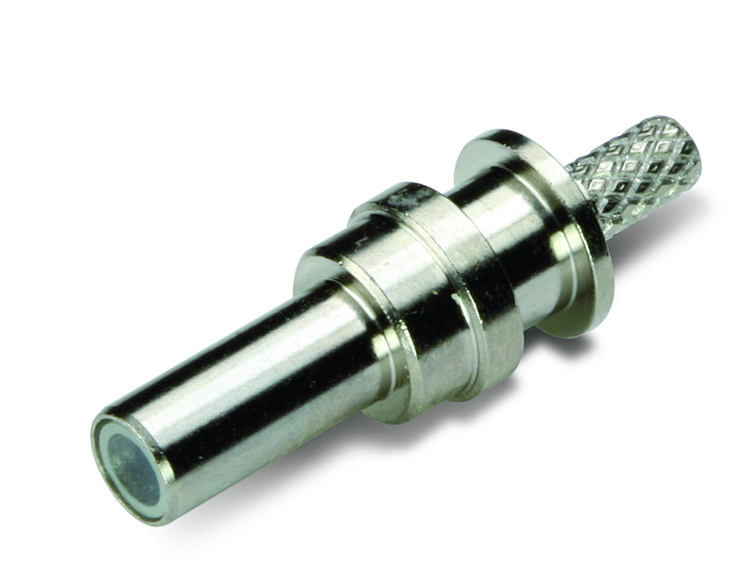

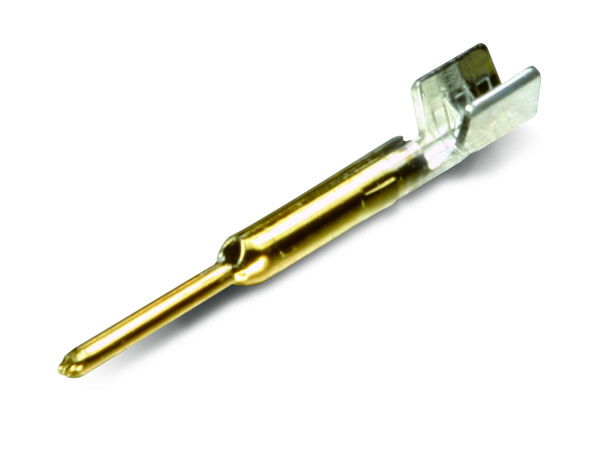

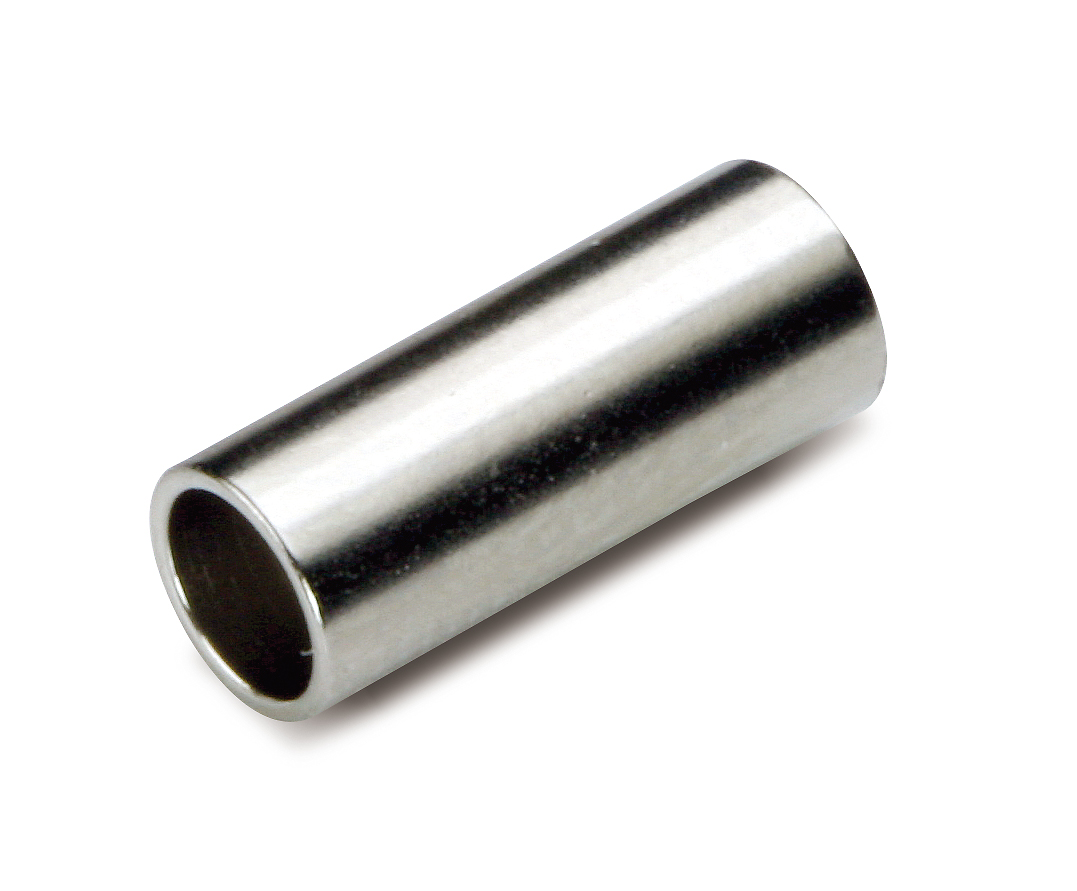

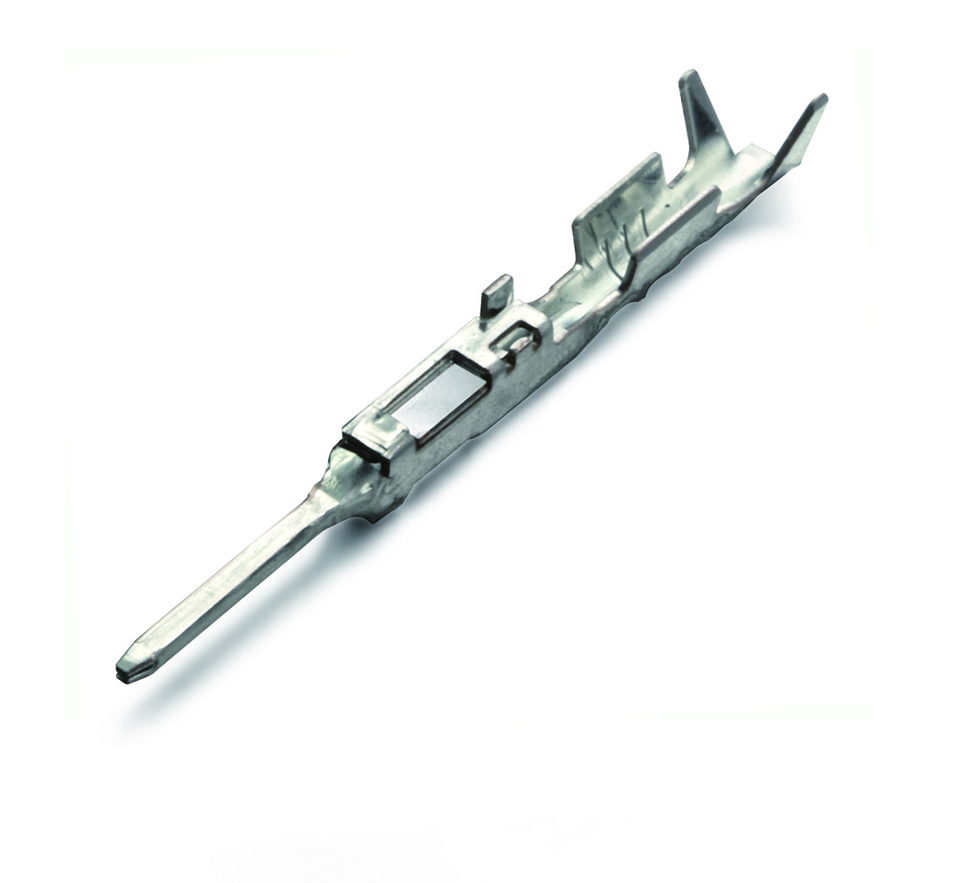

Mating Terminal: ST741345-3, ST741346-3, ST741331-3, ST741332-3, ST741333-3, ST741285-3, ST741286-3, ST741287-3, kr30201-20, kr30301-20, kr00404-20

Mating Connector: MG655808

Electrical Feature

Wire Range: 025:CHFUS0.22,AVSS0.3~0.5,CIVUS0.35~0.5,060:CHFUS0.22,AVSS0.22,AVSS0.3~0.5,AEXF0.5,CIVUS0.35~0.5,FLRY0.3~0.5,AVSS0.85~1.25,AEXF0.85,AVSS(0.3+0.3,0.3+0.5,0.5+0.5)FLRY0.75~1.5,CIVUS(0.35+0.35,0.5+0.5),AVSSXF1.0,110:AVSS0.3~0.5,AVSS0.85~1.25,CIVUS0.35+0.35,AVSS2.0.AVS3.0

Insulation Resistance: 025:DC500V 100MΩ Min,060:DC500V 100MΩ Min,110:DC500V 100MΩ Min

Contact Resistance: 025:10mΩ MAX(Initial),060:5mΩ MAX(Initial),110:3mΩ MAX(Initial)
