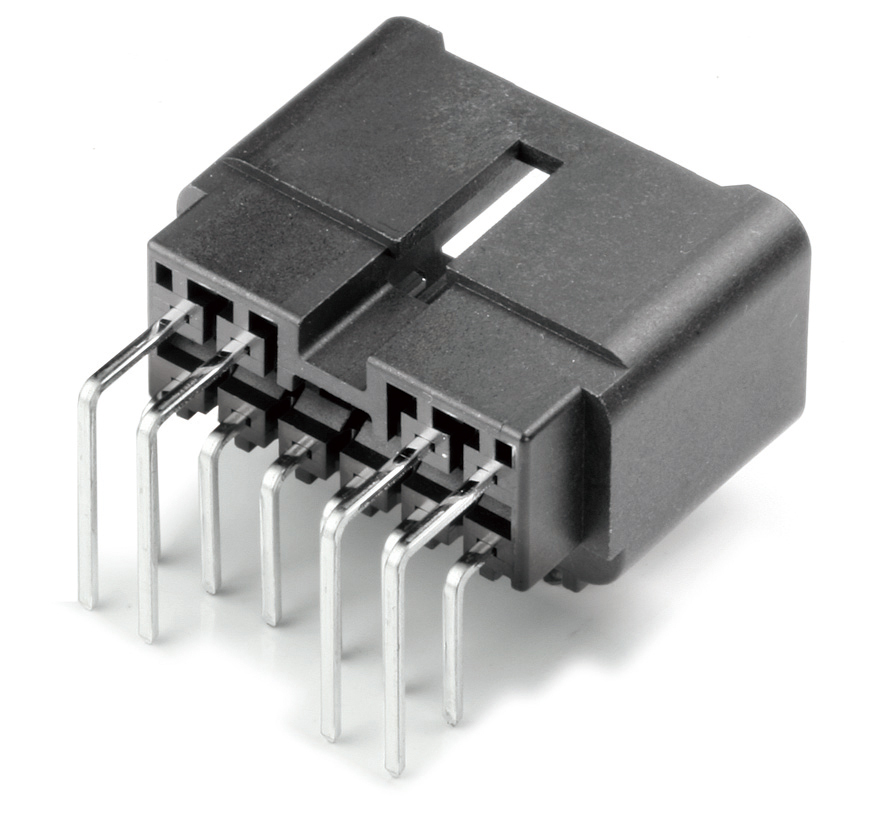

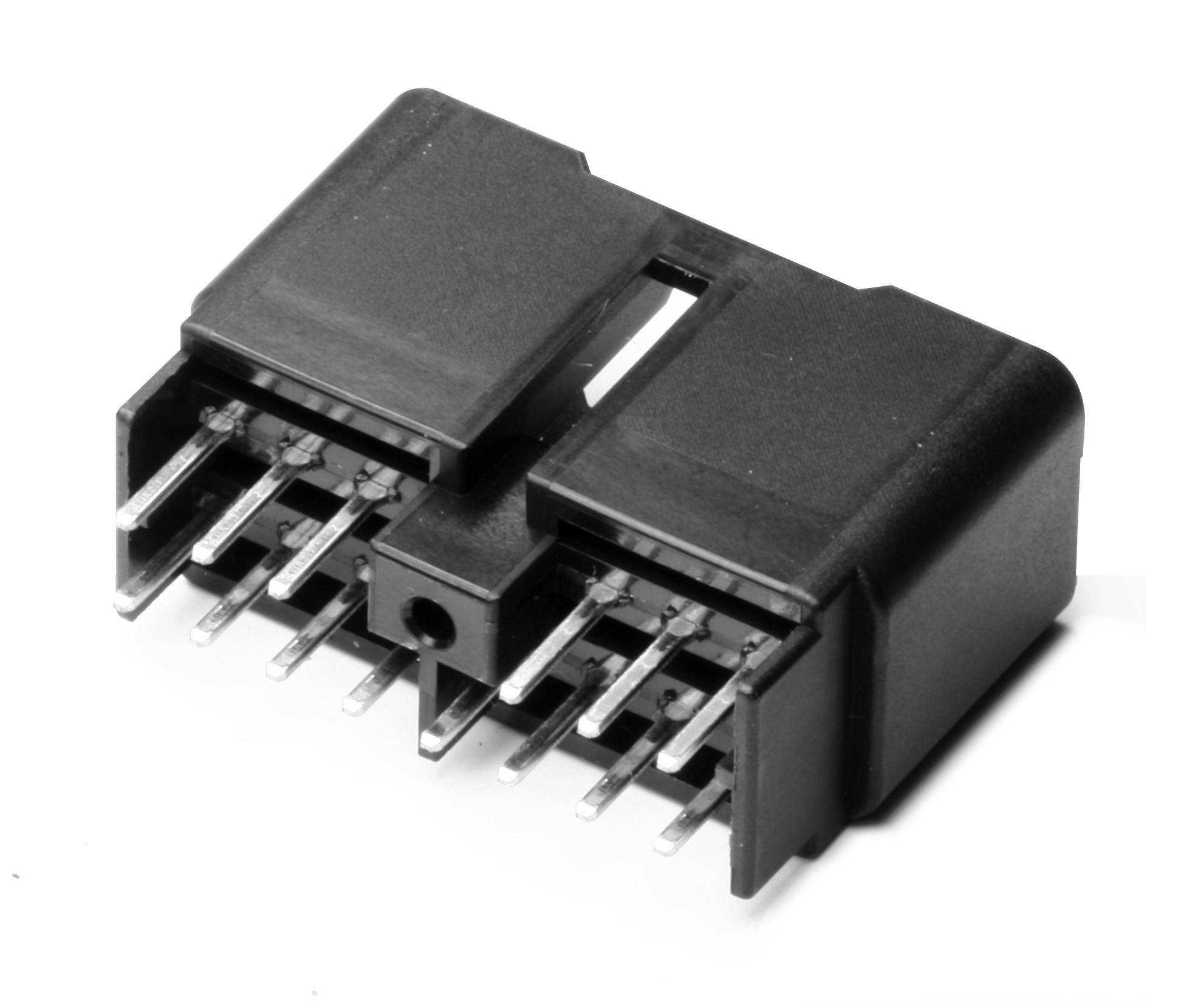

PCB Connector
- Automotive Connectors > PCB Connector
- Part Number :
- MG645905-5
- Series :
- 090 II SERIES
General Feature
- Series
- 090 II SERIES
- Dimensions
- 28.5*22.4*20.1
Physical Feature
- Connector Type
- DIP-HZT
- Color
- Black
- Number of Poles
- 10
- Mating Connector
- MG651056
- Pitch(mm)
- 4
- Mating Tab Width(in)
- .090
Electrical Feature
- Insulation Resistance
- DC 500V 100MΩ MIN
- Contact Resistance
- 3mΩ MAX (Initial)
- Terminal Transmits(A)
- 10
