PCB Connector
- Automotive Connectors > PCB Connector

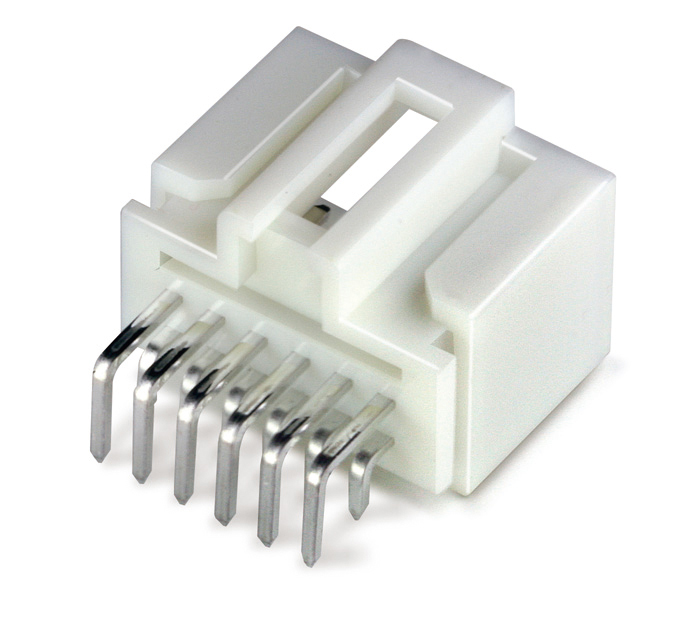

- Part Number :
- MG645906
- Series :
- 040 SERIES
General Feature
- Series
- 040 SERIES

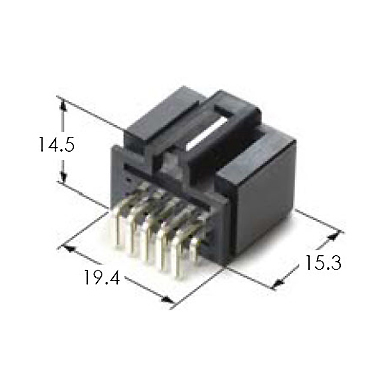

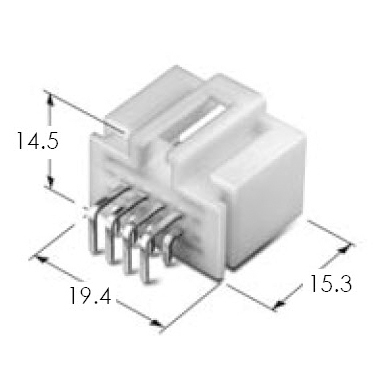

- Dimensions
- 19.4*15.3*14.5
Physical Feature
- Connector Type
- DIP-HZT
- Color
- Natural
- Number of Poles
- 12
- Pitch(mm)
- 2.54
- Mating Tab Width(in)
- .040
Electrical Feature
- Insulation Resistance
- DC 500V 100MΩ MIN
- Contact Resistance
- 5mΩ MAX (Initial)
- Terminal Transmits(A)
- 5
