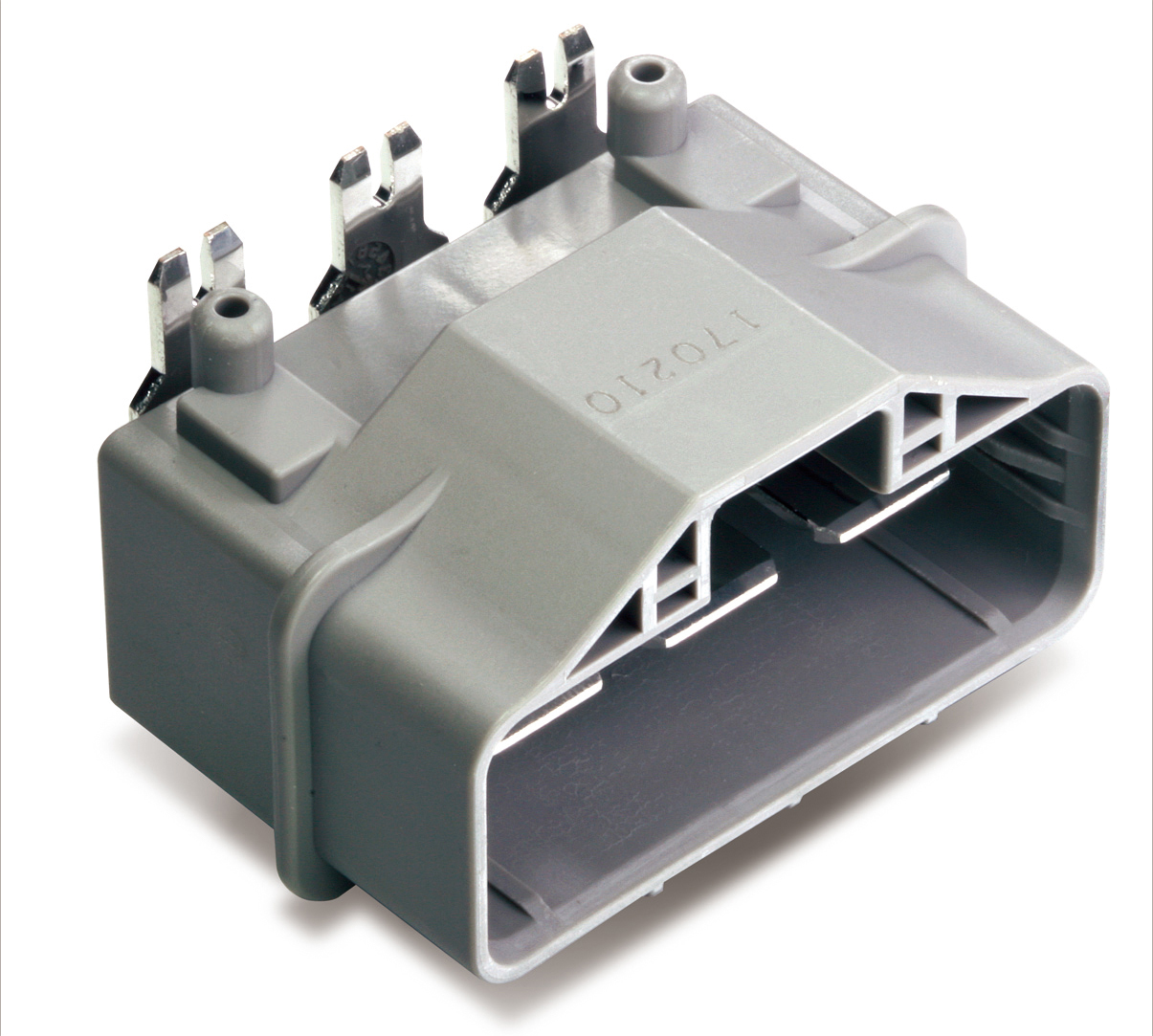

PCB Connector
- Automotive Connectors > PCB Connector
- Part Number :
- MG646010-40
- Series :
- 375 SERIES
General Feature
- Series
- 375 SERIES
- Dimensions
- 48.9*30.7*28.1
Physical Feature
- Connector Type
- DIP-HZT
- Color
- Dark Gray
- Number of Poles
- 3
- Pitch(mm)
- 12.5
- Mating Tab Width(in)
- .375
Electrical Feature
- Insulation Resistance
- DC 500V 100MΩ MIN
- Contact Resistance
- 2mΩ MAX (Initial)
- Terminal Transmits(A)
- 60
