Lamp Connector
- Automotive Connectors > Lighting Connector > Lamp Connector

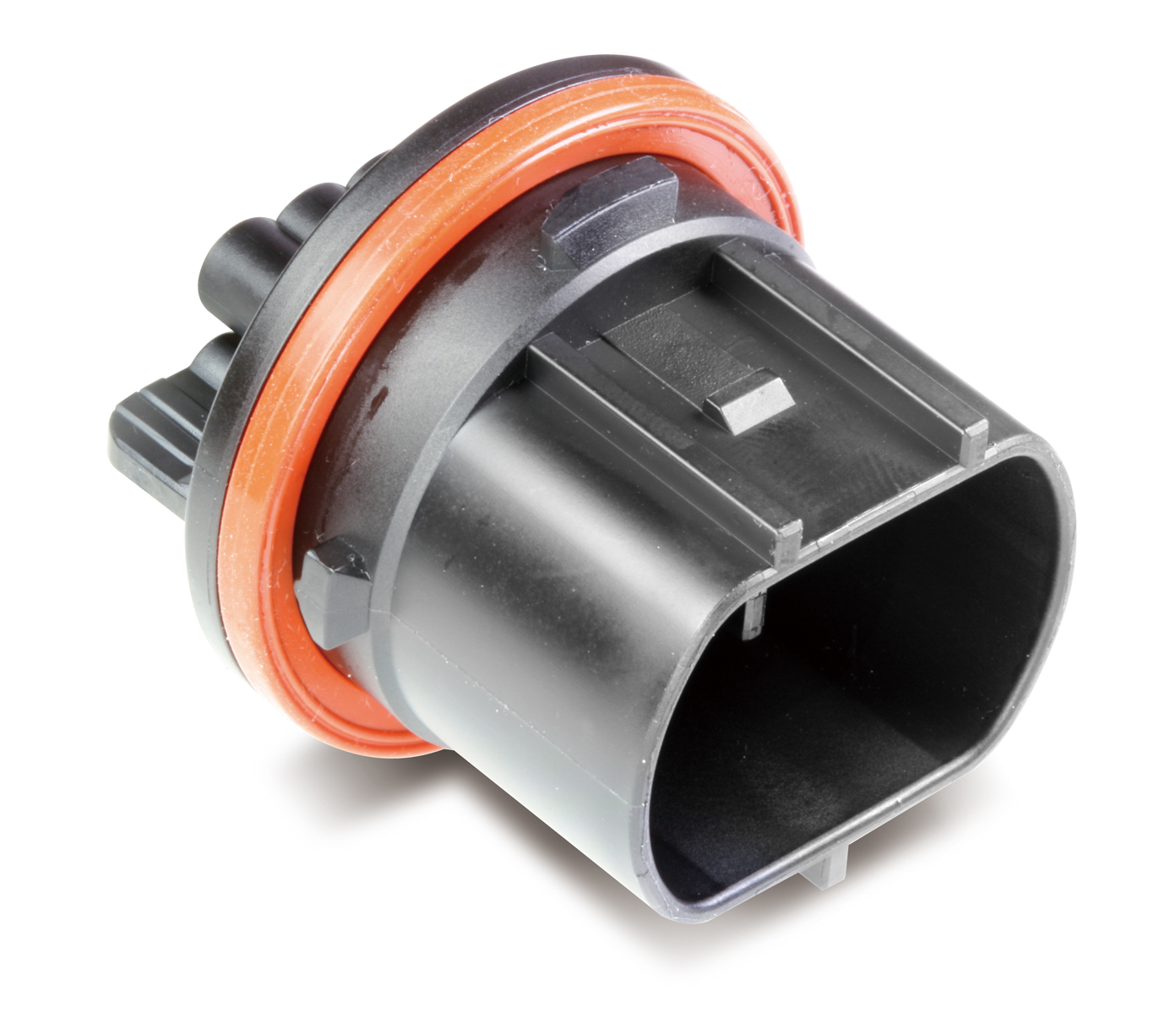

- Part Number :
- MG646012-5
- Series :
- HYBRID SERIES
General Feature
- Series
- HYBRID SERIES
- Dimensions
- 37.0*38.8*37.0
Physical Feature
- Number of Poles
- 14
- Color
- Black
- Sealed
- YES
- Mating Terminal
- ST741375-3, ST741376-3, ST741378-3, ST741379-3
- TPA
- YES

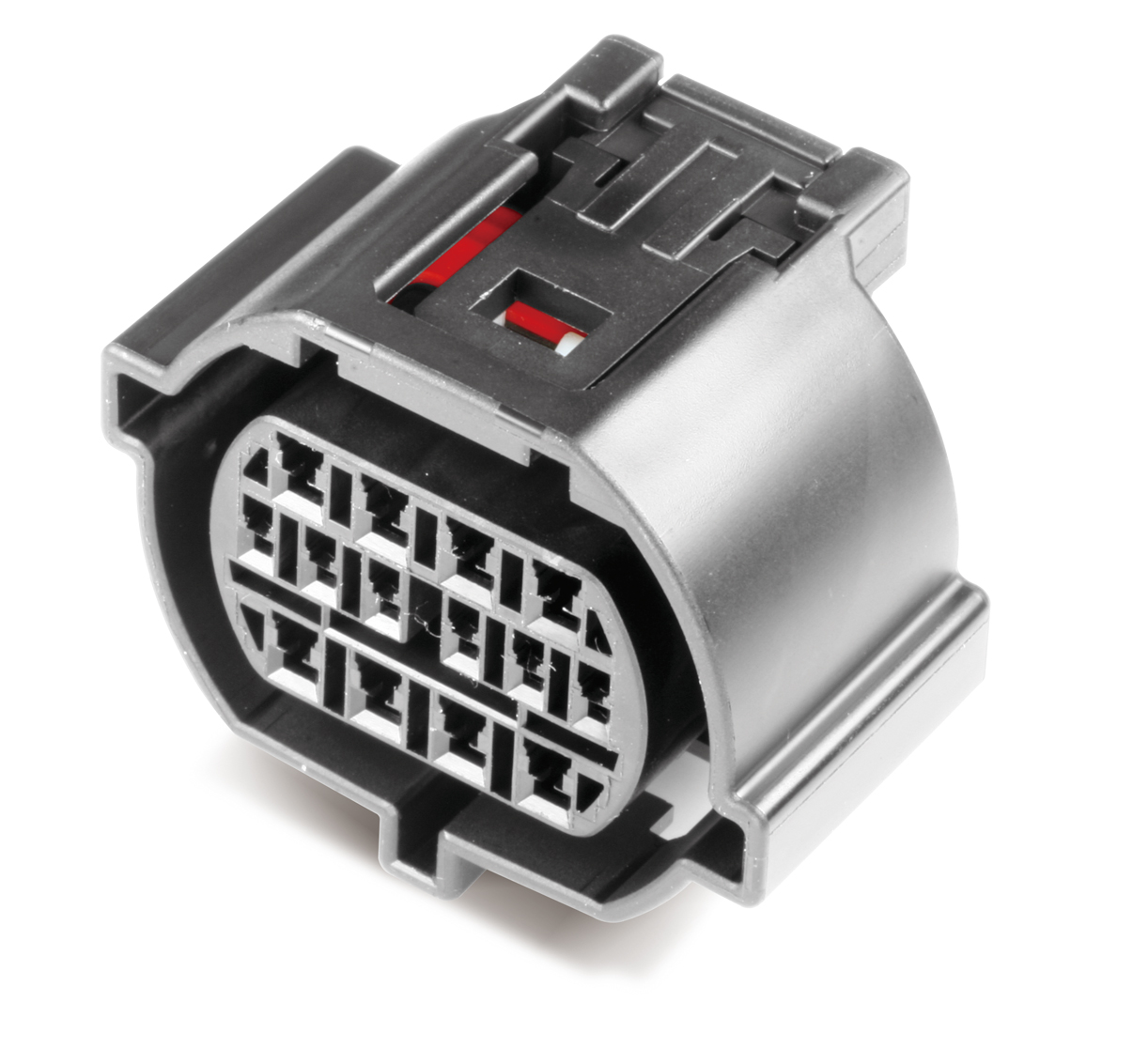

- Mating Connector
- MG656862-5
Electrical Feature
- Wire Range
- C025:AESSXF0.22~0.5,060:AESSXF0.3~1.25
- Insulation Resistance
- C025:DC 500V 100MΩ Min,C060:DC 500V 100MΩ Min
- Contact Resistance
- C025:10mΩ Max,C060:5mΩ Max
Mating Product
/
