PCB Connector

Electronic Parts > Home Appliance Connector > PCB Connector

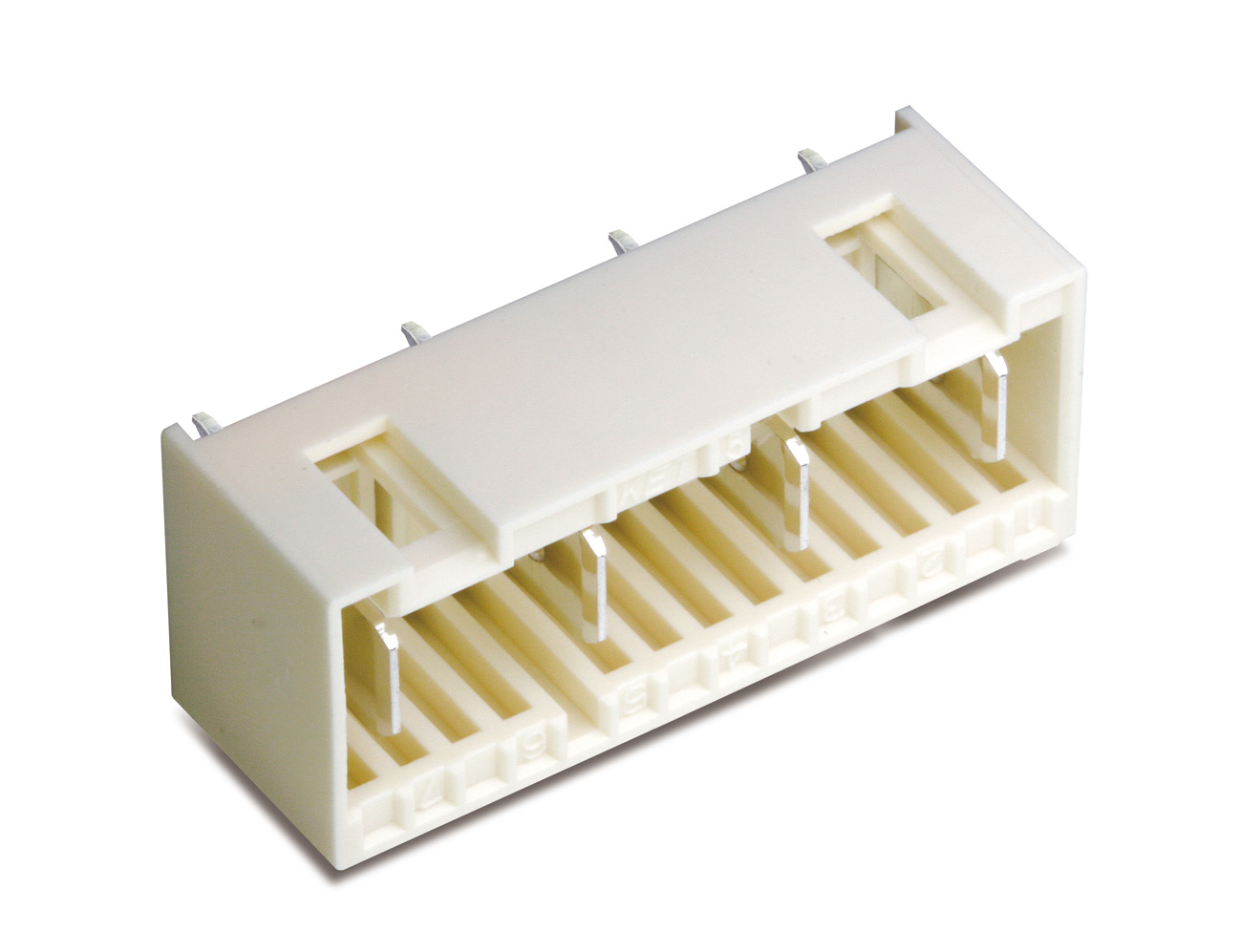

250 7M PCB ASSY

250 7M PCB ASSY

Part Number :: MG646067-007

Series :: 250 SERIES

첨부파일

기술 문의 품질 문의 구매 문의

General Feature

Series: 250 SERIES

Dimensions: 12.8*37.3*14.9

Physical Feature

Number of Poles: 7

Sealed: NO

Pitch(mm): 5

Color: Natural

GWIT: GWIT(750˚)

Operating Temperature: -40℃ ~ 105℃

Mating Tab Width(in): .250

Flame Rating: V0

Electrical Feature

Terminal Transmits(A): 15

Rated Voltage: 300v,(ac/dc)

Series Product

/
