PCB Connector
- Automotive Connectors > PCB Connector
- Part Number :
- MG646069-7
- Series :
- 025 II SERIES
General Feature
- Series
- 025 II SERIES
- Dimensions
- 32.6*21.0*16.2
Physical Feature
- Connector Type
- SMD-VRT
- Color
- Brown
- Number of Poles
- 16

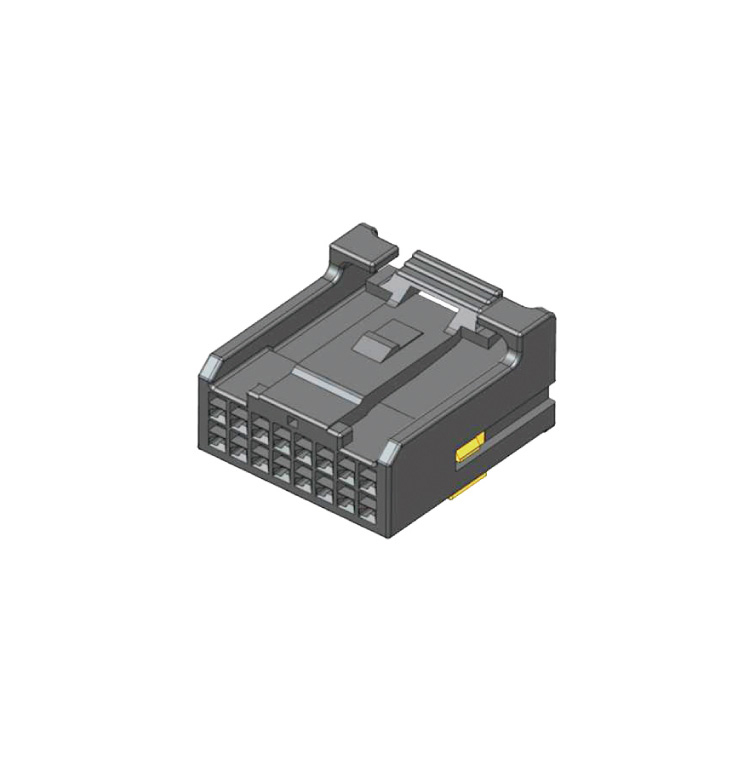

- Mating Connector
- MG656934
- Pitch(mm)
- 2.2
- Mating Tab Width(in)
- .025
Electrical Feature
- Insulation Resistance
- DC 500V 100M Ω MIN
- Contact Resistance
- 10mΩ Max(Initial)
- Terminal Transmits(A)
- 5
