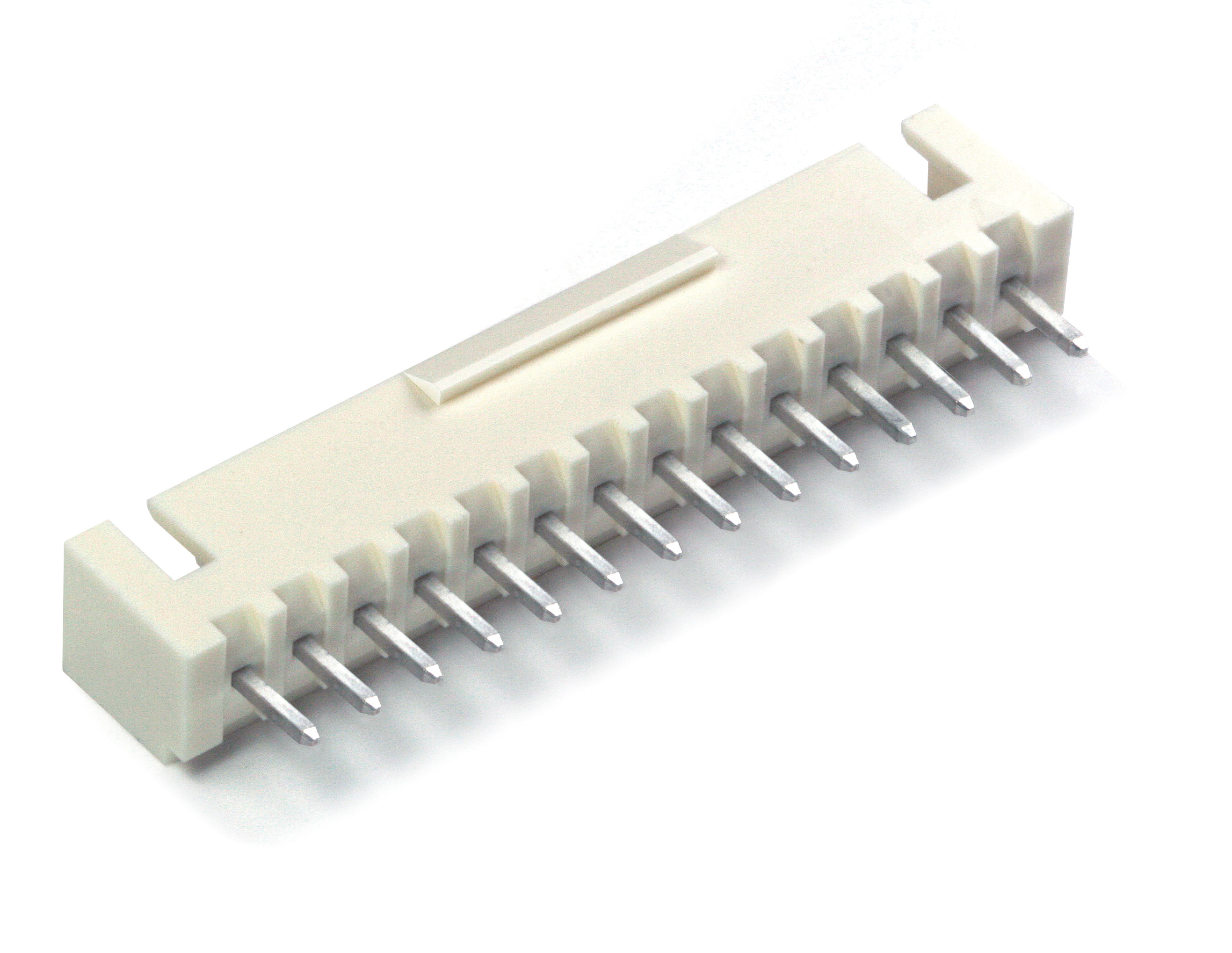

PCB Connector
- Electronic Parts > Home Appliance Connector > PCB Connector
- Part Number :
- MG646077-014
- Series :
- Home appliance Connectors SERIES (ETC)
General Feature
- Series
- Home appliance Connectors SERIES (ETC)
- Dimensions
- 37.4*7.0*5.8
Physical Feature
- Number of Poles
- 14
- Sealed
- NO
- Pitch(mm)
- 2.5
- Color
- Natural
- GWIT
- GWIT(750˚)
- Operating Temperature
- -40℃~+105℃
- Mating Tab Width(in)
- .025
- Flame Rating
- V0
Electrical Feature
- Terminal Transmits(A)
- 5
- Rated Voltage
- 250v (ac/dc)
