Wire To Wire Connector

Automotive Connectors > Wire To Wire Connector

025060110 FAKRA_FRONT_DOOR_45M ASSY

025060110 FAKRA_FRONT_DOOR_45M ASSY

Part Number :: MG646085-5

Series :: DOOR CONN'T SERIES

첨부파일

기술 문의 품질 문의 구매 문의

General Feature

Series: DOOR CONN'T SERIES

Dimensions: 83.3*49.4*38.8

Material Type: PBT

Physical Feature

Sealed: NO

Color: Black

Primary Locking Type: HSG Lance

TPA: YES

Number of Poles: 45

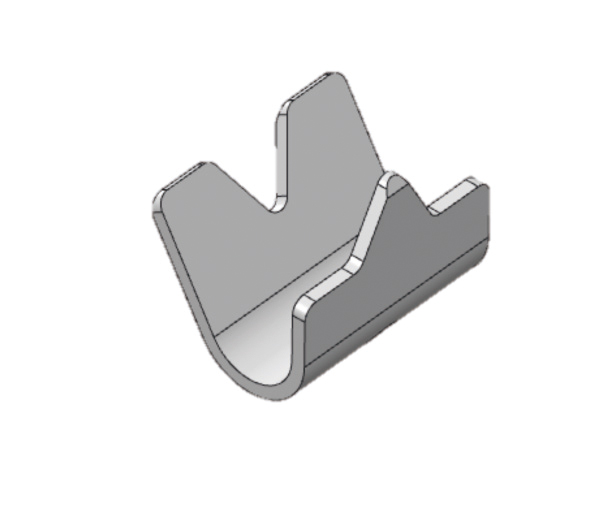

Mating Terminal: ST741360-3, ST741361-3, ST741362-3, ST741363-3, ST741364-3, ST741367-3, ST741368-3, ST741369-3, kr30201-20, kr30301-20, kr00404-20, kr30202-20, kr30301-20, kr00406-20

Mating Connector: MG656918-5

Electrical Feature

Wire Range: C025:CHFUS0.22,AVSS0.3~0.5,C060:CHFUS0.22,AVSS0.3~0.5,N110:AVSS0.85~1.25,AVSSXF1.0

Insulation Resistance: DC 500V 100MΩ Min

Contact Resistance: 025:10mΩ,060:5mΩ,110:3mΩ

Series Product

/

Mating Product

/
