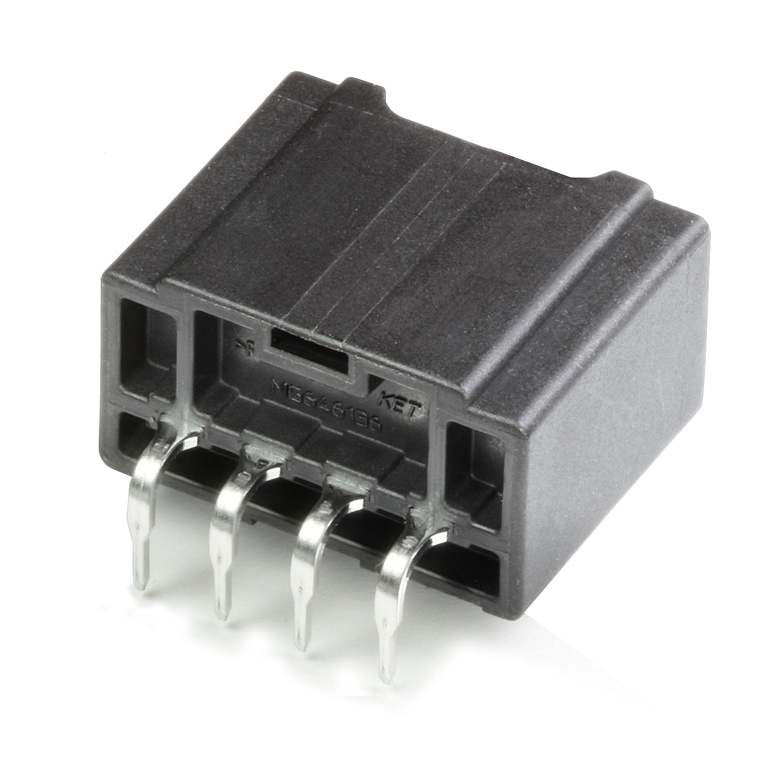

110 4M PCB ASSY (HZT)

110 4M PCB ASSY (HZT)

Part Number :: MG646136-5

Series :: 110 SERIES

첨부파일

2D PDF

기술 문의 품질 문의 구매 문의

General Feature

Series: 110 SERIES

Dimensions: 28.2*27.5*19.4

Physical Feature

Connector Type: DIP-HZT

Color: Black

Number of Poles: 4

Mating Connector: MG655778-11

Pitch(mm): 5

Mating Tab Width(in): .110

Electrical Feature

Insulation Resistance: DC 500V 100MΩ MIN

Contact Resistance: 3mΩ MAX(Initial)

Terminal Transmits(A): 15

Series Product

/

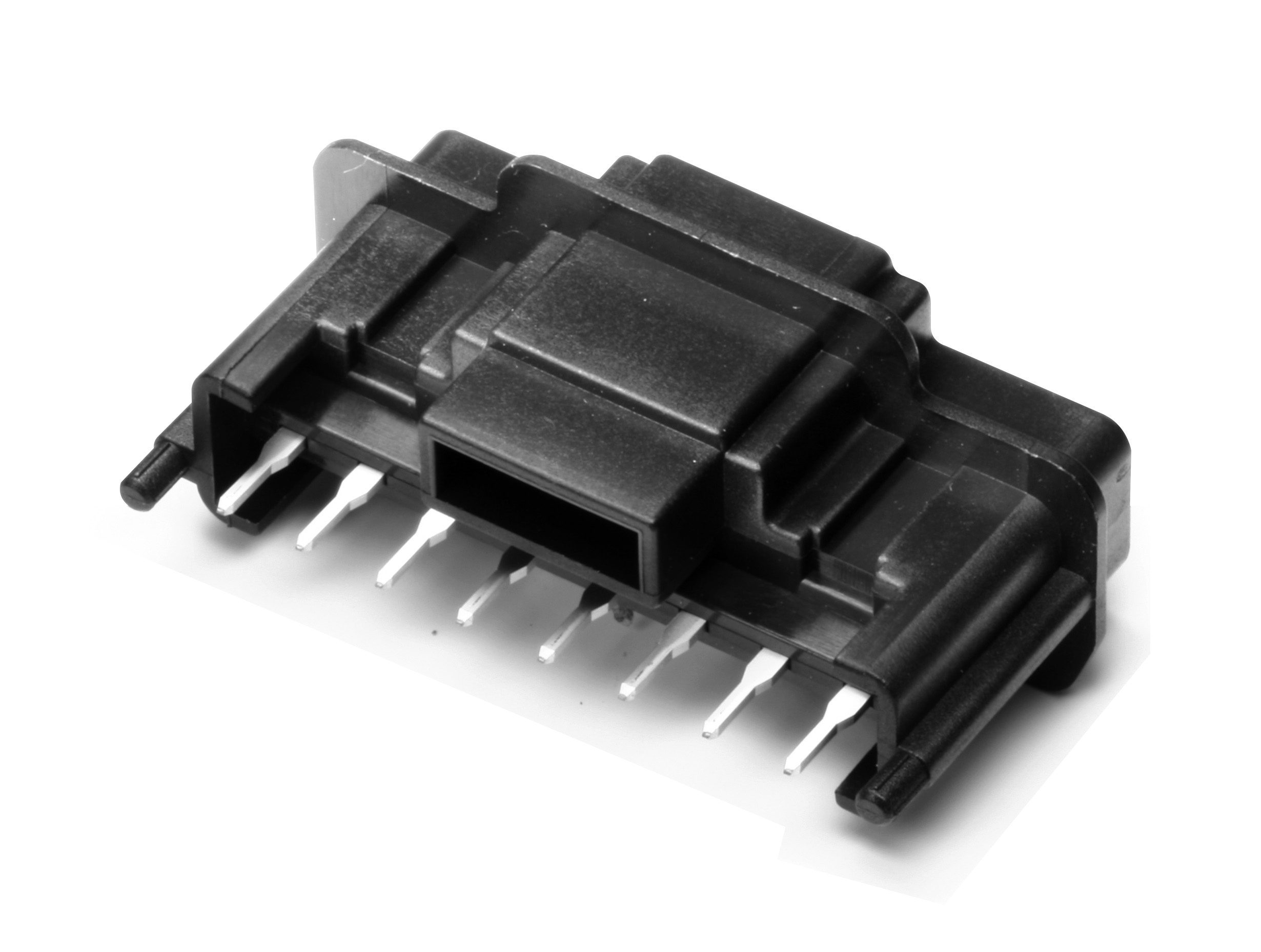

110 8M PCB ASSY(VRT)
