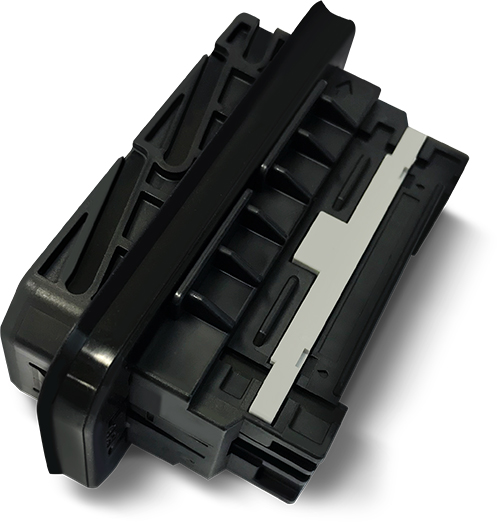

025060110 FRONT DOOR 59M ASSY
025060110 FRONT DOOR 59M ASSY
Part Number :
MG646180-5
Series :
DOOR CONN'T SERIES
첨부파일
General Feature
Series
DOOR CONN'T SERIES
Dimensions
79.40*39.00*109.50
Material Type
PBT
Physical Feature
Sealed
NO
Color
Black
Primary Locking Type
HSG Lance
TPA
YES
Number of Poles
59
Mating Terminal

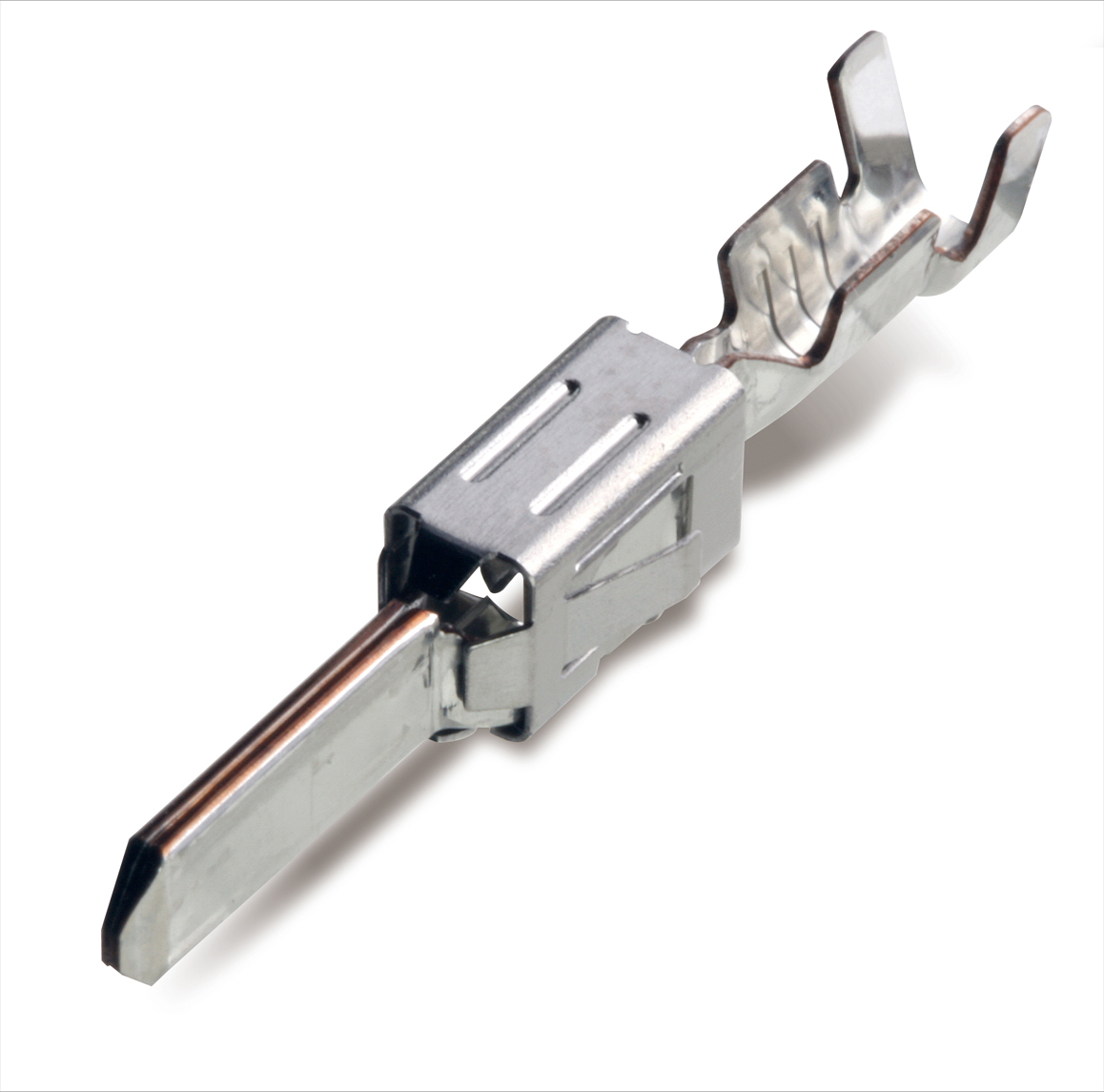

ST741360-7, ST741361-7, ST741362-7, ST741363-7, ST741364-7, ST741367-3, ST741368-3, ST741369-3

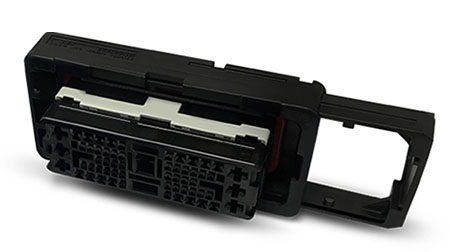

Mating Connector
MG657002-5
Electrical Feature
Wire Range
0.13~0.5/0.3~0.85/0.3~2.0
Insulation Resistance
DC 500V 100MΩ(Initial)/DC 500V 100MΩ(Initial)/DC 500V 100MΩ(Initial)
Contact Resistance
10/5/3mΩ MAX(Initial)
Terminal Transmits(A)
5/6/10
