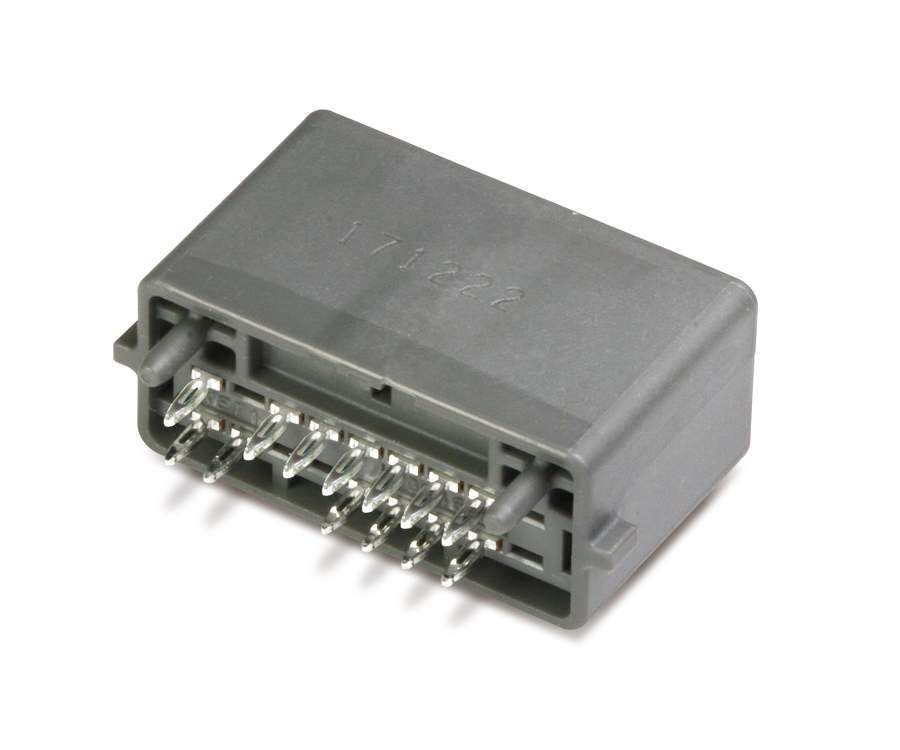

PCB Connector
- Automotive Connectors > PCB Connector
- Part Number :
- MG646268-5
- Series :
- 025 SERIES
- Series
- 025 SERIES
- Dimensions
- 21.6*13.2*13.3
- Connector Type
- SMD-VRT
- Color
- Black
- Number of Poles
- 12

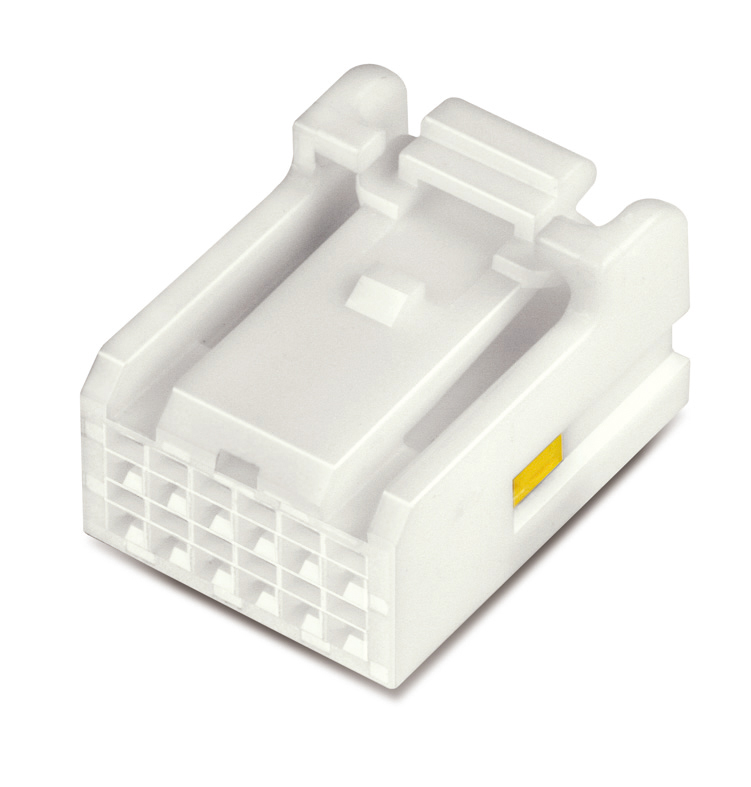

- Mating Connector
- MG656913
- Pitch(mm)
- 2.2
- Mating Tab Width(in)
- .025
- Insulation Resistance
- DC 500V 100MΩ Min
- Contact Resistance
- 5mΩ Max(Initial)
- Terminal Transmits(A)
- 10
-
