PCB Connector
- Automotive Connectors > PCB Connector

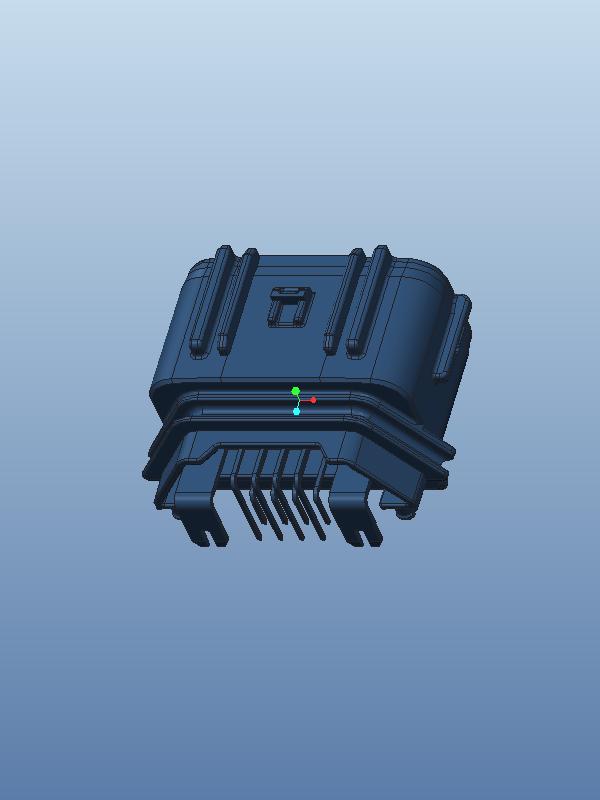

- Part Number :
- MG646284-5
- Series :
- HYBRID SERIES
- Series
- HYBRID SERIES
- Dimensions
- 47.4*27.0*34.7
- Connector Type
- DIP-HZT
- Color
- Black
- Number of Poles
- 10
- Mating Connector
- MG657064-5
- Pitch(mm)
- 3
- Mating Tab Width(in)
- .025 / .250
- Insulation Resistance
- DC 500V 100MΩ Min
- Contact Resistance
- 10mΩ MAX (Initial)
- Terminal Transmits(A)
- 5/25
-
