Wire To Wire Connector
- Automotive Connectors > Wire To Wire Connector
- Part Number :
- MG651747-5
- Series :
- 187 SERIES
General Feature
- Series
- 187 SERIES

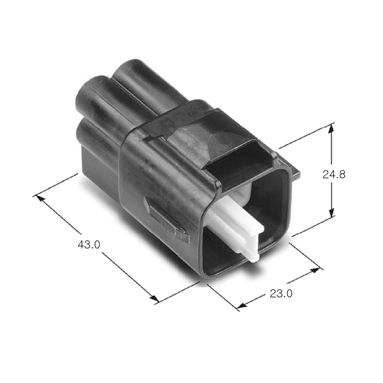

- Dimensions
- 43.0*23.0*24.8
Physical Feature
- Sealed
- YES
- Color
- Natural
- Primary Locking Type
- HSG Lance
- TPA
- YES
- Number of Poles
- 4
- Mating Terminal
- ST740734-3, ST740735-3, ST740736-3
- Pitch(mm)
- 8.2
- Mating Tab Width(in)
- .187
Electrical Feature
- Wire Range
- 187IIWP:AVSS 0.3~0.5,AVS 0.3~0.85,AVSS 1.25~2.0,AVS 3.0
- Insulation Resistance
- DC 500V 100MΩ MIN
- Contact Resistance
- 3mΩ MAX
- Terminal Transmits(A)
- 20
